User manual Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA

Operating instructions and pdf manual for use - Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA User manual, User manual Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA, Novation, MiniNova, 37-Mini-Key, Compact, Synthesizer, M


User manual for Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

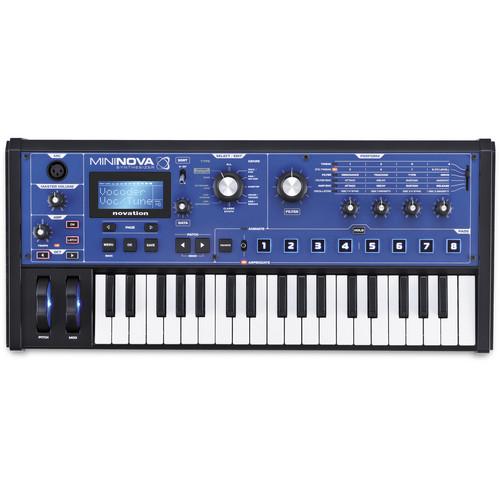

Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA
  • Manufacturer: Novation
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Synthesizer Keyboards
  • Safety instructions
  • Startup and operation of the synthesizer keyboards
  • Tips for setting up your Novation
  • Settings and expert assistance
  • Contact Novation service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA, which address similar problems with connecting and setting up Synthesizer Keyboards Novation.



User manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA

The user manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

The MiniNova 37-Mini-Key Compact Synthesizer by Novation has the same sound engine as the larger model, UltraNova. It includes 256 onboard sounds that you can tweak with five knobs, or totally warp with eight "animate" buttons. It has polyphony up to 18 voices with as many as five synth effects on each sound. MiniNova also has onboard VocalTune and classic vocoder effects, so you can recreate iconic vocal sounds from hip hop, urban and electronic music.

MiniNova has a powerful sound engine for a micro synth. In addition to its 256 onboard sounds, it has space to save 128 of your own sounds. You can quickly search for patches by selecting the style, or the type of sound. MiniNova has 14 conventional waveforms to choose from, 36 wavetables and 20 digital waveforms. Each of the 3 oscillators has density/detune, virtual sync, and an additional low-pass filter called "hardness." There are 14 filter types, 6 envelope generators, 3 LFOs and 20 modulation slots where you can link synth modules together. MiniNova can also add up to 5 effects to each sound; including distortion, reverb, chorus/phase, delay, compressor, EQ and Novation's unique gator effect.

The MiniNova includes a gooseneck microphone, taking its vocal effects one step further. In addition to VocalTune and the 12-band vocoder, the mic input can be routed through the effects engine. The onboard 1/4" input can do the same with an instrument.

An onboard USB port and MIDI I/O allows MiniNova to connect to a laptop or control another keyboard / sound module. Editing sounds can be overwhelming, so Novation bundled the MiniNova Editor software, giving you visual access to the synth engine. The software works as a plug-in within your DAW and allows full editing of your MiniNova hardware patches. MiniNova also includes Patch Librarian software to enable unlimited patch storage on your computer.
If you own a Novation synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVADownload user manual for Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA
(PDF file, 8.96 MB)
Additional parameters of the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA:
Specifications
    Bundle Software
    • MiniNova Software Editor
    • Patch Librarian
    • Ableton Live Lite
    • Novation Bass Station softsynth
    • Loopmasters sample pack (1GB)
    Keyboard 37 note keyboard with velocity
    Polyphony Up to 18 note polyphony (dynamic voicing)
    Multitimbral No, mono-timbral
    Per Patch 3 x oscillators
    1 x noise generator
    2 x ring modulators

    Waveforms include:
    Square, sine, tri, sawtooth, pulse, 9 x saw:pulse combinations
    20 x digital waveforms
    36 x wavetables
    Filters 2 filters per patch:
    • low pass no resonance 6dB per octave
    • low pass 12dB
    • low pass 18dB
    • low pass 24dB
    • band pass 6:6
    • band pass 6:12
    • band pass 12:6
    • band pass 6:18
    • band pass 18:6
    • band pass 12:12
    • high pass no resonance 6dB per octave
    • high pass 12dB
    • high pass 18dB
    • high pass 24dB
    Modulation 20 modulation slots per patch:
    • 6 x envelope generators
    • 3 x LFOs
    • Aftertouch
    • Velocity
    • Key scaling/track
    • Mod wheel
    • Expression pedal
    Destinations Total of 66 destinations:
    • Oscillator pitch, pulse width, wavetable index, level and sync
    • Filter cutoff, resonance, envelope settings
    • Effects parameters and send levels
    • Recursive modulation (modulating modulation sources themselves)
    Effects 5 effects slots per patch:
    • Distortion - up to 2 instances
    • Compressor - up to 2 instances
    • Chorus/Phase - up to 4 instances
    • Delay - up to 2 instances
    • Reverb - up to 2 instances
    • Gator
    • EQ
    Miscellaneous
    • VocalTune
    • 12 band vocoder
    • Arpeggiator - 33 patterns
    • Realtime Arp rhythm editing function
    • Chord function - lock up to 10 notes
    Presets Ships with 256 factory patches
    Stores up to 384 on hardware
    Controllers
    • Pitch wheel (LED lit)
    • Modulation wheel (LED lit)
    • 4 x smooth edit/performance pots
    • 1 x large smooth filter pot
    • 1 x six position parameter selector switch
    • 6 x parameter indicator LEDs
    • 8 x three-colour, back-lit animate/arpeggiator/favorite patch-select buttons
    • 2 x animate/arpeggiate LED indicators
    • 1 x back-lit 'hold' button
    • 1 x animate/arpeggiator/favorite patch toggle switch
    • 1 x 'favorite' patch select button
    • 1 x arpeggiator tempo control pot
    • 1 x arpeggiator tempo indicator LED
    • 2 x back-lit arpeggiator control encoders
    • 2 x back-lit octave select buttons
    Inputs 1 x XLR mic
    1 x 1/4" TRS
    Outputs 2 x 1/4" TRS
    Headphone Output 1 x 1/4" TRS stereo
    USB Port 1 x USB-B
    MIDI Connectors In / Out
    Other Connectors 1/4" Sustain pedal
    Kensington Lock
    Display 16 character custom LCD
    Power Supply 9 V, included
    Dimensions (WxDxH) 22.04 x 9.84 x 2.95" (560 x 250 x 75 mm)
    Weight 5.55 lb (2.52 kg)
    Packaging Info
    Package Weight 8.85 lb
    Box Dimensions (LxWxH) 24.8 x 13.7 x 4.8"
    Novation Mininova Demo
    The user manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA can be downloaded in .pdf format if it did not come with your new synthesizer keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Novation users keep a unique electronic library for Novation synthesizer keyboardss, where you can use our link to download the user manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA.

    The user manual lists all of the functions of the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA, all the basic and advanced features and tells you how to use the synthesizer keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Novation service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Novation MiniNova 37-Mini-Key Compact Synthesizer MININOVA. User manuals are also available on the Novation website under Pro Audio - Musical Instruments - Synthesizer Keyboards.
