User manual for the NZXT Phantom 820 Full-Tower Case (Glossy White) CA-PH820W1
The user manual for the NZXT Phantom 820 Full-Tower Case (Glossy White) CA-PH820W1 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Desktop Computer Cases.

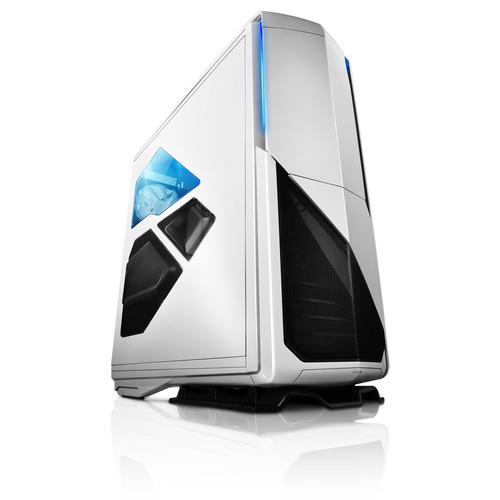

The NZXT Phantom 820 Full-Tower Case features a glossy white exterior and provides enough space to house extended-ATX, XL-ATX, ATX, micro-ATX, and mini-ITX motherboards. Corsair has designed this case to support up to four 5.25" and six 3.5" drives inside its bays. You may install graphics cards up to 13.1" long or remove a drive cage to accommodate larger-sized cards. For cooling your components, one 140mm fan along with three 200mm fans provide high airflow while remaining quiet. There's also an integrated 4-channel digital fan controller that controls the cooling performance of the fans. Furthermore, Corsair has outfitted this case with an adjustable interior pivot 120/140mm fan slot for directional airflow and mounting locations that can hold additional fans as well as liquid cooling solutions.
The Phantom is outfitted with other features such as integrated HUE LEDs for illuminating the interior along with the exterior of this case. These LEDs can be customized with various colors and turned on or off. To help you see the rear ports, a white LED offers visibility in darken environments. Other notable features include 1.4" cable management spaces along with a windowed side panel so you can show off your internal components. Additionally, the 820 case sports two USB 3.0 and four USB 2.0 ports as well as a combo audio jack and SD card reader for easy access.
If you own a NZXT desktop computer cases and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the NZXT Phantom 820 Full-Tower Case (Glossy White) CA-PH820W1 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NZXT Phantom 820 Full-Tower Case (Glossy White) CA-PH820W1:
Specifications
Drive Bays
4 x external 5.25" 6 x internal 3.5" Screw-less rail design
Cooling System
Top: 2 x 200 mm (one included) or 2 x 140 mm or 3 x 120 mm Front: 1 x 200 mm (included) Bottom: 2 x 120/140 mm Rear: 1 x 140 mm (included) or 1 x 120 mm height adjustable Side: 1 x 200 mm (included) Pivot: 1 x 140 mm or 1 x 120 mm internal pivot fan 4-channel 15 W digital fan controller
Filters
Filters are installed on the front, top, bottom front, bottom rear, and side
Radiator Support
Top: 2 x 140 mm or 3 x 120 mm Rear: 1 x 120/140 mm Bottom: 2 x 120/140 mm Pivot: 1 x 120/140mm
Clearance
CPU Cooler: 6.0" / 153.0 mm (fan removed 7.2" / 183.0 mm) Video: 13.1" / 333.0 mm Cable Management: 1.3" / 34.0 mm
Material of Construction
SECC Steel, ABS Plastic
Motherboard Support
E-ATX, XL-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots
9
Ports
1 x combo audio 4 x USB 2.0 2 x USB 3.0
Memory Card Reader
SD
LED
Integrated HUE lighting system Rear I/O white light
