User manual Oben BA-117 Single Lever Ball Head BA-117

Operating instructions and pdf manual for use - Oben BA-117 Single Lever Ball Head BA-117 User manual, User manual Oben BA-117 Single Lever Ball Head BA-117, Oben, BA-117, Single, Lever, Ball, Head, BA-117, Video


User manual for Oben BA-117 Single Lever Ball Head BA-117

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Oben  BA-117 Single Lever Ball Head BA-117
  • Manufacturer: Oben
  • Basic description and contents of package
  • Product classification: Photography - Tripods & Support - Tripod Heads
  • Safety instructions
  • Startup and operation of the tripod heads
  • Tips for setting up your Oben
  • Settings and expert assistance
  • Contact Oben service
  • Troubleshooting
  • Warranty information
  • Price: 70 USD
Oben  BA-117 Single Lever Ball Head BA-117 Oben  BA-117 Single Lever Ball Head BA-117 Oben  BA-117 Single Lever Ball Head BA-117 Oben  BA-117 Single Lever Ball Head BA-117 Oben  BA-117 Single Lever Ball Head BA-117
Click to enlarge image

We recommend checking out our discussion threads on the Oben BA-117 Single Lever Ball Head BA-117, which address similar problems with connecting and setting up Tripod Heads Oben.



User manual for the Oben BA-117 Single Lever Ball Head BA-117

The user manual for the Oben BA-117 Single Lever Ball Head BA-117 provides necessary instructions for the proper use of the product Photography - Tripods & Support - Tripod Heads.

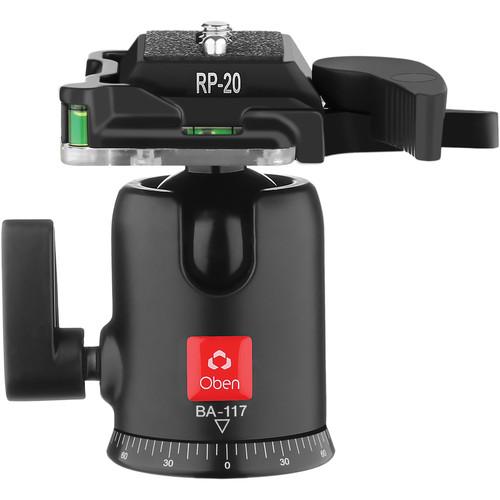

The BA-117 Single Lever Ball Head from Oben is a simple ball head with one locking knob to control all motion. The knob allows you to unlock the ball so that you can quickly orient your camera properly, retighten the knob, and return to shooting. This enables fast setup changes, and frees you to keep a finger on the trigger while you're making a quick adjustment to the head's orientation. The head has a 90° notch which facilitates shooting in portrait orientation. One bull's eye and three tubular bubble levels ensure your camera is level on both the horizontal and vertical axes.

The included quick-release plate has a retractable video pin, and attaches to your camera via its standard 1/4"-20 screw. With your camera attached to the quick-release plate, it easily snaps and locks into place on the ball head, and a safety lock on the release lever prevents it from being accidentally released.
If you own a Oben tripod heads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Oben BA-117 Single Lever Ball Head BA-117 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Oben  BA-117 Single Lever Ball Head BA-117Download user manual for Oben BA-117 Single Lever Ball Head BA-117
(PDF file, 2.38 MB)
Additional parameters of the Oben BA-117 Single Lever Ball Head BA-117:
Specifications
    Load Capacity 17.6 lb (8.0kg)
    Ball Sphere Diameter 38 mm
    Quick Release Yes
    Spirit Level 1 x Bull's Eye
    3 x Tubular
    Tension Control No
    Separate Panning Lock No
    Tripod Mount Thread Size 3/8"-16
    Height 3.6" (9.1 cm)
    Maximum Diameter 2.0in/ 5.0cm
    Weight 14.1 oz (400.0 g)
    Packaging Info
    Package Weight 1.5 lb
    Box Dimensions (LxWxH) 5.0 x 5.0 x 4.0"
    The user manual for the Oben BA-117 Single Lever Ball Head BA-117 can be downloaded in .pdf format if it did not come with your new tripod heads, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Oben users keep a unique electronic library for Oben tripod headss, where you can use our link to download the user manual for the Oben BA-117 Single Lever Ball Head BA-117.

    The user manual lists all of the functions of the Oben BA-117 Single Lever Ball Head BA-117, all the basic and advanced features and tells you how to use the tripod heads. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Oben service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Oben BA-117 Single Lever Ball Head BA-117. User manuals are also available on the Oben website under Photography - Tripods & Support - Tripod Heads.
