User manual OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002

Operating instructions and pdf manual for use - OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002 User manual, User manual OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002, OConnor, ULTIMATE, 2575D, Professional, Fluid, Head, C1234


User manual for OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002

OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002
  • Manufacturer: OConnor
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads
  • Safety instructions
  • Startup and operation of the video tripod heads
  • Tips for setting up your OConnor
  • Settings and expert assistance
  • Contact OConnor service
  • Troubleshooting
  • Warranty information
  • Price: 14 USD
We recommend checking out our discussion threads on the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002, which address similar problems with connecting and setting up Video Tripod Heads OConnor.



User manual for the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002

The user manual for the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.

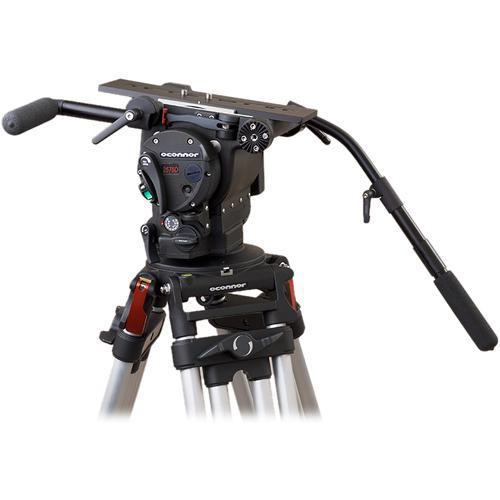

The O'Connor ULTIMATE 2575D Professional Fluid Head was specifically engineered for supporting 35mm film cameras. This head is capable of supporting camera payloads up to 133 lbs and offers handle connections on all four corners. The 2575D carries an unbeatable 5-year warranty for parts and labor as well as friendly, accessible technical support.
If you own a OConnor video tripod heads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002Download user manual for OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002
(PDF file, 1.42 MB)
Additional parameters of the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002:
Specifications
    Load Capacity 133 lbs (60.5kg) @ 4"
    105 lbs (47.7kg) @ 6"
    87 lbs (39.5kg) @ 8"
    Diameter/Thread 150mm
    Counter Balance System Continuously variable dual-axis sinusoidal
    Counter Balance Range 0 to 133 lbs (0 to 60.5kg)
    Center of Gravity 4.0 to 8.0" (10.2 to 20.3 cm)
    Quick Release/Wedge Plate 120 mm Euro Plate, Arri Dovetail Plate, Panavision Dovetail Plate
    Balance Plate Yes, Sliding
    Tilt Drag Continuously variable fluid drag
    Tilt Range +90 to -90°
    Tilt Lock Caliper brake
    Spring Loaded Counter Balance Continuously variable fluid drag
    Pan Range 360°
    Pan Lock Caliper brake
    Leveling Bubble/Illuminated Yes, Illuminated
    Temperature Range -40 to 140°F (-40 to 60°C)
    Height 8.4" (21.3cm)
    Weight 22.9 lbs (10.4kg)
    Packaging Info
    Package Weight 40.0 lb
    Box Dimensions (LxWxH) 18.0 x 16.0 x 15.0"
    The user manual for the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002 can be downloaded in .pdf format if it did not come with your new video tripod heads, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other OConnor users keep a unique electronic library for OConnor video tripod headss, where you can use our link to download the user manual for the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002.

    The user manual lists all of the functions of the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002, all the basic and advanced features and tells you how to use the video tripod heads. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from OConnor service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the OConnor ULTIMATE 2575D Professional Fluid Head C1234-0002. User manuals are also available on the OConnor website under Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.
