User manual for the Olympus OM-D E-M5 Mirrorless Micro Four Thirds V204040BU040
The user manual for the Olympus OM-D E-M5 Mirrorless Micro Four Thirds V204040BU040 provides
necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

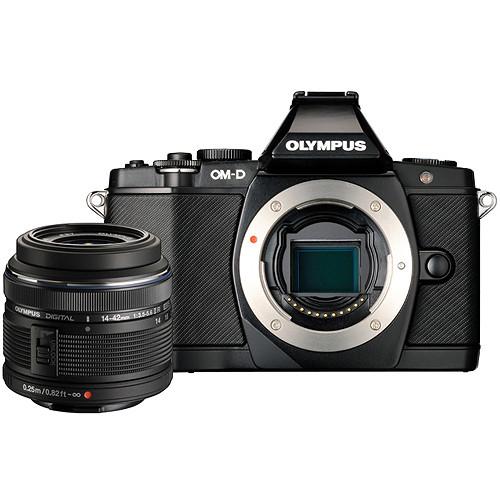

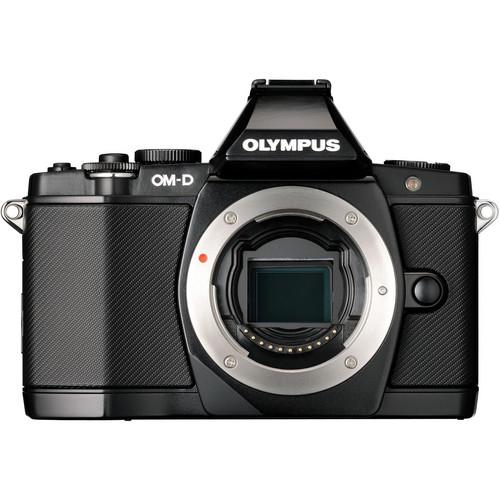

The black Olympus OM-D E-M5 Mirrorless Micro Four Thirds Digital Camera is a compact, ergonomically-designed camera featuring a 16.1MP Live MOS sensor and TruePic VI image processor to produce high-resolution still imagery and full HD 1080i/60 video with notable low-light quality and high-speed performance. The combination of these two technologies enables a high sensitivity range from ISO 200-25600 and continuous shooting up to 9 fps. The sensor also lends itself to an enhanced FAST autofocus system that utilizes a 35-area contrast-detection focusing method to efficiently acquire focus with selectable focus targets for even greater precision. Also benefitting image sharpness is in-body 5-axis image stabilization that compensates for angular shifts, yaw, pitch, and rolling camera shake.
Both a high-resolution electronic viewfinder and tilting touchscreen monitor are available for live view monitoring, image playback, and menu navigation. The EVF features a 1.44m-dot resolution and 1.15x magnification for comfortable eye-level viewing with the ability to preview image effects in real-time. Alternatively, the 3.0" 610k-dot tilting touchscreen OLED monitor suits working from high and low angles and its touchscreen design provides an intuitive means for controlling settings and navigating through the menu system. Complementing the entire feature-set, the E-M5 also sports a magnesium and aluminum alloy body construction with dust- and splash-protection to suit working in inclement conditions.

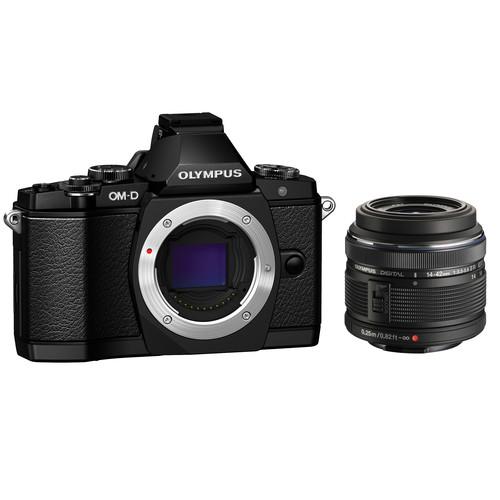

Included with the camera body is the M.ZUIKO Digital 14-42mm f/3.5-5.6 II R standard zoom lens, which provides a 28-84mm equivalent focal length range. It features quiet autofocus and zooming operation to benefit recording movies and also incorporates three aspherical elements to reduce aberrations and produce high image sharpness and clarity.
|
If you own a Olympus mirrorless system cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Olympus OM-D E-M5 Mirrorless Micro Four Thirds V204040BU040 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Olympus OM-D E-M5 Mirrorless Micro Four Thirds V204040BU040:
| Lens Mount | Micro Four Thirds | | Camera Format | Micro Four Thirds (2x Crop Factor) | | Pixels | Actual: 16.9 Megapixel
Effective: 16.1 Megapixel | | Max Resolution | 4608 x 3456 | | Aspect Ratio | 4:3 | | Sensor Type / Size | MOS, 17.3 x 13 mm | | File Formats | Still Images: JPEG, MPO, RAW
Movies: AVI, MOV, MPEG-4 AVC/H.264
Audio: WAV | | Bit Depth | 12-bit | | Dust Reduction System | Yes | | Memory Card Type | SD
SDHC
SDXC | | Image Stabilization | Sensor-Shift, 5-Way | | Video Recording | Yes | | Video Format | High Definition
MOV
1920 x 1080i / 59.94 fps (20 Mbps)
1920 x 1080i / 59.94 fps (17 Mbps)
High Definition
MOV
1280 x 720i / 59.94 fps (13 Mbps)
1280 x 720i / 59.94 fps (10 Mbps)
High Definition
AVI
1280 x 720p / 30 fps
Standard Definition
AVI
640 x 480p / 30 fps | | Aspect Ratio | 4:3, 16:9 | | Video Clip Length | Up to 29 Min | | Audio Recording | Built-in Mic: With Video, Stereo | | Focus Type | Auto & Manual | | Focus Mode | Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S) | | Autofocus Points | Contrast Detection: 35 | | Viewfinder Type | Electronic | | Viewfinder Pixel Count | 1,440,000 | | Viewfinder Eye Point | 18.00 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 1.15x | | Diopter Adjustment | - 4 to +2 m | | Display Screen | 3" Rear Touchscreen Tilting OLED (610,000) | | Screen Coverage | 100% | | ISO Sensitivity | 200-1600 (Extended Mode: Auto, 200-25600) | | Shutter | 60 - 1/4000 seconds
8 - 0 minute in Bulb Mode | | Remote Control | RM-UC1 (Optional) | | Metering Method | Center-weighted average metering, Multi-zone metering, Spot metering | | Exposure Modes | Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
Metering Range: EV 0.0 - EV 20.0
Compensation: -3 EV to +3 EV (in 1/3 EV steps) | | White Balance Modes | Auto, Cloudy, Custom, Flash, Fluorescent, Incandescent, One-touch, Shade, Sunlight, Underwater | | Burst Rate | Up to 9 fps at 16.1 MP
Up to 4.2 fps at 16.1 MP
Up to 3.5 fps at 16.1 MP | | Flash Modes | Auto
Fill-in
Manual
Off
Red-eye Reduction
Second-curtain Sync
Slow Sync
Slow Sync/Red-eye Reduction | | Built-in Flash | No | | Max Sync Speed | 1 / 250 seconds | | Dedicated Flash System | TTL Groups: 4 Channels: 4 | | External Flash Connection | Hot Shoe | | Continuous Shooting | Up to 9 fps | | Self Timer | 12 seconds, 2 seconds | | Connectivity | AV / USB Multi, HDMI D (Micro), USB 2.0 | | Battery | 1x BLN-1 Rechargeable Lithium-ion Battery Pack | | AC Power Adapter | AC-3 (Optional) | | Operating/Storage Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 30 - 90% | | Dimensions (WxHxD) | 4.8 x 3.5 x 1.7" / 121.9 x 88.9 x 43.2 mm | | Weight | 15 oz / 425 g | | Focal Length | 14 - 42mm
Comparable 35mm Focal Length: 24 - 48 mm | | Aperture | Maximum: f/3.5 - 5.6
Minimum: f/22 | | Angle of View | 75° - 29° | | Minimum Focus Distance | 9.84" (25 cm) | | Magnification | 0.19x | | Elements/Groups | 8/7 | | Diaphragm Blades | 7, Rounded | | Autofocus | Yes | | Filter Thread | Front: 37 mm | | Dimensions (DxL) | Approx. 2.22 x 1.97" (56.5 x 50 mm) | | Weight | 3.99 oz (113 g) | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.5 x 5.7 x 5.2" | |
