User manual for the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA

The user manual for the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

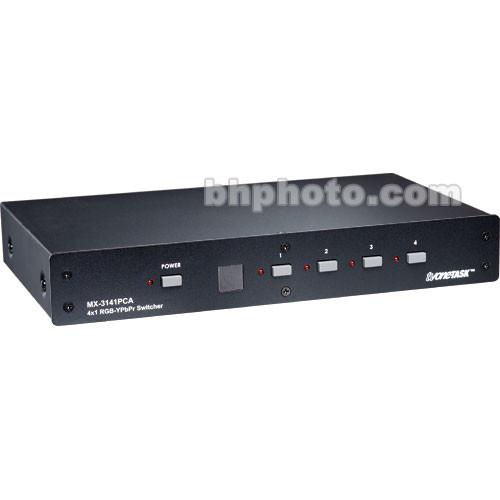

The MX-3141PCA 4x1 Routing Switcher for YPbPr Component HDTV, PC Video & Stereo Analog Audio from TV One is a high-performance switcher that features (4) video inputs, (4) audio inputs, and (1) output. This unit is specifically designed to manage YPbPr Component HDTV, PC video, and stereo analog audio.
It offers an extremely wide bandwidth capacity of 300MHz. Moreover, video bandwidth is flat +/- 3db to beyond 300MHz, ensuring that the switcher will provide an output identical to the source signals.

The unit is housed in a rugged metal case and comes ready to mount in your rack by way of an included rackmount kit. The switcher may be controlled via the push buttons on the front panel or with the included IR remote control. RS-232 control capability is also a standard feature.
If you own a One Task routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA:
Inputs x4 video
x4 audio
Outputs x1
Supported Formats Video: YPbPr Component HDTV video, PC video
Audio: Stereo analog audio
Connectors Video: HD-15
Audio: 3.5mm Mini
TV Standards NTSC, PAL, HDTV
Supported Signals PC: VGA, SVGA, XGA, SXGA
UXGA (1600x1200)
WUXGA (1920x1200)
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video Bandwidth 300MHz +
Video Impedance 70Ω
Video Level Unity, Nominal 1V p-p
Audio Bandwidth 20Hz to 20 KHz
Audio Impedance 20KΩ Analog, 75Ω Coaxial
Audio Level Unity, Nominal (S/PDIF .5-1Vp-p)
Control Manual, remote
Power Source 5VDC@2A - Locking DC
Dimensions (WxDxH) 1-7/8 x 11.5 x 7" (48 x 292 x 176mm)
Weight 3.3 lbs (1.5kg)
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 12.8 x 12.7 x 2.7"
The user manual for the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other One Task users keep a unique electronic library for One Task routers & switcherss, where you can use our link to download the user manual for the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA.

The user manual lists all of the functions of the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from One Task service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the One Task MX-3141PCA 4x1 Switcher YPbPr Component MX-3141PCA. User manuals are also available on the One Task website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
