User manual for the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST

The user manual for the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

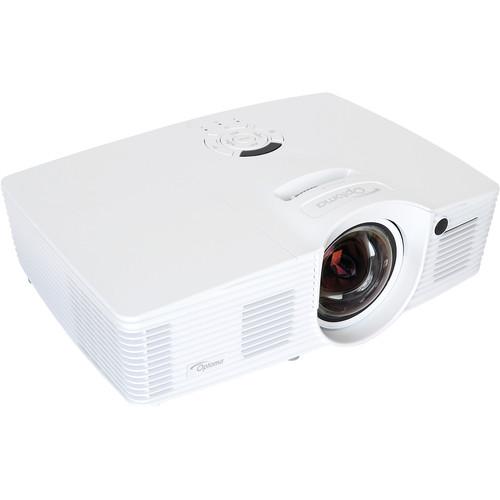

The Optoma EH200ST 3000-Lumen Full HD 3D Short-Throw Multimedia DLP Projector is suitable for use in environments such as home theaters, schools, conference rooms, places of worship, and more. It delivers 3000 lumens of brightness with a low 26 dB noise level. The EH200ST features a sharp 20,000:1 contrast ratio, full 3D compatibility via HDMI 1.4a, and a Full HD 1920 x 1080 native resolution. It supports resolutions up to WUXGA 1920 x 1200. This projector is powered by a DLP chip system, and the lamp features a long life of up to 6,500 hours. You can use the EH200ST to project up to a 303.2" diagonal screen size, and it features a short 0.5:1 throw ratio.

At 6 lb, the EH200ST is light enough for travel and includes a carrying case. This projector is well equipped for high-resolution source component connections with two HDMI inputs; it also supports MHL connectivity via HDMI input 1. As an added convenience, an HDMI cable is included. Other features include a 0.5W standby power consumption level, optional ceiling mount compatibility, rear screen projection, and the inclusion of an IR backlit remote control. A 10W speaker is also built into the projector for audio playback
If you own a Optoma Technology multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200STDownload user manual for Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST
(PDF file, 9.24 MB)
Additional parameters of the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST:
Specifications
    Image Display
    Display System 1-Chip 0.65" / 16.51 mm DC3 DMD DLP
    Native Resolution Full HD - 1920 x 1080
    Supported Resolutions VGA - 640 x 480
    SVGA - 800 x 600
    XGA - 1024 x 768
    WXGA - 1280 x 800
    SXGA - 1280 x 1024
    WXGA+ - 1440 x 900
    SXGA+ - 1400 x 1050
    UXGA - 1600 x 1200
    Full HD 1080p - 1920 x 1080
    WUXGA - 1920 x 1200
    Format NTSC
    PAL
    SECAM
    HDTV Compatibility 1080p
    1080i
    720p
    480p
    480i
    Brightness 3000 Lumens
    Uniformity >80%
    Offset 116% ± 0%
    Aspect Ratio Native: 16:9
    Supported: 4:3
    Contrast Ratio 20000:1
    DLP Link 3D Yes
    Supported 3D Formats Frame Packing
    Side by Side
    Top Bottom
    Color Range 1.07 Billion
    Scan Vertical: 24 - 85 Hz or 120 Hz
    Horizontal: 15.375 - 91.146 kHz
    Lens
    Focus Manual
    Lens F 2.8 (f = 7.42 mm)
    Zoom Digital: 0.8-2x
    Throw Distance 1.64 - 11.0' (0.5 - 3.4 m)
    Throw Ratio 0.5:1
    Projection Size 45.3 - 303.2" / 115.06 - 770.13 cm
    Features
    Keystone Correction Vertical: ± 40°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker 10 W
    Input/Output Connectors
    Inputs/Outputs 2x HDMI Audio/Video (Input)
    1x VESA 3D Sync Video (Output)
    1x Mini-USB Type-B Female
    1x 12 V Trigger Control (Output)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    General
    Watts 190 W
    Life Bright Mode: 6500 Hours
    Eco Mode: 6000 Hours
    Dynamic Mode: 5000 Hours
    Fan Noise Eco Mode: 26 dB
    Remote Control Yes
    Security Cable Lock Slot
    Security Bar
    System Requirements Not Specified By Manufacturer
    Languages Not Specified By Manufacturer
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: 262 W
    Eco Mode: 193 W
    Standby Mode: <.5 W
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Humidity: 0 - 85%
    Dimensions (WxHxD) 12.4 x 4.0 x 8.8" / 315.0 x 102.0 x 224.0 mm
    Weight 6 lb / 2.72 kg
    Packaging Info
    Package Weight 8.55 lb
    Box Dimensions (LxWxH) 15.7 x 11.2 x 6.2"
    The user manual for the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Optoma Technology users keep a unique electronic library for Optoma Technology multimedia projectorss, where you can use our link to download the user manual for the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST.

    The user manual lists all of the functions of the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Optoma Technology service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Optoma Technology EH200ST 3000-Lumen Full HD 3D EH200ST. User manuals are also available on the Optoma Technology website under A/V Presentation - Projectors - Multimedia Projectors.
