User manual Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080

Operating instructions and pdf manual for use - Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080 User manual, User manual Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080, Optoma, Technology, GT1080, Short, Throw, DL


User manual for Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

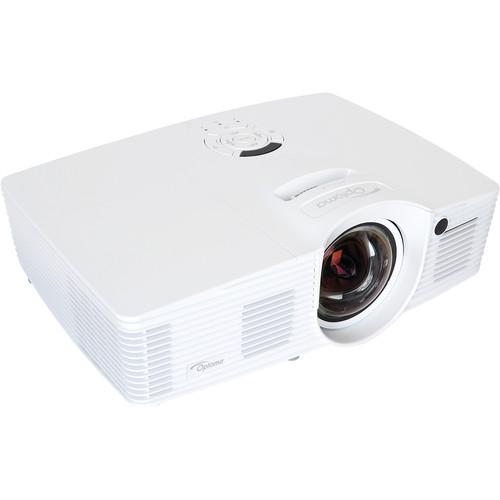

Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080
  • Manufacturer: Optoma Technology
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Home Theater Projectors
  • Safety instructions
  • Startup and operation of the home theater projectors
  • Tips for setting up your Optoma Technology
  • Settings and expert assistance
  • Contact Optoma Technology service
  • Troubleshooting
  • Warranty information
  • Price: 699 USD
We recommend checking out our discussion threads on the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080, which address similar problems with connecting and setting up Home Theater Projectors Optoma Technology.



User manual for the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080

The user manual for the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Home Theater Projectors.

With a latency of less than 14 milliseconds, the 2800 lumen GT1080 Short Throw DLP Gaming Projector from Optoma is optimized for the gaming user who requires as little display lag as possible to make precise moves. It features two HDMI ports, which support HDMI 1.4a - including all mandatory 3D formats - allowing it to be used not only with game consoles, but Blu-ray players, cable boxes, computers, MHL-compatible mobile devices, and more. A single-chip DLP imaging device renders a native resolution of 1920 x 1080p (Full HD), plus the projector can support a range on non-native resolutions from SD (480i) up to WUXGA (1920 x 1200) thanks to internal scaling.

Alongside the two HDMI inputs, there is a 3D sync port that is required when using certain types of RF-based active 3D glasses. In addition, an analog audio output allows stereo audio from the selected input to be passed along to amplified speakers, a receiver, or sound system. There is also a 12VDC trigger output so that the projector can operate another device in a home theater installation, such as a motorized projector screen. A back-lit IR remote is included to control the projector.
If you own a Optoma Technology home theater projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080Download user manual for Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080
(PDF file, 9.24 MB)
Additional parameters of the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080:
Image Display
Display System Single-chip 0.65" / DC3 DMD DLP
Native Resolution 1920 x 1080
Format NTSC, PAL, SECAM
Supported Resolutions Maximum: 1920 x 1200
Computer: WUXGA, UXGA, SXGA+, WXGA+, WXGA, SXGA, XGA, SVGA, VGA
Video: 1080p, 1080i, 720p, 480p, 480i
3D Support Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up-converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz (i.e 60 or 72 frames per eye). Additionally, 3D glasses are needed and are available separately
Brightness 2800 ANSI lumens
Aspect Ratio Native: 16:9
Supported: 4:3
Supported: 16:10
Contrast Ratio Dynamic: 25,000:1 (full on/full off)
Color Range 1.1 billion
Uniformity >80%
Scan Rate Vertical: 24 to 85 Hz, 120 Hz
Horizontal: 15.375 to 91.146 KHz
Latency <14 msec
Lens
Lens F=2.8, f=7.42 mm
Focus Manual
Digital Zoom 0.8 to 2 (no optical zoom)
Throw Ratio 0.5:1
Projection Distance 1.6 to 11' / 0.5 to 3.4 m
Image Size Recommend: 45.3 to 303.2" / 1.1 to 7.7 m
Offset 116%
Features
Keystone Correction Vertical: ±40°
Projection Method Front, rear, ceiling mount, table top
Built-in Speaker 10 W mono
Remote Control Back-lit IR remote control
Security Kensington slot
Security bar
Keypad lock
Input/Output Connectors
Inputs 2 x HDMI (HDMI 1.4a support)
Outputs 1 x VAO Analog audio on 3.5 mm mini jack (supports HDMI de-embedding)
3D 1 x 3D VESA sync output on DIN connector
USB 1 x USB 2.0 mini type B
Low Voltage Control 1 x 12 VDC trigger input
General
Lamp 190 W
Lamp Life Bight Mode: 5000 hours
Eco Mode: 6000 hours
DB Mode: 6500 hours
Replacement Lamp SP.8VH01GC01
Fan Noise 26 dB in Eco Mode
Power Requirements 100 to 240 VAC, 50 to 60 Hz (auto-switching)
Power Consumption Normal Mode (Maximum): 262 W
Eco Mode (Minimum): 193 W
Standby in Eco Mode: <0.5 W
Operating Temperature 41 to 104°F / 5 to 40°C, 85% max humidity
Dimensions (W x H x D) 12.4 x 4 x 8.8 / 315 x 102 x 224 mm
Weight 6 lb / 2.7 kg
Packaging Info
Package Weight 8.5 lb
Box Dimensions (LxWxH) 16.0 x 11.0 x 6.0"
The user manual for the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080 can be downloaded in .pdf format if it did not come with your new home theater projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Optoma Technology users keep a unique electronic library for Optoma Technology home theater projectorss, where you can use our link to download the user manual for the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080.

The user manual lists all of the functions of the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080, all the basic and advanced features and tells you how to use the home theater projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Optoma Technology service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Optoma Technology GT1080 Short Throw DLP Gaming Projector GT1080. User manuals are also available on the Optoma Technology website under A/V Presentation - Projectors - Home Theater Projectors.
