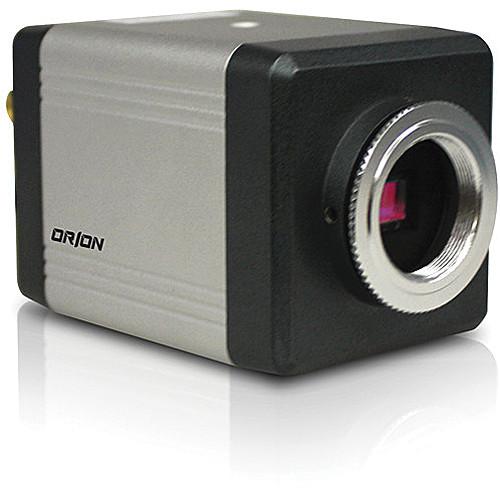

Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC
  • Manufacturer: Orion Images
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your Orion Images
  • Settings and expert assistance
  • Contact Orion Images service
  • Troubleshooting
  • Warranty information
  • Price: 275 USD
We recommend checking out our discussion threads on the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC, which address similar problems with connecting and setting up Wired Analog & HD Cameras Orion Images.



User manual for the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC

The user manual for the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

The Orion Images 2.1 MP Full HD Day/Night Camera is well suited for 24/7 uninterrupted monitoring of your surveillance area. It is equipped with a 1/3” CMOS image sensor and produces videos at resolutions of up to 1920 x 1080p (30 / 25 fps).

The camera automatically switches to night mode and is suitable for dim lit or very low-lighting conditions and offers a sensitivity of 0.1 lux. Its automatic electronic shutter feature helps provide vivid images in all lighting conditions and ensures excellent videos even of fast-moving objects. For enhanced clarity, the camera's built-in noise reduction technology digitally corrects the image to avoid blurring or distortion.

The two-way automatic iris control function allows the camera to switch between video- and DC-type iris lenses enabling compatibility with almost all types of automatic iris CCTV lenses.

With its motion detection feature, the camera alerts you in case of any movement in the surveillance area, while privacy masking of up to 32 zones helps ensure the privacy of people under surveillance.
If you own a Orion Images wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDCDownload user manual for Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC
(PDF file, 0.48 MB)
Additional parameters of the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC:
Specifications
    Signal System Supports NTSC / PAL
    Image Sensor 1/3" CMOS
    Effective Pixels (H x V) 1944 x 1092, 2.1 MP
    Sync System Internal
    Ports 1 x BNC SDI output
    1 x BNC out (CVBS)
    1 x RS-232C
    1 x DC iris
    Video Output 1 Vp-p @ 75 ohms
    Minimum Illumination 0.1 lux (F1.2, 50 IRE, AGC maximum)
    Auto White Balance Auto / Manual
    Backlight Compensation Built-in
    Noise Reduction Built-in
    Electric Shutter Auto / Manual (Manual: 1/30, 1/60, 1/120, 1/250, 1/700, 1/1000, 1/1600, 1/2500, 1/5000, 1/7000,1/10000, 1/30000 sec)
    Auto Iris DC or video selectable
    Day/Night Built-in
    Mirror Image Built-in (Horizontal and Vertical)
    Privacy Masking Built-in
    Motion Detection Built-in
    Camera ID Built-in
    Lens Mount CS mount

    C mount ring is provided as standard

    Power Requirement 12 VDC (voltage tolerance: 10 to 16 V) 190 mA ±10%
    Power Consumption 2.3 W maximum
    Operating Temperature 32 to 122°F (0 to 50°C)
    Operating Humidity 20 to 80%
    Camera Mount 2 x 1/4" - 20 UNC (top and bottom)
    Dimensions 4.02 x 2.32 x 2.32" (10.21 x 5.9 x 5.9 cm)
    Weight 0.55 lb (0.25 kg)
    Packaging Info
    Package Weight 0.9 lb
    Box Dimensions (LxWxH) 6.4 x 4.4 x 3.1"
    The user manual for the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Orion Images users keep a unique electronic library for Orion Images wired analog & hd camerass, where you can use our link to download the user manual for the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC.

    The user manual lists all of the functions of the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Orion Images service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Orion Images 2.1 MP Full HD Day/Night Camera CHDC-21BSDC. User manuals are also available on the Orion Images website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
