User manual Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB

Operating instructions and pdf manual for use - Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB User manual, User manual Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB, Orion, Images, 32BLHB, 32, Wide, View, Panorama, Bar, LED,


User manual for Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB

Orion Images 32BLHB 32
  • Manufacturer: Orion Images
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your Orion Images
  • Settings and expert assistance
  • Contact Orion Images service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB, which address similar problems with connecting and setting up Commercial Monitors Orion Images.



User manual for the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB

The user manual for the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

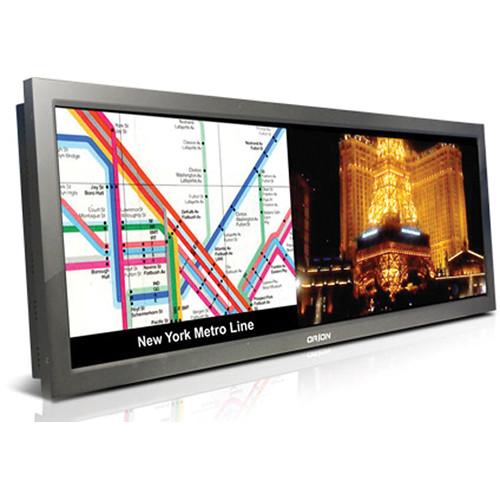

The black 32BLHB 32" Digital Signage Bar LCD from ORION Images Corporation is designed for digital signage applications in banks, convenience stores, subways, buses, casinos, department stores, stadiums, schools, etc. It features a native resolution of 1920 x 540 pixels.
If you own a Orion Images commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB:
Display
Screen Size 32.0" (81.3 cm)
Maximum Resolution 1920 x 540 @ 60 Hz
Brightness 1000 cd/m²
Pixel Pitch 0.36375 x 0.36375 mm
Active Display Area 27.5 x 7.7 " (698.4 x 196.4 mm)
Contrast Ratio 1300:1
Backlight LED BLU
Viewing Angle (H/V) 178 / 178°
Display Color 16.7 million
Aspect Ratio 16:4.5
Interface
Input 1 x VGA (15-pin D-sub),1 x DVI-D, and 1 x Audio (RCA type)
Audio
Speaker Output 2 W

Speakers sold separately.

Material Metal
Power
Input Voltage 100 to 240 VAC (50/60 Hz)
Environmental Conditions
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Mount
VESA Mount 200 x 100 mm
Dimensions (WxHxD)
Outline Dimension 29.2 x 9.4 x 1.3" (74.1 x 23.9 x 3.4 cm)
Weight Not specified by the manufacturer
The user manual for the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Orion Images users keep a unique electronic library for Orion Images commercial monitorss, where you can use our link to download the user manual for the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB.

The user manual lists all of the functions of the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Orion Images service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Orion Images 32BLHB 32" Wide View Panorama Bar LED 32BLHB. User manuals are also available on the Orion Images website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
