User manual for the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604

The user manual for the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604 provides necessary instructions for the proper use of the product A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.

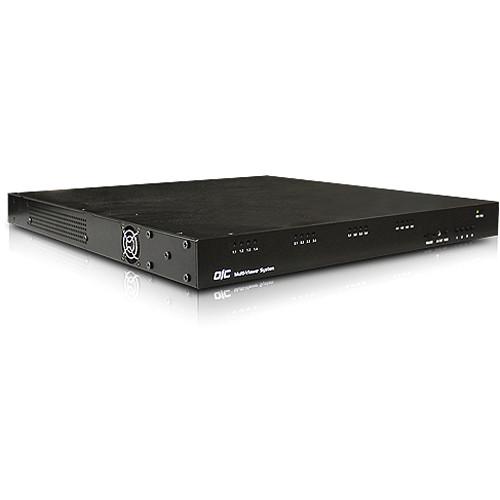

The Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System outputs 16 video sources to a display or multiple displays in various configurations. All 16 sources can be sent to one display, via one output, in a split-screen configuration; or eight of the sources can be sent to one display, via one output, and the other eight to another display, via a second output, both outputs outputting in split-screen configurations; or all 16 sources can be output to a 16-screen video wall, with each source displaying as a resizable window -- you can resize one to be much bigger than another; and lastly, you can have just one of the 16 sources stretched out across a video wall, and you can toggle between the 16 to display each one stretched out one at a time. The inputs are all DVI and the four outputs are both RJ45. 16 DVI-to-VGA adapters are included for the inputs, and four RJ45-to-DVI and four RJ45-to-HDMI adapters are included for the outputs. The system supports video walls of up to 16 screens.

In the example of resizing windows on a video wall, hardware-based scaling retains the resolution of each input in a window, no matter how you resize the window.

A control software called OIC Commander is included and enables you to assign layout configurations, select output resolutions up to 2048 x 1080, and perform many other functions. The other ways of controlling are by front panel buttons, by RS-232C, or through a control module with GPI inputs assigned to preset buttons. Using front panel buttons, you can choose from 30 preset layouts, all assignable.

The multi-viewer is 2 RU rack-mountable and comes with a rack-mount kit among many converter cables, extender cables, the OIC software, and a built-in redundant power supply.
If you own a Orion Images multi viewer processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604:
Specifications
    Video Inputs 16x DVI-I (DVI to VGA adapters included)
    Video Outputs 4x RJ45 (RJ45 to DVI adapters and RJ45 to HDMI adapters included)
    Total Screens Supported The M1604 can connect to a video wall of up to 16 screens
    Built-in CATx Extender Up to 35 ft (10.6 m)
    Can optionally be upgraded to extend 115 ft (35 m)
    Output Resolution 800x480 to 2048x1080 (1080p)
    GPI I/O Connections 1x RJ50 for 40 inputs with DB9 connectors
    Serial Port 1x RS232 on RJ45 (with room for RS422 and RS485 options)
    Baud rate up to 115200
    Format: TSL, TSI, AXP
    Alarm No audio, audio high / low, no video, video black, video frozen
    IP On 1x RJ45: 100-Base-TX, TSL, AXP
    Power Built-in redundant power supply
    Power Requirement AC 90-250 V, 50/60 Hz
    Power Consumption Approx. 220 W
    Audio Embedded Audio: SMPTE 272M-A, HDMI
    AES Audio (option): 16 channels (balanced / unbalanced)
    Analog Stereo Audio (option): 32 channels (balanced / unbalanced)
    Dimensions 17.5 x 3.5 x 23.6" (44.5 x 8.9 x 59.9 cm)
    The user manual for the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604 can be downloaded in .pdf format if it did not come with your new multi viewer processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Orion Images users keep a unique electronic library for Orion Images multi viewer processorss, where you can use our link to download the user manual for the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604.

    The user manual lists all of the functions of the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604, all the basic and advanced features and tells you how to use the multi viewer processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Orion Images service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Orion Images OIC-M1604 16 x 4 HD Multi-Viewer System OIC-M1604. User manuals are also available on the Orion Images website under A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.
