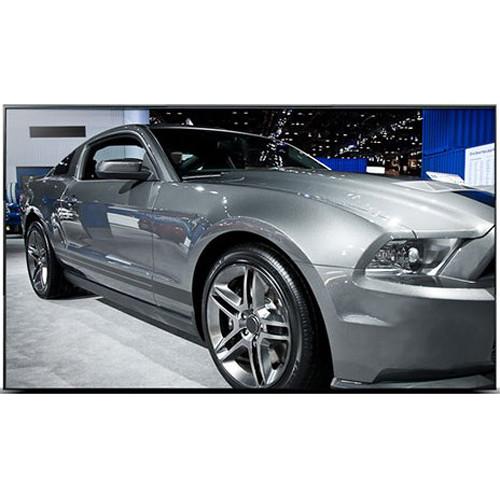

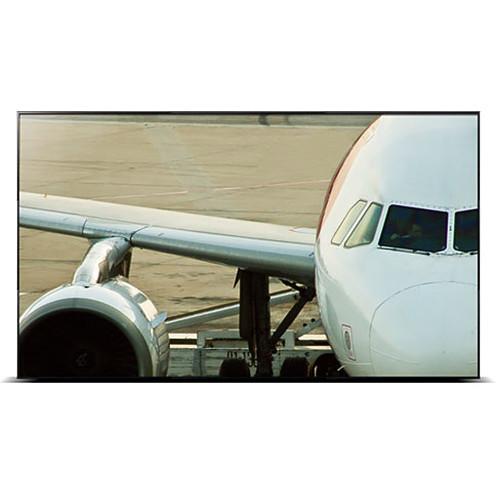

The 54.6" RNK55UHF Video Wall Full HD LED Backlit Monitor from ORION Images is designed for tiled video wall displays that offer flexibility, scalability, and high resolution. The monitor requires less power consumption and with auto pixel shift built in, it is not subject to permanent or irreversible burn-in. It can be used for corporate AV as well as digital signage applications such as shopping malls, airports, stadiums, lobby signage, boardrooms, and more.
If you own a Orion Images surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Orion Images RNK55UHF Video Wall Full HD LED Backlit RNK55UHF in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Orion Images RNK55UHF Video Wall Full HD LED Backlit RNK55UHF:
Specifications
Display
Screen Size 54.6"
Bezel Width 2.2 / 1.3 / 2.2 / 1.3 mm
Maximum Resolution 1920 x 1080 @ 60Hz
Pixel Pitch 0.630 x 0.630 mm
Brightness 700 cd/m²
Contrast Ratio 3500 : 1
Aspect Ratio 16 : 9
Viewing Angle 178° / 178°
Display Color 16.7 million
Response Time < 8 ms (grey to grey)
Video System NTSC / PAL
Interface
Ports Video In / Out (BNC Type): 2/2
HDMI In / Out: 1/1
VGA In / Out (15-pin D-Sub): 1/1
DVI-D In / Out: 1/1
RS232 In / Out: 1/1
PC Stereo In: 1
Speaker Out: 1
Audio In (RCA Type): 2 (L + R)
Transmitter
IR Remote Control Yes
Audio
Built-In Speakers Yes (2 x 10 W)
Mechanical
Features & Functions Multi Display Function: PBP / PIP
Temperature Sensor
Filter Type (3D Comb Filter)
De-Interlace
Noise Reduction
Single image display up to 10 x 10
Auto Fan Control System
Auto Pixel Shift
Trigger Source Switching
Multi Language: English, Spanish, French, German, and Italian
Auto Source Switching
Edge Setting (Horizontal / Vertical)
Advance Auto Power Recovery
RS-232C Control (Monitor OSD control using PC)
Electrical Rating 100 to 240 VAC (50/60 Hz)
Power Consumption < 242 W
Operating Temperature 32 to 104°F (0 to 40°C)
Mount VESA: 800 x 400 mm
Video Wall: WFS, WES, WSD
Standalone: WB-4663
Dimensions 47.5 x 26.9 x 5.1" (120.7 x 68.3 x 12.9 cm)
Weight 81 lb (37 kg)
