User manual for the OWC / Other World Computing ThunderBay 4 Mini OWCTB4MJBSSD04T
The user manual for the OWC / Other World Computing ThunderBay 4 Mini OWCTB4MJBSSD04T provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

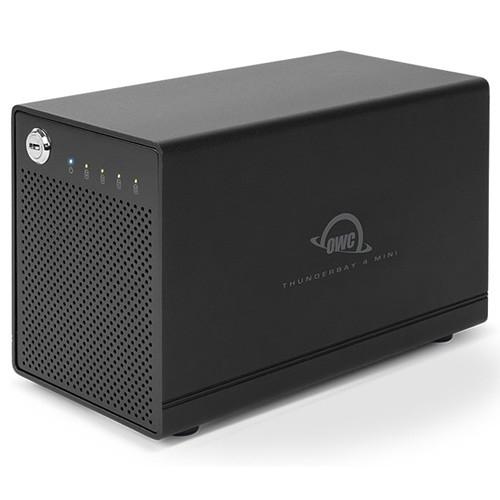

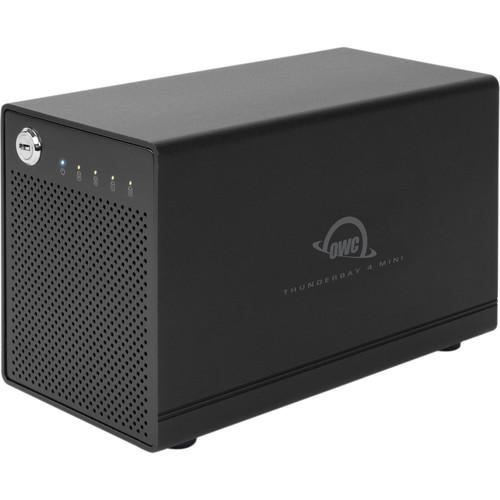

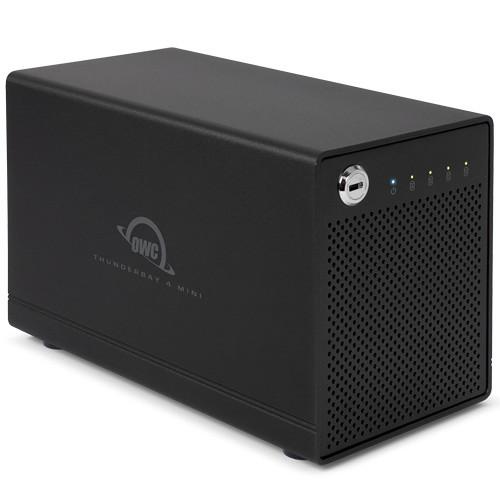

The ThunderBay 4 Mini 4TB (4 x 1TB) Four-Bay Thunderbolt 2 Array from OWC / Other World Computing comes with four SSDs and connects to Mac and Windows systems via Thunderbolt. This array features four 2.5" bays that can each house a 1TB SSD to provide your system a total storage capacity of 4TB. When configured in RAID 0, these drives can provide a read speed up to 1346 MB/s and a write speed up to 1322 MB/s. Furthermore, they can be configured, by using your own RAID software, into different RAID options that offer redundancy, speed, or a combination of both. The ThunderBay 4 Mini allows you to handle demanding applications such as workflows involving 4K, 2K, uncompressed HD, and multi-stream SD videos. Moreover, the Mini's size and weight lets you easily transport your data between production environments.
The ThunderBay 4 Mini is equipped with two Thunderbolt 2 ports that transfer data at speeds of up to 20 Gb/s between your system and the array. It also allows you to daisy-chain up to six devices such as additional ThunderBays, 4K displays, and more. To cool the drives and the array, OWC uses a quiet 60mm fan along with a flow-thru vented design. Additionally, included with the array is a 3.3' (1m) Thunderbolt cable to help you get started.
If you own a OWC / Other World Computing hard drive arrays and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the OWC / Other World Computing ThunderBay 4 Mini OWCTB4MJBSSD04T in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the OWC / Other World Computing ThunderBay 4 Mini OWCTB4MJBSSD04T:
| Chipset || Thunderbolt 2 |
| Interface Transfer Rate || Thunderbolt 2 (20 Gb/s) |
SATA III 6 Gb/s
| Ports || 2 x Thunderbolt 2 |
| Read / Write Speeds || Read: 1346 MB/s |
Write: 1322 MB/s
| Capacity || Total: 4 TB |
| Bays || Four |
| Drives || 4 x 1 TB SSDs |
| RAID Levels || JBOD: Utilize each of the four drives independently |
RAID: Use any Software RAID of your choice to setup the ThunderBay 4 for multi-drive performance or data redundancy.
| Temperature || Operating: 41.0 to 107.6 F° / 5.0 to 42.0 C° |
Non-operating: -40.0 to 149.0 F° / -40.0 to 65.0 C°
| Humidity || Operating: 8 to 90% RH (Non-condensing) |
Non-operating: 5 to 95% RH (Non-condensing)
| Shock || Operating: 65 G 2 mS |
Non-operating: 175 G 2 mS
| Vibration || Operating: 1.0 G (5 to 300 Hz) |
Non-operating: 5.0 G (5 to 500 Hz)
| Power Supply || UL Listed U.S./International Auto Switching 100 to 240 V, 50/60 Hz input, 12 Volt 6.0 A output Power Supply |
| Port/Interface Bootability || It can be used as a Thunderbolt startup drive on Macs running Mac OS X. |
| System Requirements || Any Mac with a Thunderbolt port running OS X 10.9 or later |
Any PC running Windows 7 Service Pack 1 or later with a Thunderbolt port
Driver required for proper installation (3.3 MB ZIP)
Boot Camp is not supported. The Thunderbolt certification process does not include Macs running Windows through Boot Camp.
| Dimension (D x W x H) || 7.6 x 3.8 x 4.6" / 19.3 x 9.7 x 11.7 cm |
| Weight || 2.4 lb / 1.1 kg (no drives) |
| Package Weight || 5.3 lb |
| Box Dimensions (LxWxH) || 10.8 x 10.6 x 4.9" |
