User manual for the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder AJ-PX800G

The user manual for the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder AJ-PX800G provides necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

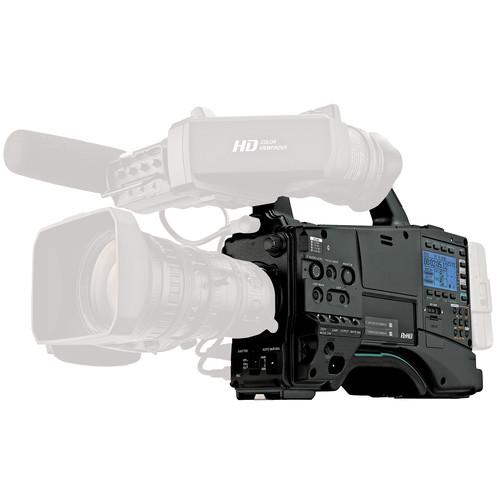

Designed to be lighter than their previous 3 MOS ENG style cameras, the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder is a full-featured 2/3" ENG style video camera with an interchangeable lens system. Please note that this item only includes the camera body and does not include the lens or viewfinder. Suitable for newsgathering, the camera captures Full HD at up to 59.94p, recording to optional P2 cards, or micro P2 cards with an optional adapter. Using codecs in the AVC-ULTRA family allows you a choice of compression and data rate to suit your needs, and you can record proxy files on optional SD cards using the built-in SD media card slot.

It features an SD/HD-SDI, and an HDMI output, as well as a monitor output switchable between SD/HD and Composite. With both Genlock in and Timecode In/Out, the camera is suitable for multi-camera and single camera news coverage. The camera comes ready to interface with your network via the built-in Ethernet connector. You can attach an optional USB dongle to the camera for wireless connectivity using WiFi, 4G, or LTE. The camera features a variety of in camera image settings, including Flash Band compensation, which minimizes the effects of still photo camera flashes captured on video. The built-in Uni Slot accepts optional wireless audio recording.
If you own a Panasonic camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder AJ-PX800G in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder AJ-PX800G:
Image Sensor 3 x 2/3" 2.2MP MOS sensors
Effective resolution: 2.2MP
Horizontal Resolution Minimum 1000 TV Lines at Center
Lens Mount System 2/3" Bayonet
Sensitivity NORMAL
1080/59.94i: F9 (2000 lx, 3200 K, 89.9% reflection)
1080/50i: F10 (2000 lx, 3200 K, 89.9% reflection)

HIGH SENS
1080/59.94i: F12 (2000 lx, 3200 K, 89.9% reflection)
1080/50i: F13 (2000 lx, 3200 K, 89.9% reflection)
Minimum Subject Illumination Approx. 0.22 lx (HIGH SENS MODE, F1.4, +42 dB (S.GAIN))
S/N Ratio Image
62 dB (standard)
Shutter Speed 60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
30p mode: 1/30 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000
24p mode: 1/24 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000
50i/50p mode: 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000
25p mode: 1/25 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000
Synchro Scan 60i/60p mode: 1/60.0 to 1/250.0
30p mode: 1/30.0 to 1/250.0
24p mode: 1/24.0 to 1/250.0
50i/50p mode: 1/50.0 to 1/250.0
25p mode: 1/25.0 to 1/250.0
Slow Shutter Speed 60i/60p mode: 1/15, 1/30
30p mode: 1/15
24p mode: 1/12
50i/50p mode: 1/12.5, 1/12.5
25p mode: 1/12.5
Shutter Opening Angle 3.0 to 360.0° (in 0.° steps)
Gain NORMAL
-3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB

HIGH SENS
-6. -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB

Super Gain
30, 36, 42 dB
ND Filters Clear, 1/4, 1/16, 1/64
LCD Display 4.3", 1.15MP
Viewfinder 0.45", 1.22MP
Recording
Recording Media 2 x P2 Card
Video Codecs MPEG-2 Long GOP (HD)
AVCHD progressive
H.264
File Formats MOV (HD/SD/Web)
MP4 (XDCAM EX)
MTS (AVCHD progressive)
MXF
Recording Modes NTSC Setting

MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /59.94i/29.97p/23.98p
1440 x 1080 /59.94i
1280 x 720 /59.94p/29.97p/23.98p
SP Mode:
1440 x 1080 /59.94i
1280 x 720 /59.94p

AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /59.94p
HQ mode (24 Mbps): 1920 x 1080 /59.94i
SP mode (17 Mbps): 1920 x 1080 /59.94i
LP mode (9 Mbps): 1440 x 1080 /59.94i
EP mode (5 Mbps): 1440 x 1080 /59.94i

H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /59.94p/59.94i/29.97p/23.98p
UHQ mode (35 Mbps): 1920 x 1080 /59.94i/29.97p/23.98p

H.264 (SD)
720 x 480 /59.94

H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /29.97p/23.98p
LP mode (1.2 Mbps): 480 x 270 /29.97p/23.98p

PAL Setting

MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /50i/25p/2p
1440 x 1080 /50i
1280 x 720 /50p
SP Mode:
1440 x 1080 /50i
1280 x 720 /50p

AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /50p
HQ mode (24 Mbps): 1920 x 1080 /50i
SP mode (17 Mbps): 1920 x 1080 /50i
LP mode (9 Mbps): 1440 x 1080 /50i
EP mode (5 Mbps): 1440 x 1080 /50i

H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /50p/50i/25p
UHQ mode (35 Mbps): 1920 x 1080 /50i/25p

H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /25p
LP mode (1.2 Mbps): 480 x 270 /25p
Sampling Frequency AVC-Intra100/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD
Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz)
Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz)

DVCPRO50
Y: 13.5 MHz, PB/PR:6.75 MHz
DVCPRO
Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing 10 bit: AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25
8 bit: AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV
Proxy Video Compression Format
H.264/AVC Baseline Profile, H.264/AVC High Profile

Audio Compression Format
AAC-LC, Linear PCM

Approximate Recording Times per GB
AVC-G6 2CH MOV: Approx. 13 min
SHQ 2CH MOV: Approx. 25 min
HQ 2CH MOV: Approx. 78 min
LOW 2CH MOV: Approx. 135 min
Audio Recording AVC-Intra100/AVC-Intra50: 48 kHz/16 bit, 4CH and 48 kHz/24 bit, 4CH switch
AVC-LongG50/AVC-LongG25: 48 kHz/24 bit, 4CH
AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 48 kHz/16 bit, 4CH
Headroom Audio: 18 dB/20 dB (switchable with menu)
Interface
Inputs/Outputs Video

Genlock In
1 x BNC (1.0 V [p-p], 75 Ω)

Timecode In/Out Switchable
In: 1 x BNC (0.5 V [p-p] to 8 V [p-p], 10 kΩ)
Out: 2.0 ±0.5 V [p-p], Low impedance

SDI In/Out
SD/HD-SDI: 1 x BNC 0.8 V [p-p], 75 Ω (Input is an Option and not included)

HDMI
Out: 1 x HDMI type A terminal (not compatible with VIERA Link)

Monitor Out
Switchable to SD/HD-SDI/analog compsite on Smart UI
1.5 G HD-SDI: 0.8 V [p-p], 75 Ω
SD SDI: 0.8 V [p-p], 75 Ω
Composite: 1.0 V [p-p], 75 Ω

Audio

In: 2 x 3-pin XLR (Line / Mic switch selectable) +48 V supported (selectable menu) −40 dBu/−50 dBu/−60 dBu (selectable menu)
Out: 2 x RCA Jack (channel 1, channel 2, Output level: 600 Ω, 316 mV)

Wireless
In: 25 pin, D-SUB, −40 dBu, 2CH supported

Headphones
1 x 3.5 mm stereo mini jack

Speaker
1 x Round 20 mm diameter

DC
In: 1 x 4-pin XLR DC 12 V (DC 11.0 V to 17.0 V)
Out: 1 x 4-pin XLR DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A

Remote
10-pin

Lens
12-pin

VF
20-pin

LAN
1 x RJ-45 100BASE-TX/10BASE-T

USB
USB2.0 (host): Type A connector, 4 pin
USB2.0 (device): Type B connector, 4 pin
USB2.0 (sub host): Type A connector, 4 pin (exclusively for wireless module AJ-WM30)
General
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 35 to 80%
Storage Temperature 14 to 122°F (-20 to 50°C)
Storage Humidity Under 85%
Power 12 VDC (10.5 to 17V)
Power Consumption Approx. 28 W
Dimension L x W x H 20.5 x 9.1 x 9.5" (521.0 x 231.0 x 242.3 mm)
Weight Without Battery: Approx. 8.9 lb (4.0 kg)
With Battery: Approx. 10.6 lb (4.8 kg)
Packaging Info
Package Weight 10.0 lb
Box Dimensions (LxWxH) 19.0 x 15.0 x 11.0"
The user manual for the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder AJ-PX800G can be downloaded in .pdf format if it did not come with your new camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic camcorderss, where you can use our link to download the user manual for the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder AJ-PX800G.

The user manual lists all of the functions of the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder AJ-PX800G, all the basic and advanced features and tells you how to use the camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.
