User manual Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH

Operating instructions and pdf manual for use - Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH User manual, User manual Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH, Panasonic, Lumix, DMC-GH4, Mirrorless, Micro, Four, DMC-


User manual for Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH, which address similar problems with connecting and setting up Mirrorless System Cameras Panasonic.



User manual for the Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH

The user manual for the Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

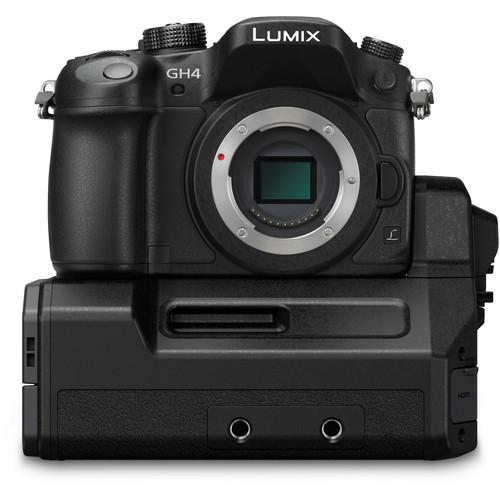

The Lumix DMC-GH4 Mirrorless Micro Four Thirds Digital Camera with Interface Unit provides you with a hybrid camera capable of 16 MP photos and high-resolution 4K video, and an interface unit designed to add the audio/video connections needed for professional video productions. The 16.05-megapixel Digital Live MOS sensor and 4-CPU Venus Engine of the GH4 can capture UHD 4K 3840x2160 30p/24p and cinematic DCI 4K 4096x2160 video at 24p. The camera also features a weathered-sealed magnesium alloy body, an OLED monitor and electronic viewfinder, and a high-speed 49-point autofocus system. Additional video features include focus peaking, time code support, and cine-like gamma options.

The GH4 delivers video quality surpassing many professional video cameras. Video can be recorded in a variety of formats, from efficient AVCHD and AVCHD Progressive, to 200 Mbps All-Intra and 100 Mbps IPB MOV and MP4 formats. And because the GH4 is a global camera, the system frequency can be switched between 59.94 Hz (23.98 Hz) and 50 Hz, yielding a variety of recording options including 23.98p, 25p, 29.97p, 50p, and 59.94p. The system can also be switched to 24 Hz to capture true 24p in HD and 4K resolutions. Video and photos are recorded to an SD/SDHC/SDXC memory card. Video recorded to SD cards is 4:2:0 8-bit.

The Interface Unit turns the GH4 into a video camera ready for professional workflows. When attached to the GH4, the Interface Unit provides 2 XLR inputs for line or condenser microphones, and gives you independent volume control of the left and right channels. There is also an audio level display monitor and +48V of phantom power available for each channel.

When it comes to video outputs, the Interface Unit provides four BNC connectors - two 3G-SDI capable and two HD-SDI capable, allowing for quad-link SDI 4K video in 4:2:2 10-bit, dual-link 4:2:2 10-bit 1080p up to 60 fps, or four simultaneous 1080p streams up to 30 fps - all with timecode. The Interface Unit also has a BNC connector for timecode input, and converts the GH4's micro HDMI output to a full-sized HDMI output. For power, a 4-pin XLR 12VDC input is available. Please note that when using 4:2:2/10-bit output, simultaneous video recording to an SDHC/SDXC memory card in the DMC-GH4 is not possible.

Please see the link below for more information on the various components of this bundle.
If you own a Panasonic mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGHDownload user manual for Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH
(PDF file, 9.91 MB)
Additional parameters of the Panasonic Lumix DMC-GH4 Mirrorless Micro Four DMC-GH4-YAGH:
Specifications
    • Lumix DMC-GH4 Mirrorless Micro Four Thirds Digital Camera (Body Only)
      Imaging
      Lens Mount Micro Four Thirds
      Camera Format Micro Four Thirds (2x Crop Factor)
      Pixels Actual: 17.2 Megapixel
      Effective: 16.05 Megapixel
      Max Resolution 4608 x 3456
      Sensor Type / Size MOS, 17.3 x 13.0 mm
      File Formats Still Images: JPEG, MPO, RAW
      Movies: MOV, MP4, MPEG-4 AVCHD
      Audio: AAC, Dolby Digital 2ch, Linear PCM
      Dust Reduction System Yes
      Memory Card Type SD
      SDHC
      SDXC
      AV Recording
      Video Recording Yes, NTSC/PAL
      Video Format High Definition
      MOV
      4096 x 2160p / 24 fps (100 Mbps)
      3840 x 2160p / 23.98 fps (100 Mbps)
      3840 x 2160p / 24 fps (100 Mbps)
      3840 x 2160p / 25 fps (100 Mbps)
      3840 x 2160p / 29.97 fps (100 Mbps)
      1920 x 1080p / 23.98 fps (200 Mbps)
      1920 x 1080p / 24 fps (200 Mbps)
      1920 x 1080p / 25 fps (200 Mbps)
      1920 x 1080p / 29.97 fps (200 Mbps)
      1920 x 1080p / 50 fps (200 Mbps)
      1920 x 1080p / 59.94 fps (200 Mbps)
      High Definition
      MP4
      4096 x 2160p / 24 fps (100 Mbps)
      3840 x 2160p / 23.98 fps (100 Mbps)
      3840 x 2160p / 24 fps (100 Mbps)
      3840 x 2160p / 25 fps (100 Mbps)
      3840 x 2160p / 29.97 fps (100 Mbps)
      1920 x 1080p / 23.98 fps (200 Mbps)
      1920 x 1080p / 24 fps (200 Mbps)
      1920 x 1080p / 25 fps (200 Mbps)
      1920 x 1080p / 29.97 fps (200 Mbps)
      1920 x 1080p / 50 fps (200 Mbps)
      1920 x 1080p / 59.94 fps (200 Mbps)
      1920 x 1080p / 25 fps (20 Mbps)
      1920 x 1080p / 29.97 fps (20 Mbps)
      1920 x 1080p / 50 fps (28 Mbps)
      1920 x 1080p / 59.94 fps (28 Mbps)
      1280 x 720p / 25 fps (10 Mbps)
      1280 x 720p / 29.97 fps (10 Mbps)
      Standard Definition
      MP4
      640 x 480p / 25 fps (4 Mbps)
      640 x 480p / 29.97 fps (4 Mbps)
      High Definition
      AVCHD
      1920 x 1080p / 23.98 fps (24 Mbps)
      1920 x 1080p / 50 fps (28 Mbps)
      1920 x 1080p / 59.94 fps (28 Mbps)
      1920 x 1080i / 50 fps (24 Mbps)
      1920 x 1080i / 50 fps (17 Mbps)
      1920 x 1080i / 59.94 fps (24 Mbps)
      1920 x 1080i / 59.94 fps (17 Mbps)
      Aspect Ratio 4:3, 16:9
      Video Clip Length Up to 220 Min
      Audio Recording With Video, Stereo
      Focus Control
      Focus Type Auto & Manual
      Focus Mode Continuous-servo AF (C), Flexible (AFF), Manual Focus (M), Single-servo AF (S)
      Viewfinder/Display
      Viewfinder Type Electronic
      Viewfinder Pixel Count 2,359,000
      Viewfinder Eye Point 21.0 mm
      Viewfinder Coverage 100%
      Viewfinder Magnification Approx. 1.34x
      Diopter Adjustment - 4.0 to +4.0 m
      Display Screen 3" Touchscreen Swivel  OLED (1,036,000)
      Screen Coverage 100%
      Exposure Control
      ISO Sensitivity 200-25600 (Extended Mode: 100-25600)
      Shutter 60 - 1/8000
      60 minute in  Bulb Mode
      1/24 - 1/16000  in  Movie Mode
      Remote Control DMW-RSL1 (Optional)
      Metering Method Center-weighted average metering, Multiple, Spot metering
      Exposure Modes Modes: Aperture Priority, Manual, Program, Shutter Priority
      Metering Range: EV 0.0 - EV 18.0
      White Balance Modes Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set
      Continuous Shooting Up to 40 fps  frames
      Flash
      Flash Modes Auto
      Auto/Red-eye Reduction
      Forced On
      Forced On/Red-eye Reduction
      Off
      Slow Sync
      Slow Sync/Red-eye Reduction
      Built-in Flash Yes
      Max Sync Speed 1 / 250 seconds
      Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
      Dedicated Flash System TTL
      External Flash Connection Hot Shoe
      Performance
      Self Timer 10 seconds, 2 seconds
      Number of Shots: 1-3
      Interval Recording Yes
      Connectivity 1/8" Headphone, 1/8" Microphone, AV Output, HDMI D (Micro), USB 2.0, Wired Remote Port
      Wi-Fi Capable Yes
      Software System Requirements Windows: XP, Vista, 7, 8
      Mac: OS X 10.5 or later
      Power
      Battery 1x Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1860 mAh
      Operating/Storage Temperature Operating
      32 to 104°F (0 to 40°C)
      Humidity: 10 - 80%
      Physical
      Dimensions (WxHxD) 5.2 x 3.7 x 3.3" / 132.9 x 93.4 x 83.9 mm
      Weight 19.75 oz / 560 g with SD card and Battery
      Packaging Info
      Box Dimensions (LxWxH) 7.7 x 5.7 x 5.7"
    • Lumix DMW-YAGH Interface Unit for GH4
      Inputs/Outputs
      Time Code In 1 x BNC, 1.0-4.0 Vp-p, 10 kΩ
      Audio Input (CH 1/2) 2 x XLR 3-pin, high impedance, LINE / MIC / +48 V (switchable)

      LINE: 0 dBu
      MIC: -50 dBu
      +48 V Phantom power compatible, -50 dBu
      SDI Output 4 x BNC (2x 3G-SDI and 2x HD-SDI), 0.8 Vp-p, 75 kΩ

      Embedded audio: 2 channel
      Embedded time code
      HDMI Output 1 x HDMI (type A)

      Embedded audio: 2 channel (linear PCM)
      Video
      Resolutions & Frame Rates 4096 x 2160: 24p
      3840 x 2160: 23.98p, 24p, 25p, 29.97p
      1920 x 1080: 50p, 59.94p (3G-SDI Level-A/B)
      1920 x 1080: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 50i, 59.94i
      1280 x 720: 50p, 59.94p
      Color Sampling 4:2:2
      Bit Depth 8-bit / 10-bit
      Audio
      Sampling Frequency 48 kHz (synchronized with video)
      Audio Quantization 16-bit
      Headroom 12 dB
      General
      Power Source 1 x XLR 4-pin, 12 VDC, 1.5 A (including GH4)
      Operating Temperature 32 to 104°F / 0 to 40°C
      Operating Humidity 10 to 80% (no condensation)
      Dimensions (WxHxD) 6.30 x 2.52 x 3.58" / 16.0 x 6.4 x 9.1 cm (excluding protrusions and HDMI terminal)
      Weight Approx. 1.65 lb (0.75 kg)
      Packaging Info
      Box Dimensions (LxWxH) 9.3 x 6.3 x 5.8"
