User manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU
The user manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

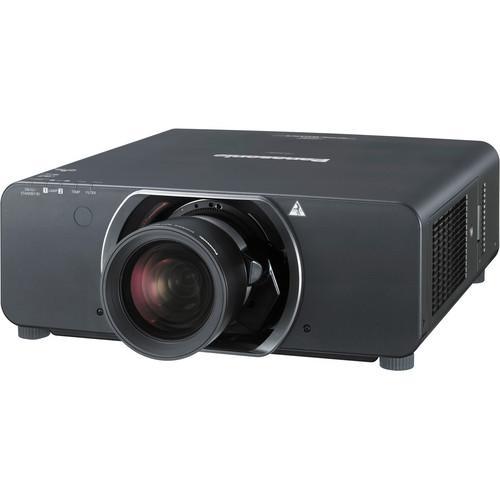

The Panasonic PT-DZ13KU 12,000 Lumens Large Venue DLP Projector features a WUXGA resolution of 1,920 x 1,200 and long lamp replacement cycles of up to 2,000 hours. With 3D compatibility and installation flexibility, this projector is well suited for large-venue applications such as auditoriums, museums and rental and staging that require both maximum brightness and easy handling. The lens memory adjusts the image size and location in up to three different projection positions and the combination of two 380W UHM lamps and the dynamic iris allow the PT-DZ13KU to deliver a 10,000:1 contrast ratio to ensure high brightness and superior picture quality.
|
If you own a Panasonic multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU:
| Display System | 3-Chip 0.96" / 24.38 mm DLP | | Native Resolution | WUXGA - 1920 x 1200 | | Supported Resolutions | WUXGA - 1920 x 1200 | | Format | NTSC
NTSC 4.43
PAL
PAL 60, M, N
SECAM | | Pixels | 6,912,000 | | Brightness | Normal Mode: 12000 Lumens | | Uniformity | 90% | | Aspect Ratio | 16:10 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Color Range | Not Specified By Manufacturer | | Ceiling Mountable | Yes | | Internal Memory | Not Specified By Manufacturer | | Inputs/Outputs | 1x 3G-SDI Video (Input)
1x HD-SDI Video (Input)
1x BNC Audio/Video (Input/Output)
1x DVI-D Video (Input)
1x HDMI Video (Input)
1x 5-BNC Video (Input)
1x 15-pin VGA Video (Input)
1x BNC Video (Output)
1x BNC Composite Video (Input)
1x RS-232C Control (Input)
1x 9-pin VGA Control (Output)
1x M3 Remote (Input)
1x M3 Remote (Output)
1x 9-pin VGA Control
1x Ethernet LAN (Input) | | Lamp (Bulb) | 2x UHM | | Watts | Eco Mode: 380 W | | Life | Not Specified By Manufacturer | | Fan Noise | Bright Mode: 45 dB
Normal Mode: 43 dB
Eco Mode: 37 dB | | Maximum Pixel Clock | 162 MHz | | Remote Control | Yes | | Security | Cable Lock Slot
Padlock
Password Protection | | Power Requirements | 120 VAC50/60 Hz
220-240 VAC, 50/60 Hz | | Heat Dissipation | 3413 BTU | | Power Consumption | Normal Mode: 1000 W
Standby Mode (Normal): 6 W
Standby Mode (Eco): .2 W | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% | | Dimensions (WxHxD) | 20.9 x 7.9 x 21.6" / 530.0 x 200.0 x 548.5 mm | | Weight | 52.9 lb / 23.99 kg | |
The user manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Panasonic users keep a unique electronic library
for Panasonic multimedia projectorss,
where you can use our link to download the user manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU.
The user manual lists all of the functions of the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Panasonic service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP PT-DZ13KU. User manuals are also
available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
