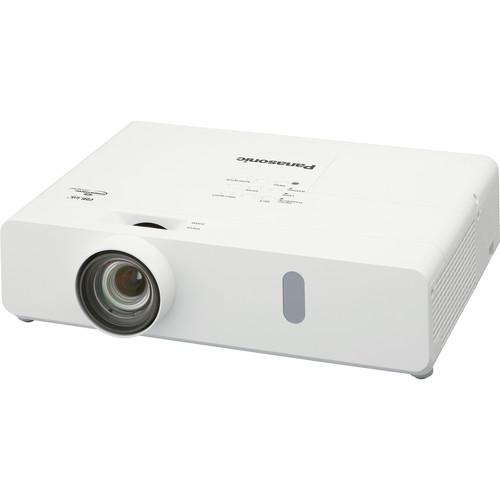

Panasonic  PT-VX420U LCD Projector PT-VX420U
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic PT-VX420U LCD Projector PT-VX420U, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.



User manual for the Panasonic PT-VX420U LCD Projector PT-VX420U

The user manual for the Panasonic PT-VX420U LCD Projector PT-VX420U provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The PT-VX420U LCD Projector from Panasonic offers a brightness of 4500 and contrast ratio of 12,000:1. When projecting onto a 300" wide screen, the included 1.6x zoom lens supports a range of projection distances from 23.5 to 38.2' with 4:3 aspect ratio. The projector comes with an internal 10 W speaker that plays sound in presentations or videos. The projector also features a mic input for playing audio from a connected microphone, without the need for a separate amplifier and speakers. Corner keystone correction allows you to designate four corners on the projection surface and adjust them to create a symmetrical image.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-VX420U LCD Projector PT-VX420U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic  PT-VX420U LCD Projector PT-VX420UDownload user manual for Panasonic PT-VX420U LCD Projector PT-VX420U
(PDF file, 16.12 MB)
Additional parameters of the Panasonic PT-VX420U LCD Projector PT-VX420U:
Specifications
Image Display
Display System LCD
Native Resolution 1024 x 768
Supported Resolutions Maximum: Full HD 1080p @ 60Hz
Format NTSC
PAL
SECAM
Pixels 786,432
Brightness Normal Mode: 4500 Lumens
Uniformity >85%

Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

Aspect Ratio Native: 4:3
Contrast Ratio 12000:1
Lens
Focus Manual
Lens F 1.60 - 1.90 (f = 15.31 - 26.24 mm)
Zoom Manual: 1.6x
Throw Distance 2.3 - 38.2' (0.7 - 11.6 m)

Maximum throw distance with diagonal image size of 300" (762 mm), throw ratio of 1.2-1.9:1, and aspect ration of 16:10

Throw Ratio 1.18 - 1.9:1
Projection Size 30 - 300" / 76.20 - 762.00 cm
Features
Keystone Correction Vertical: ± 40°
Horizontal: ± 30°

±30° for vertical and ±20° for horizontal when using Easy Setting

Ceiling Mountable Yes
Built-in Speaker Yes, 10 W (Mono)
Picture Modes Blackboard
Input/Output Connectors
Inputs/Outputs 1x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Input/Output)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x Ethernet LAN
1x RS-232C Control (Input)
1x USB Type-A Female
1x USB Type-B Female
Wireless LAN Yes
General
Lamp (Bulb) 1x UHM
Replacement Lamp ET-LAV300
Watts 240 W
Life Low Mode: 5000 Hours
Eco Mode: 7000 Hours
Fan Noise Normal Mode: 37 dB
Eco Mode: 29 dB
Remote Control Yes
Security Cable Lock Slot
Password Protection
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Standby Mode (Eco): .5 W
Standby Mode (Network on): 6 W
Standby Mode (Normal): 14 W
Altitude 0 - 7874' (0 - 2399 m)
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 80%

Less than 4,593' (1,400 m) above sea level and High Altitude Mode: Off)

Dimensions (WxHxD) 13.8 x 3.8 x 11.0" / 35.1 x 9.7 x 27.9 cm
Weight 7.3 lb / 3.31 kg approximately
Packaging Info
Package Weight 12.3 lb
Box Dimensions (LxWxH) 19.4 x 14.1 x 7.9"
The user manual for the Panasonic PT-VX420U LCD Projector PT-VX420U can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic PT-VX420U LCD Projector PT-VX420U.
