User manual Parrot BeBop Drone 2 with Skycontroller (Red) PF726100

Operating instructions and pdf manual for use - Parrot BeBop Drone 2 with Skycontroller (Red) PF726100 User manual, User manual Parrot BeBop Drone 2 with Skycontroller (Red) PF726100, Parrot, BeBop, Drone, 2, with, Skycontroller, Red, PF726100,


User manual for Parrot BeBop Drone 2 with Skycontroller (Red) PF726100

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Parrot BeBop Drone 2 with Skycontroller (Red) PF726100
  • Manufacturer: Parrot
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones
  • Safety instructions
  • Startup and operation of the aerial imaging platforms & drones
  • Tips for setting up your Parrot
  • Settings and expert assistance
  • Contact Parrot service
  • Troubleshooting
  • Warranty information
  • Price: 800 USD

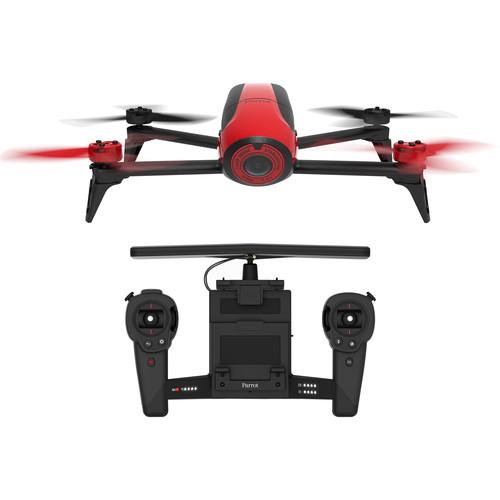

Parrot BeBop Drone 2 with Skycontroller (Red) PF726100 Parrot BeBop Drone 2 with Skycontroller (Red) PF726100
Click to enlarge image

We recommend checking out our discussion threads on the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100, which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones Parrot.



User manual for the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100

The user manual for the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

This bundle from Parrot pairs a red BeBop Drone 2 with 14 Megapixel Flight Camera with a Black Skycontroller. This combination extends the drone's controllable range up to 1.2 miles while adding the tactile feel of a traditional stick-based RC transmitter (radio controller). In addition, the Skycontroller integrates a holder for tablets up to 10.6" to provide a convenient FPV monitor.

The BeBop Drone 2 is a Wi-Fi-based, mobile device-operated RC quadcopter capable of capturing 1080p aerial video and taking 4096 x 3072 resolution still photos. Avoiding the added weight and power consumption of a motorized gimbal, the camera features an electronic image stabilization system that relies on a 3-axis motion sensor and a 180° fisheye lens from which it crops a Full HD image. Updates from the original BeBop include a lower camera angle for direct shots of the ground and a larger battery for up to 25 minutes flying time.

The BeBop Drone 2 is controlled from an Android or iOS mobile device running the FreeFlight 3 App (see Parrot website for latest list of supported devices). Devices with screens up to 10.6" can be mounted directly to the Skycontroller for FPV monitoring. In addition to letting you control the quadcopter, the app provides a real-time preview from the flight camera, and you can even record a low resolution feed directly on your device. For high-res recording you can use the 8GB of built-in memory.

Note: Please address all technical issues directly to Parrot. Contact technical support by phone at 877-9Parrot (877-972-7768).

For more information on the items in this bundle, please follow the links below.
If you own a Parrot aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Parrot BeBop Drone 2 with Skycontroller (Red) PF726100Download user manual for Parrot BeBop Drone 2 with Skycontroller (Red) PF726100
(PDF file, 5.33 MB)
Additional parameters of the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100:
Specifications
  • BeBop Drone 2 with 14 Megapixel Flight Camera (Red)
    Performance
    Flight Time Up to 25 minutes
    Maximum Speed Horizontal: 52.5 ft/s / 16 m/s
    Ascent: 19.7 ft/s / 6 m/s
    Flight Control System
    CPU Dual-core
    GPU Quad-core
    Operating System Linux
    Storage 8 GB internal flash memory
    Sensors Vertical camera (optical flow)
    Ultrasound
    Barometer
    Accelerometer
    Magnetometer
    Gyroscope
    Geo-location GPS
    System Requirements iOS or Android mobile device supporting the FreeFlight 3
    Wi-Fi
    Standard 802.11a/g/n/ac
    Frequency 2.4 / 5 GHz
    Transmit Power Up to 21 dBm
    Range Up to 984.3' / 300 m line-of-sight
    Antennas Dual-band MIMO with two 2.4/5 GHz dipole antennas
    Camera
    Sensor 1/2.3" CMOS
    Lens 6 elements
    Field of View 180°
    Note: The effective field of view for video is less than 180° to accommodate the electronic image stabilization system.
    Resolution Photo: 14 MP (4096 x 3072)
    Video: 1080p30
    Image Stabilization 3-axis electronic image stabilization
    Encoding Video: H.265
    Photo: JPEG, DNG RAW
    Recording Media 8 GB built-in flash memory
    Motors
    Type 4 x Brushless outrunner motors
    Propellers
    Size 6" / 15.2 cm
    Flight Battery
    Chemistry Lithium polymer (LiPo)
    Capacity 2700 mAh
    General
    Construction Glass fiber reinforced (20%) PA12 and Grilamid structure
    Illumination LED running lights
    Dimensions 12.9 x 12.9 x 3.5" / 328 x 328 x 89 mm
    Weight 1.1 lb / 500 g
    Packaging Info
    Box Dimensions (LxWxH) 12.1 x 10.5 x 4.1"
  • Skycontroller with Wi-Fi Range Extender for BeBop Drone 2 (Black)
    CPU Model: Parrot P7
    Operating System: Android 4.2.1
    Processor: 800 MHz Cortex A9
    Wi-Fi Interface 802.11 a/b/g/n, up to 36 dBm
    Standard: MIMO 2.4 and 5 GHz
    Channels: 11 to 13 (2.4 GHz) / 4 to 8 (5 Ghz)
    Range Up to 6561.7' / 2000 m
    GPS Yes
    Connectivity 1 x HDMI output for FPV monitor or glasses
    1 x USB type A female
    1 x Micro-USB (Service/firmware updates)
    2 x MCX: Coaxial RF connector
    System Requirements OS: Android or iOS
    Mobile App: FreeFlight 3
    Hardware: 4:3 device up to 10.6" / 27 cm diagonal or 16:9 device up to 7.9" / 20 cm wide
    Battery Capacity: 2700 mAh
    Discharge Rate: 10 C
    Chemistry: Lithium-ion polymer
    Dimensions 14.6 x 9.1 x 7.5" / 370 x 230 x 190 mm
    Weight 3.4 lb / 1.55 kg with sunshade cover
  • Battery for Bebop Drone 2 and Skycontroller
    Capacity 2700 mAh
    Battery Life Up to 25 minutes
    Charge Time Not Specified by Manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 7.6 x 5.3 x 1.5"
The user manual for the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Parrot users keep a unique electronic library for Parrot aerial imaging platforms & droness, where you can use our link to download the user manual for the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100.

The user manual lists all of the functions of the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Parrot service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Parrot BeBop Drone 2 with Skycontroller (Red) PF726100. User manuals are also available on the Parrot website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
