User manual Peavey KB 2 Keyboard Amplifier 00573140

Operating instructions and pdf manual for use - Peavey KB 2 Keyboard Amplifier 00573140 User manual, User manual Peavey KB 2 Keyboard Amplifier 00573140, Peavey, KB, 2, Keyboard, Amplifier, 00573140, Video


User manual for Peavey KB 2 Keyboard Amplifier 00573140

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Peavey  KB 2 Keyboard Amplifier 00573140
  • Manufacturer: Peavey
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Keyboard Accessories - Keyboard Amplifiers
  • Safety instructions
  • Startup and operation of the keyboard amplifiers
  • Tips for setting up your Peavey
  • Settings and expert assistance
  • Contact Peavey service
  • Troubleshooting
  • Warranty information
  • Price: 280 USD
We recommend checking out our discussion threads on the Peavey KB 2 Keyboard Amplifier 00573140, which address similar problems with connecting and setting up Keyboard Amplifiers Peavey.



User manual for the Peavey KB 2 Keyboard Amplifier 00573140

The user manual for the Peavey KB 2 Keyboard Amplifier 00573140 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Keyboard Accessories - Keyboard Amplifiers.

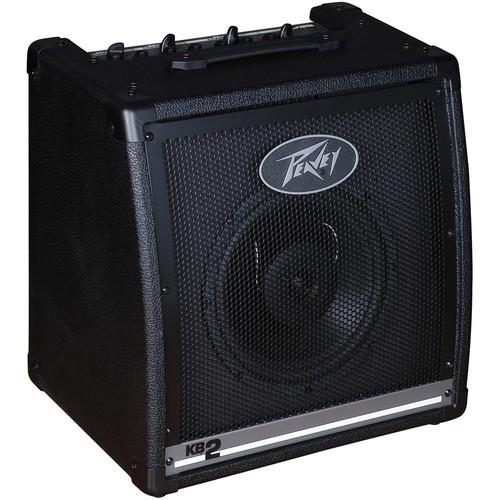

The Peavey KB 2 Keyboard Amplifier is designed for amplifying the sound of the human voice, keyboards, acoustic guitars, electric guitars, drum machines, backing machines, and more. The unit uses a 10" coaxial speaker, powered by 45W RMS of amplification for the woofer and 12W RMS for the tweeter into 8 ohm loads.

The amplifier features four separate input channels. Channels 1 and 2 have 1/4" inputs, each with a 2-band EQ control. Channel 3 features both an XLR and 1/4" input with 3-band EQ controls. Channel 4 features a 1/4" monitor input with level control. For outputs the unit includes both a headphone output as well as a balanced XLR main output. The headphone output automatically disengages the speaker when a pair of headphones are plugged in. For incorporating external processing, the unit also includes both FX send and return inputs and outputs.
If you own a Peavey keyboard amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey KB 2 Keyboard Amplifier 00573140 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey KB 2 Keyboard Amplifier 00573140:
Specifications
    Inputs Channel 1: 1/4"
    Channel 2: 1/4"
    Channel 3: 1/4" and XLR-3M
    Channel 4: 1/4" monitor with level control
    Return: 1/4"
    Output Headphone: 1/4"
    Main: XLR-3F
    Send: 1/4"
    Driver 10" coaxial
    Rated Power Low Channel: 45 W RMS into 8 Ohms
    High Channel: 12 W RMS into 8 Ohms
    Input Impedance Channel 1: 100 kilohms
    Channel 2: 100 kilohms
    Channel 3 Low Z: 10 kilohms
    Channel 3 High Z: 75 kilohms
    Channel 4: 10 kilohms
    Nominal Input Level Channel 1: 1.5 dBV, 1.2 V RMS
    Channel 2: 1.5 dBV, 1.2 V RMS
    Channel 3 Low Z: -21 dBV, 89 mV RMS
    Channel 3 High Z: -38 dBV, 89 mV RMS
    Channel 4: 0 dBV, 1 V RMS
    Minimum Input Level Channel 1: -16 dBV, 158 mV RMS
    Channel 2: -16 dBV, 158 mV RMS
    Channel 3 Low Z: -38 dBV, 13 mV RMS
    Channel 3 High Z:-38 dBV, 13 mV RMS
    Channel 4: -25 dBV, 56 mV RMS
    Headphone Impedance 8 Ohms or greater
    Headphone Output 100 mW RMS
    Output Impedance < 100 Ohms
    Output Level 18 dBV
    Dynamic Range Greater than 20 dB
    THD Below 0.5% THD for 6 dB overload
    Below 1% THD for 20 dB overload
    Hum and Noise Greater than 90 dB below rated power
    Power Consumption 150 W at 120 VAC, 50/60 Hz, Domestic
    150 W at 220-230/240 VAC at 60 Hz, Export
    Crossover Fixed 18 dB/octave at 3,500 Hz
    Dimensions (W x H x D) 16.6200 x 22.1200 x 21.1200" (42.2148 x 56.1848 x 53.6448 cm)
    Weight 34.000 (15.422 kg)
    Packaging Info
    Package Weight 39.8 lb
    Box Dimensions (LxWxH) 26.0 x 21.0 x 17.0"
    The user manual for the Peavey KB 2 Keyboard Amplifier 00573140 can be downloaded in .pdf format if it did not come with your new keyboard amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey keyboard amplifierss, where you can use our link to download the user manual for the Peavey KB 2 Keyboard Amplifier 00573140.

    The user manual lists all of the functions of the Peavey KB 2 Keyboard Amplifier 00573140, all the basic and advanced features and tells you how to use the keyboard amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Peavey service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Peavey KB 2 Keyboard Amplifier 00573140. User manuals are also available on the Peavey website under Pro Audio - Musical Instruments - Keyboard Accessories - Keyboard Amplifiers.
