User manual Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300

Operating instructions and pdf manual for use - Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300 User manual, User manual Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300, Peavey, PV6, USB, Live, Sound, Mixer, with,


User manual for Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300
  • Manufacturer: Peavey
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Peavey
  • Settings and expert assistance
  • Contact Peavey service
  • Troubleshooting
  • Warranty information
  • Price: 130 USD
We recommend checking out our discussion threads on the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300, which address similar problems with connecting and setting up Sound Reinforcement Mixers Peavey.



User manual for the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300

The user manual for the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

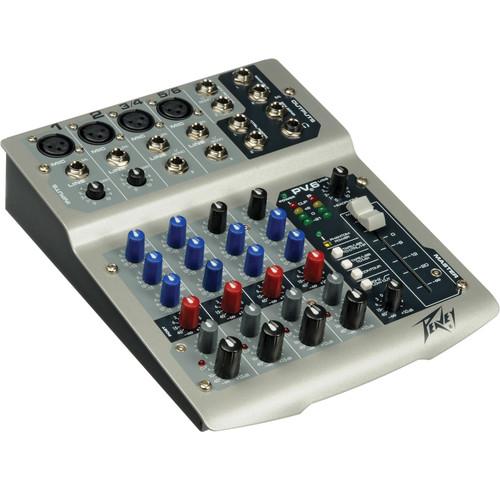

The Peavey PV6 USB Sound Reinforcement Mixer features a total of 6 input channels and RQ (Reference Quality) microphone inputs that deliver transparent audio fidelity with low noise. Two of the 6 input channels are dedicated stereo channels for keyboards, stereo player devices, drum machines, etc. The USB port provides direct connectivity to any Mac or Windows PC.

A 3-band EQ section is featured on the two mono channels, while the two stereo channels have 2-band EQ. The mixer also features an external effects buss, allowing a reverb unit or similar processor to be easily patched in. Globally switched +15V phantom power is supplied to condenser microphones. The PV6 is an ideal sound reinforcement mixer for small venue installation, schools, house-of-worship audio, etc.
If you own a Peavey sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300Download user manual for Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300
(PDF file, 13.1 MB)
Additional parameters of the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300:
Specifications
    Total # Of Inputs 6
    Mic/Line Inputs 6 Line: 1/4" TRS Phone
    4 Microphone: 3-pin XLR
    Stereo Line Inputs 2 Stereo
    In-Line Inputs/Returns No
    AUX Sends Single Stereo Effects Output
    AUX Returns Stereo L/R Effects Return
    Inserts All Channels
    BUS (Group) Outputs Stereo Output
    2 Trk Master I/O CTRL Room: Stereo Paired 1/4" Phone
    ALT I/O ALT Stereo: L/R Stereo Paired 1/4" Output
    Main Output: L/R Stereo Paired 1/4" Output USB
    Monitor Outputs Monitor Send
    EQ Section 3-Band
    Solo/Mute All Input Channels
    Channel Level Control 60mm Faders
    Trim/Gain Control Rotary Potentiometers
    Phantom Power +15V, switchable
    Metering 6 Segment, Peak Reading (0dB = +4dBu)
    Frequency Response 20Hz to 20kHz < 1dB
    Dynamic Range Not Specified by Manufacturer
    Signal-to-Noise Ratio Master Left / Right: 102dB
    Total Harmonic Distortion (THD) <0.01% 20Hz to 20kHz Mic to Left/Right Output (10Hz to 80kHz BW)
    Power Supply Domestic: 16VAC 60Hz, 12W Nominal
    Dimensions (WxHxD) 7.55 x 2.76 x 9.7" (19.18 x 7.0 x 24.68cm)
    Weight 5.1 lbs (2.31kg)
    Packaging Info
    Package Weight 5.95 lb
    Box Dimensions (LxWxH) 14.7 x 10.5 x 4.4"
    The user manual for the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300 can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey sound reinforcement mixerss, where you can use our link to download the user manual for the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300.

    The user manual lists all of the functions of the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Peavey service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Peavey PV6 USB Live Sound Mixer with 6 Channels and USB 03513300. User manuals are also available on the Peavey website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
