User manual Pelco 8" Small Outdoor Enclosure EH3508-2/MT

Operating instructions and pdf manual for use - Pelco 8" Small Outdoor Enclosure EH3508-2/MT User manual, User manual Pelco 8" Small Outdoor Enclosure EH3508-2/MT, Pelco, 8, Small, Outdoor, Enclosure, EH3508-2/MT,


User manual for Pelco 8" Small Outdoor Enclosure EH3508-2/MT

Pelco 8
  • Manufacturer: Pelco
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Mounts & Housings - Housings
  • Safety instructions
  • Startup and operation of the housings
  • Tips for setting up your Pelco
  • Settings and expert assistance
  • Contact Pelco service
  • Troubleshooting
  • Warranty information
  • Price: 170 USD
We recommend checking out our discussion threads on the Pelco 8" Small Outdoor Enclosure EH3508-2/MT, which address similar problems with connecting and setting up Housings Pelco.



User manual for the Pelco 8" Small Outdoor Enclosure EH3508-2/MT

The user manual for the Pelco 8" Small Outdoor Enclosure EH3508-2/MT provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

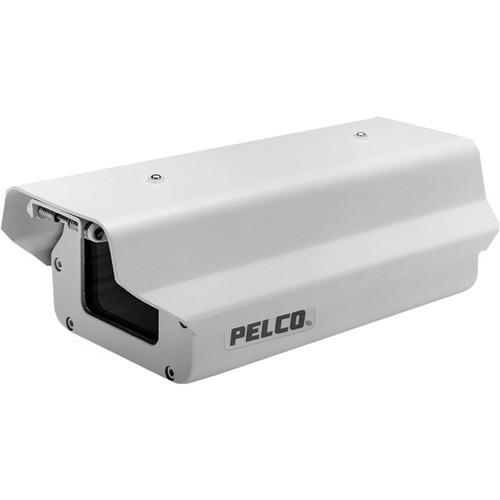

The Pelco EH3508-2MT 8" Enclosure is designed for both indoor and outdoor applications. The unit, one of the smallest outdoor enclosures from Pelco, is suitable for small cameras and fixed mount applications. The die cast and extruded aluminum construction make the enclosure sustainable and recyclable.

The enclosure can accommodate fixed focal length lenses or motorized zoom lenses, with or without auto-iris. For applications that require additional security, this small outdoor enclosure features a rear link-lock latch that can be used with a padlock of suitable size, a front hinged lid, and two flexible cable glands at the bottom.
If you own a Pelco housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco 8" Small Outdoor Enclosure EH3508-2/MT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco 8" Small Outdoor Enclosure EH3508-2/MT:
Mount Type Pedestal: EM1009U / EM1015U
Wall: EM1450 / EM2400 (indoor) / EM1900U
Pipe/Pole: EM1109 / EM2000 / EM2200
Compatible Cameras Fixed CCTV camera
Maximum Camera/Lens Size WxHxD: 2.9 x 3 x 5" (7.3 x 7.6 x 12.7cm)
Clear or Tinted Clear
Construction Material: Extruded and die-cast aluminum with gray polyester powder coat

Viewing Window: 0.187" (4.75 mm) thick Lexan

Camera Mounting: Multiple holes on adjustable camera sled; camera sled mounts in threaded strip for easier removal and can be inverted for additional camera elevation

Cable Entry: Two PG13.5 compression glands on bottom; maximum cable diameter 0.47" (1.19 cm)
Heater/Blower Thermostatically controlled heater activates on at 50°F (10°C); off at 80°F (27°C)

Defroster operates continuously
Enclosure Rating Meets NEMA Type 4 standards
Operating Temperature -10 ~ 120°F (-23 ~ +49°C)
Power Requirements 24VAC
Power Consumption 20W
Dimensions (WxHxD) 5.1 3.9 x 10.8" (13.1 x 9.9 x 27.3cm)
Weight 2.8 lbs (1.3kg)
Packaging Info
Package Weight 5.9 lb
Box Dimensions (LxWxH) 17.0 x 9.0 x 7.0"
The user manual for the Pelco 8" Small Outdoor Enclosure EH3508-2/MT can be downloaded in .pdf format if it did not come with your new housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco housingss, where you can use our link to download the user manual for the Pelco 8" Small Outdoor Enclosure EH3508-2/MT.

The user manual lists all of the functions of the Pelco 8" Small Outdoor Enclosure EH3508-2/MT, all the basic and advanced features and tells you how to use the housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pelco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pelco 8" Small Outdoor Enclosure EH3508-2/MT. User manuals are also available on the Pelco website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
