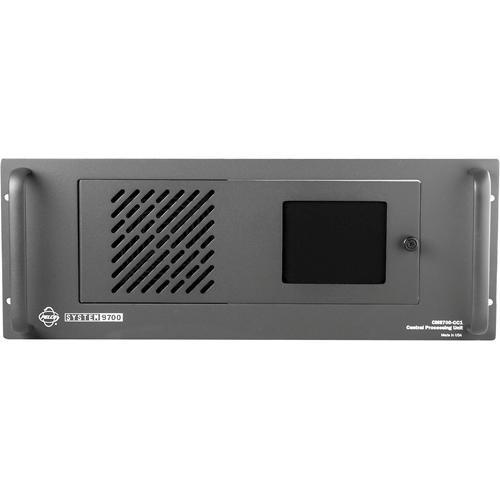

The Pelco Central Processing Unit for Microprocessor-Based Switcher is one of the core components of a Pelco advanced video switching control system. The unit functions for the system in tandem with the keyboard controllers and matrix switching bays.

The role of the Central Processing Unit is to interact through RS-422 COM ports with external devices like dome receivers or matrix switching bays and take instructions/ commands from GUI, intercom systems, external computers, access control system, and programmable logic controllers.
If you own a Pelco matrix components and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco CM9700-CC1 Matrix CPU Controller (CC1) CM9700-CC1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco CM9700-CC1 Matrix CPU Controller (CC1) CM9700-CC1:
Specifications
    Video Outputs (for diagnostic monitor)

    VGA x1
    RCA x1
    S-Video x1
    Control Ports RS-422 x16 (expandable to 32 by adding two CM9700-SER serial communication cards)
    RS-232 x2
    Parallel printer port x1
    Keyboard port x2 (PC-AT compatible)
    Power Requirements 120-230VAC
    Power Consumption 57W
    Operating Temperature 32 - 120°F (0 - 49°C)
    Dimensions (WxHxD) CPU (4 RU): 19 x 7 x 19.5" (483 x 178 x 495mm)
    Weight 29.7 lbs (13.5kg)
    Packaging Info
    Box Dimensions (LxWxH) 24.5 x 17.0 x 17.0"
