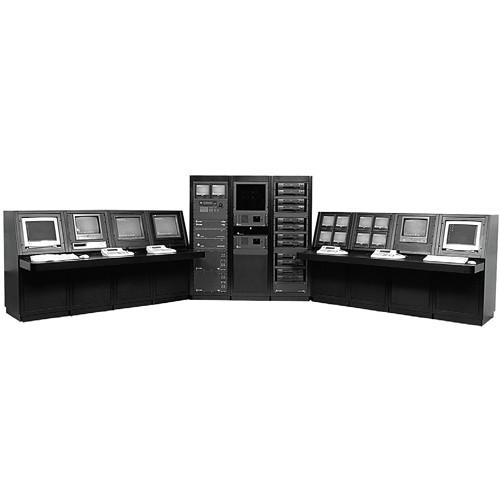

The Pelco CM9780 Microprocessor-Based Switcher (256 Inputs, 32 Outputs) is a fully featured video matrix switching control system that allows users to view and control up to 4,096 cameras and 512 monitors on a single node. Expanded monitor capacity in the matrix bay allows implementation of larger systems with a small footprint (less hardware).

The base configuration for this switcher is made up of a central processing unit (CC1), matrix switching bay(s) (MXBs) with video input / output modules, and keyboard controllers (KBDs). Optional components can be added to enhance system capabilities.

Preconfigured, prepackaged systems make installation fast and simple. The microprocessor-based switcher features a user-friendly windows-based management system, which allows for easy system programming and maintenance.

The central processing unit communicates with external devices and accepts commands from external computers, keyboards, graphical user interfaces (GUIs), access control systems, casino data systems, programmable logic controllers (PLCs), and lighting and intercom systems. An internal VGA card is included for displaying system diagnostics and programming. RS-422 COM ports are provided for communication with external devices such as matrix switching bays, pan / tilt, or dome receivers, and keyboards.

Each bay includes a power supply and mounting baffle, and will support modules for up to 512 camera inputs and 32 monitor outputs. Cameras are connected to CM9700-VPP patch panels, which are then connected to the matrix bay with video ribbon cables. Monitors connect directly to rear panel BNC cards installed on the matrix bay. Multiple bays can be used to expand a single CPU system to a maximum of 4,096 camera inputs and 512 monitor outputs. An optional backup power supply module (MPS) can be installed in each bay to provide redundancy.

Macros allow activation of events based on schedule or alarm. Macros may call system-wide sequences (tours); activate preset positions on properly equipped cameras; and activate external relays to control auxiliary functions such as locking doors (additional equipment may be required). The 9780 system also includes built-in video loss detection and system diagnostic features, indicated by LEDs on the front panel of the matrix bay. Flash technology incorporated into the system design allows for easier system maintenance and upgrades.

Optional DVR management allows DVRs to be controlled directly from the system keyboards. Suitable DVRs can be monitored for operational conditions ensuring continuous recording.
If you own a Pelco matrix switches and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco CM9780 Microprocessor-Based Switcher CM9780L256X32 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco CM9780 Microprocessor-Based Switcher CM9780L256X32:
Central Processing Unit
Input Voltage 120 VAC, 60 Hz or 230 VAC, 50 Hz, autoranging
Power Consumption 57 W maximum
Monitor Output Diagnostric: 1x VGA
I/O Ports 16x RS-422 ports (expandable to 32); total system capability is 120 ports, 2x RS-232 ports, 1 parallel printer port, 1 VGA output port, 2x PC-AT compatible keyboard ports

CM9700-CC1 is equipped with 16x RS-422 COM ports; total capacity can be expanded to 32 ports by adding 2x CM9700-SER serial communication cards (8 ports each)

Certifications CE, Class A, FCC, UL / cUL listed, C-Tick
Operating Temperature 32 to 120°F (0 to 49°C)
Dimensions (DxWxH) 19.50 x 19.00 x 7.00" (49.53 x 48.26 x 17.78 cm)
Mounting Fits 19" (2.54 cm) EIA-standard rack (4 RUs)
Matrix Switching Bay
Input Voltage 100 to 240 VAC, 50/60 Hz, autoranging
Power Consumption 60 W maximum (fully populated)
Communication Full duplex RS-422 using an RJ-45 connector
Bandwidth 15 MHz
Signal-to-Noise Ratio -70.5 dB
Adjacent Channel Crosstalk -60.9 dB at 3.58 MHz
Differential Gain 0.51%
Differential Phase 0.38°
Tilt Line: 0.40%
Field: 0.59%
Switching Time 16 ms
Inputs Card slots support up to 512 inputs per bay
Outputs 2x output card slots for supporting 32 outputs per bay
Video Input Level 0.5 to 2 Vpp, RS-170 composite video
Impedance 75 Ω terminating (looping)
Sync Vertical: The Pelco V-Sync signal (sent up the coaxial cable) provides a synchronization pulse, which allows roll-free switching between cameras within the same matrix bay
Drive Vertical: Input connector available on rear panel
Overall Frequency Response Flat to 8 MHz
Luminance Nonlinearity 20%
Operating Temperature 32 to122°F (0 to 50°C), non-condensing
Dimensions (DxWxH) Matrix Bay: 21.70 x 19.00 x 10.50" (55.10 x 48.26 x 26.67 cm)
Mounting Baffle: 24.00 x 19.00 x 1.75" (60.96 x 48.26 x 4.45 cm)
CM9700-VPP: 6.00 x 19.00 x 1.07" (15.24 x 48.26 x 2.72 cm)
CM9700-VPP-RK: 14.12 x 19.00 x 13.96" (35.86 x 48.26 x 35.46 cm)

Total height of MXB with baffle installed is 12.25" (31 cm)

Mounting Fits 19" (2.54 cm) EIA-standard rack (Matrix Bay: 6 RUs; Mounting Baffle: 1 RU)
Certifications CE, Class A, FCC, UL / cUL listed, C-Tick
The user manual for the Pelco CM9780 Microprocessor-Based Switcher CM9780L256X32 can be downloaded in .pdf format if it did not come with your new matrix switches, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco matrix switchess, where you can use our link to download the user manual for the Pelco CM9780 Microprocessor-Based Switcher CM9780L256X32.
