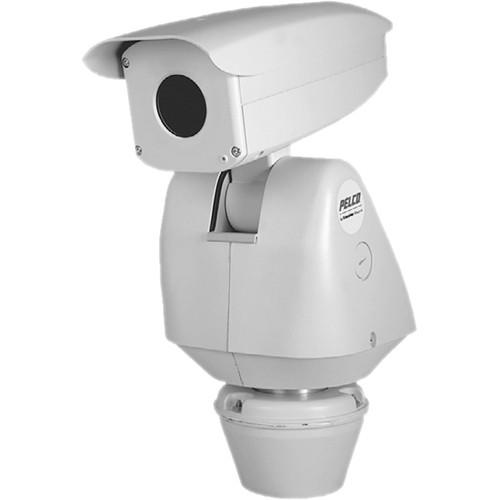

The Pelco ESTI314-2N Thermal IP Positioning System with Pedestal Mount (NTSC) is an advanced thermal imaging pan/tilt system designed for easy integration into any new or existing video security application. The system is designed to provide detection, recognition, and identification of people and vehicles in any lighting condition, including complete darkness. Every ESTI314-2N features IP or analog outputs in the same package and an integrated environmentally protected IP66 rated enclosure with Esprit pan/tilt positioner, which can be controlled using IP or analog systems that use Coaxitron or RS-422 Pelco D and Pelco P protocols. Additionally, when used in an IP system, the features a full suite of designed-for-thermal analytics.
If you own a Pelco wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco ESTI314-2N Thermal IP Positioning System ESTI314-2N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco ESTI314-2N Thermal IP Positioning System ESTI314-2N:
Camera
Detectors Sun-safe, uncooled microbolometer, amorphous silicon
Array Format 384 x 288 (QVGA)
Pixel Size 25 μm
Effective Resolution 110,592
Spectral Response 7.5 to 13.5 μm, LWIR
Normalization Source Internal shutter (offset only), 0.3 second video freeze during shutter
Display Formats White hot, black hot, and color signatures
Lens
Focal Length 14.25 mm
F-Number (f) 1.3
Field of View 39 x 29 x 48°
Video
Video Encoding H.264 High, Main, or base profiles and MJPEG
Video Streams Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream
Frame Rate Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7.5, 6, 5, 4, 3, 2.5, 2, 1 (dependent upon stream configuration)
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP)
Users Unicast: Up to 20 simultaneous users depending on resolution settings (2 guaranteed streams)
Multicast: Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup
Pelco System Integration Endura 2.0 (or later) Digital Sentry 4.2 (or later)
Analog
Port Video/Coaxitron Port: 75 ohms, unbalanced
Video Modes NTSC, concurrent with digital streaming video
Video Level 1 Vp-p normal, 1.2 Vp-p hot
Range Detection: 1050' (320 km)
Recognition: 264' (80 m)
Identification: 132' (40 m)
Electrical
Ethernet Port Inline RJ-45 for 100Base-TX, auto MDI/MDI-X
Ethernet Cabling Cat5 or better for 100Base-TX
Input Power 24/120/230 VAC, 50/60 Hz, switch selectable for 120/230 VAC
Power Supply Input Range +15 / -20%
Power Consumption 4.0 A, 120 VA (110 W)
Fuse 24 VAC Fuse : 6.3 A, slow-blow
Heater Thermostat controlled
Local Storage microSD
Alarm Inputs N.O. switch, N.C. switch, or 1 kohm; supervised
Relay Output Mechanical
Voltage: 60 VDC, 125 VAC
Current: 1 A
Power: 62.5 VA, 30 W
Solid-State
Voltage: Voltage: 60 V
Current: 600 mA
Audio Maximum Input: Level 1 VRMS
Input Impedance: 600 ohms, differential
Cable Type: unshielded twisted pair (UTP)
Optional Active
Microphone Power 12 VDC, 10 mA maximum
Serial Port 4-wire, RS-422/RS-485 (Pelco D or Pelco P)
Cabling Type Serial Control Cabling: UTP
Mechanical
Pan Movement 360° continuous pan rotation
Vertical Tilt 33 to -79° unobstructed from horizon
Pan & Tilt Speed Analog Control
Pan: 0.5 to 40°/sec , 100°/sec turbo
Tilt: 0.5° to 20°/sec
IP Control
Pan: 0.1° to 100°/sec
Tilt: 0.1° to 30°/sec
Preset Speeds Pan: 100° per second
Tilt: 30° per second
Latches 2 captive Torx screws
Faceplate Glass 4 Torx screws
Cable Entry 2 adjustable 0.5" NPT liquid-tight glands
General
Construction Aluminum
Environment Indoor/outdoor
Operating Temperature -40 to 122°F (-40 to 50°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Dimensions (HxD) 14.28 x 14.42" (36.27 x 36.62 cm)
