User manual for the Pelco Sarix IMP Series IMP219-1I 2MP Indoor Day/Night IMP219-1I

The user manual for the Pelco Sarix IMP Series IMP219-1I 2MP Indoor Day/Night IMP219-1I provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

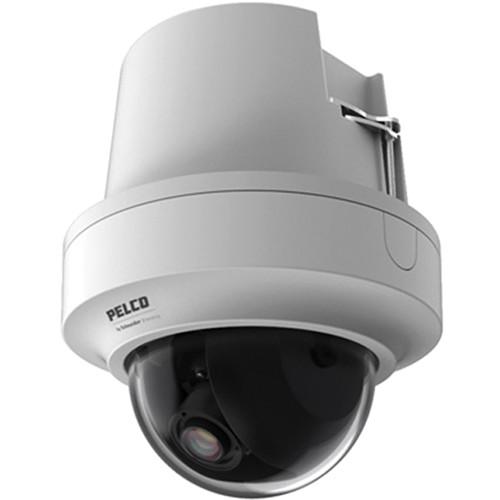

The white Sarix IMP Series IMP219-1I 2MP Indoor Day/Night In-Ceiling Mount Mini Dome IP Camera from Pelco features a 3 to 9mm remote zoom autofocus lens for wide angle or long range surveillance needs. Autofocus capability ensures that the camera can be automatically refocused when needed. The camera features advanced color accuracy and a mechanical IR-cut filter for increased sensitivity in low-light installations.
If you own a Pelco wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco Sarix IMP Series IMP219-1I 2MP Indoor Day/Night IMP219-1I in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco Sarix IMP Series IMP219-1I 2MP Indoor Day/Night IMP219-1I:
Specifications
    Camera
    Sensor 1/3.2" CMOS
    Sensor Resolution 2.1 MP, 1920 x 1080
    Imager Readout Progressive Scan
    Electronic Shutter Speed 1/5 to 1/10,000 sec
    Dynamic Range 65 dB
    White Balance 2,500 to 8,000 K
    Noise Reduction Yes (on/off selectable)
    Minimum Illumination f/1.2, 33 ms: 0.30 lux color, 0.10 lux mono
    f/1.2, 200 ms: 0.02 lux color, 0.01 lux mono
    Pan/Tilt Adjustment Manual; 355° pan, 75° tilt, 360° rotate
    Lens
    Type Built-in; varifocal
    Focal Length 3 to 9 mm, f/1.2
    Focus Autofocus, motorized
    Zoom Remote
    Auto Iris DC drive, P-iris
    Field of View 4:3 Aspect Ratio:
    Diagonal: 85° (W), 29° (T)
    Horizontal: 67° (W), 23° (T)
    Vertical: 49° (W), 17° (T)

    16:9 Aspect Ratio:
    Diagonal: 94° (W), 32° (T)
    Horizontal: 81° (W), 28° (T)
    Vertical: 44° (W), 16° (T)

    Field of view may vary with changes in resolution settings

    Video
    Video Streams Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream
    Video Overlay Camera name, time, date
    Available Resolutions 16:9 Aspect Ratio:
    2.1 MP (1920 x 1080)
    0.9 MP (1280 x 720)
    0.6 MP (1024 x 576)
    0.5 MP (960 x 540)
    0.1 MP (320 x 180)

    4:3 Aspect Ratio:
    1.9 MP (1600 x 1200)
    1.2 MP (1280 x 960)
    0.5 MP (800 x 600)
    0.3 MP (640 x 480)
    0.1 MP (320 x 240)
    Frame Rates 30 (full), 20, 25, 16.67, 15, 12.5, 10, 5, 1 ips

    Available frame rates are selectable for each independent stream depending on the coding, resolution, and stream configuration.

    Video Encoding H.264 High or Main profiles; and MJPEG
    Bitrate Control Constant bit rate (CBR), variable bit rate (VBR) with target range
    Stream Type Service: 320 x 240 (0.1 MP) or 320 x 180; 2 ips, MJPEG
    Snapshot JPEG capture at resolution of live view stream
    Privacy Masking 4 configurable windows
    Audio
    Streaming Dual-channel
    Input Line in/terminal block
    Encoding G.711 A-law/G.711 U-law
    Networking
    Port RJ-45 connector for 100Base-TX
    Supported Protocols TCP/IP, UDP/IP (unicast, multicast IGMP), ICMP, IPv4, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS
    Users 1 administrator, up to 4 viewers
    Multicast: Unlimited users H.264
    Security Access Multiple user access levels with password protection
    Alarm
    Input 1
    Output 1; PhotoMOS relay (30 V, 1 A)
    Triggers Unsupervised mode that detects switch closures (N.O. and N.C.)
    Integration
    Video Management Software Digital Sentry 7.3 (or later), Endura 2.0 (or later), third-party VMS through Pelco API 1.0, and ONVIF Profile S
    Mobile Application Support Integrated to Pelco Mobile App
    Video Motion Detection Simple motion detection and camera sabotage
    Local Storage Capture 5- or 10-sec video clips on camera sabotage, motion detection, or alarm input
    Record video continuously in the case of network outage with the option to overwrite
    Video access through FTP protocol
    Firmware Upgrade Cameras discovered and firmware upgrade through Pelco Device Utility 2 version 2.2 and Endura Utilities
    System Requirements
    Processor Intel Pentium 4, 2.4 GHz or equivalent
    RAM 1 GB
    Monitor 1024 x 768 resolution, 16- or 32-bit color
    Operating System Windows XP, Vista (32/64-bit), Windows 7 (32-/64-bit)
    Web Browser Microsoft Internet Explorer 8.0 and later
    Media Player Pelco Media Player or QuickTime 7.6.5 for Windows XP, Windows Vista, and Windows 7, or QuickTime 7.6.4 for Mac OS X 10.4 (or later)
    Power
    Input PoE (IEEE 802.3af) Class 2; 24 VAC nominal, 18 to 32 VAC range
    Consumption <6 w

    Note: To avoid damage to the unit, never connect more than one type of power supply (PoE IEEE802.3 Ethernet Class 3 or 24 VAC power plug) at the same time

    Certifications and Approvals
    Certifications CE - EN 55022 (Class A), EN 50130-4, EN 60950-1
    FCC (Class A) - 47 CFR Part 15
    UL and cUL Listed - UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
    ICES-003
    KCC
    NOM
    Environmental
    Temperature Operating: 14 to 122°F (-10 to 50°C)
    Storage:-40 to 140°F (-40 to 60°C)

    Thermostatically controlled heating provides ramped heating control between the initial heater on at 59°F (15°C) and full heating mode at -40°F (-40°C)

    Operating Humidity 20 to 85%, RH condensing
    General
    Memory Card Support Up to 32 GB microSDHC or SDXC card
    Construction Plastic body, polycarbonate bubble
    Dimensions When Flush Mounted: 5.93 x 3.73" (150.62 x 94.74 mm); Overall: 5.93 x 7.07" (150.62 x 179.58 mm)
    Dome Diameter 3.74" (95.00 mm)
    Other Requirements Clearance above Ceiling: 4" (102 mm)
    Maximum Ceiling Thickness: 1.5" (38.1 mm)
    Weight 1.34 lb (0.61 kg)
    Packaging Info
    Package Weight 3.7 lb
    Box Dimensions (LxWxH) 11.102 x 7.008 x 6.693"
