User manual for the Pentax AF540FGZ II Flash 30456
The user manual for the Pentax AF540FGZ II Flash 30456 provides
necessary instructions for the proper use of the product Photography - Flashes & On Camera Lighting - On Camera Flashes.

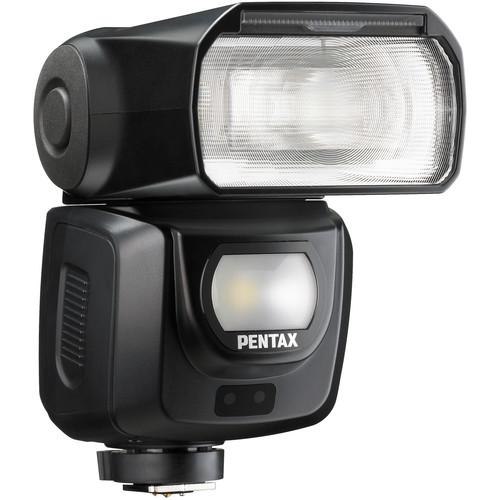

Complete your durable, rugged All Weather camera setup with the P-TTL capable AF540FGZ II Flash from Pentax which features 28 seals, including the hot shoe, that enable a reliable weather-resistant digital imaging system. This unit has a guide number of 177' at ISO 100 and 85mm along with a 35mm equivalent zoom range of 24-85mm, though the auto zoom function is compatible with smaller format Q-series mirrorless cameras, APS-C DSLRs, and medium format 645-series digital cameras. Also, with the use of a built-in diffusion panel the coverage can be extended to 20mm. Another benefit of this flash is tilt from -10 to 90° and rotation 135° to the left and 180° to the right for complete bounce functionality.
The AF540FGZ II has wireless master and slave TTL capabilities with access to 4 channels. It utilizes an optical pulse to transmit information and trigger flash units up to 13.1' away. Also, this unit can be set as a master, control, or slave unit and has access to a contrast control sync setting that enables the adjustment of the output of multiple flashes from a single unit.
An added feature for this flash is a constant LED light with 5 output settings for use during video, as an AF assist light, or as simply another light for your subject. Other settings include a multi-flash mode for stroboscopic photography as well as slow, high-speed, first and second curtain sync. Additionally, the AF540FGZ II runs on 4 AA batteries with a recycle time of 2.6-26.2 seconds and it comes with a case and stand.
|
If you own a Pentax on camera flashes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Pentax AF540FGZ II Flash 30456 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Pentax AF540FGZ II Flash 30456:
| Mount | Shoe | | Guide No. | 177.17' (54 m) ISO100 | | Angle of Coverage | 31° - 78° Horizontal
Wide-Angle Adapter: 98° Horizontal
23° - 60° Vertical
Wide-Angle Adapter: 85° Vertical | | Vari-Power | 1/1 - 1/256 | | Bounce Head | +90° to -10° | | Swivel Head | 315° | | Coverage | 20 mm - 85 mm (Full frame) | | Distance Range | 2.62 to 26.25' (0.8 to 8.0 m) at f/5.6 | | Zoom Head | Full frame: 24 mm - 85 mm | | Recycle Time | Approximately 3 - 5 seconds | | Flash Duration | 1/1200 - 1/20000 sec | | Flash-ready Indicator | Yes | | Compensation | -4 EV to +2 EV (in 1/3 and 1/2 EV steps) | | Wireless Operation | Method: Optical pulse
Distance: Up to 13.12' / 4.0 m | | Wireless Communication Channels | 4 Channels | | Power Source | 4x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (WxHxD) | 3.0 x 4.4 x 4.3" / 76.0 x 113.0 x 108.0 mm | | Weight | 12.35 oz / 350 g | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.0 x 4.1 x 2.4" | |
