User manual Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961

Operating instructions and pdf manual for use - Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 User manual, User manual Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961, Pentax, K-50, DSLR, Camera, with, 18-135mm, Lens, White, 109


User manual for Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

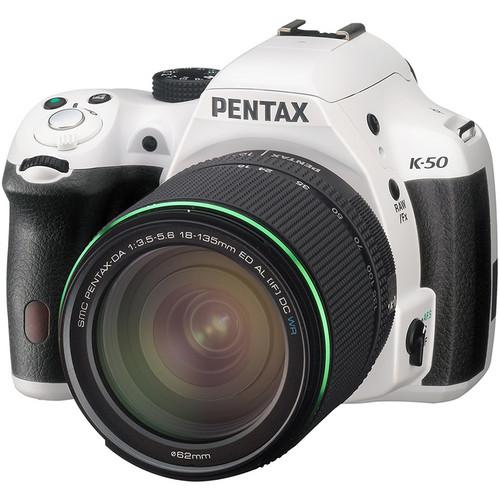

Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961
  • Manufacturer: Pentax
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Pentax
  • Settings and expert assistance
  • Contact Pentax service
  • Troubleshooting
  • Warranty information
  • Price: 649 USD
Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961
Click to enlarge image

We recommend checking out our discussion threads on the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961, which address similar problems with connecting and setting up DSLR Cameras Pentax.



User manual for the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961

The user manual for the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

The white Pentax K-50 DSLR Camera features a 16.3 megapixel APS-C sized CMOS sensor and PRIME M image processing engine to produce high quality imagery while delivering fast performance throughout the entire camera system. The combination of these two technologies affords a high sensitivity level of ISO 51200, full-resolution continuous shooting rate of 6 fps, and renders both still images and videos with notable image quality and clarity. Full HD 1080p video recording is supported in multiple frame rates up to 30 fps as well as HD 720p recording up to 60 fps. Video files are recorded in the high quality H.264 AVC/MPEG-4 codec and saved as .MOV files for easier sharing and editing. When recording video or making still imagery with live view, a 3.0" 921k-dot LCD monitor is available and provides a wide viewing angle for improved composition in a variety of shooting positions.

Benefitting the image quality is the SAFOX IXi+ autofocus system, which works to ensure sharp, accurate focus quickly and smoothly. Additionally, when working with manual focus, focus peaking is available to provide a more objective and comparable method of acquiring critical focus. Also contributing to image sharpness is in-camera sensor shift image stabilization, which reduces the appearance of camera shake by about three shutter speed steps when working in low-light conditions or with longer focal length lenses.

For extensive control over image-making, in-camera RAW (DNG) image processing is available as well as HDR shooting capabilities. For expediting control over the most oft-used functions of the K-50, both the front and rear e-dials are customizable and can be programmed to control an array of exposure settings and camera functions. For creatively modifying imagery in-camera, a variety of filters, scene modes, and auto modes are available to enhance the look and feel of imagery prior to post-processing. In addition to the range of automatic camera settings, traditional manual shooting modes are also available, such as program, shutter-priority, aperture-priority, sensitivity-priority, and manual.

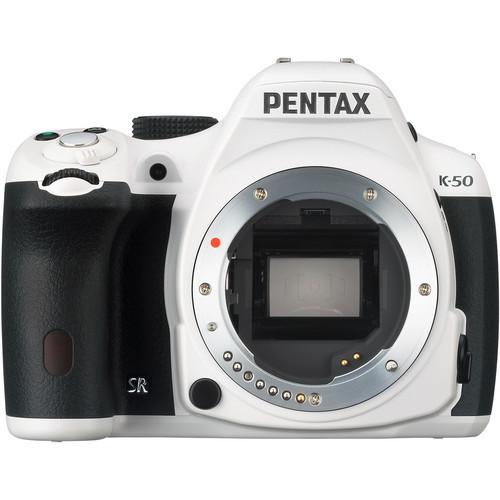

All of the K-50's technologies are housed within a polycarbonate-covered camera body that is supported by a stainless steel chassis. This body design is fully weather-sealed and protects the camera from moisture and dust as well as extreme temperatures from 14-104°. Additionally, the design of the camera allows the use of either the standard lithium-ion battery pack or four AA batteries as its power source when used in conjunction with the optional D-BH109 AA Battery Holder.

Included with the K-50 camera body is the smc Pentax DA 18-135mm f/3.5-5.6 ED AL IF DC WR lens, which provides a 35mm-equivalent focal length of 27.5-207mm, covering wide-angle to telephoto perspectives to suit working in a wide variety of situations. The lens construction integrates aspherical elements to help minimize chromatic aberration as well as improve image sharpness. An SP (Super Protect) coating has been applied to elements to help repel dust, water, and grease and the lens body is constructed to the same weather-resistant standards as the K-50 for use in inclement conditions.
If you own a Pentax dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961Download user manual for Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961
(PDF file, 8.49 MB)
Additional parameters of the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961:
Specifications
    Imaging
    Lens Mount Pentax K
    Camera Format APS-C / (1.5x Crop Factor)
    Pixels Actual: 16.5 Megapixel
    Effective: 16.3 Megapixel
    Max Resolution 16 MP: 4928 x 3264
    Aspect Ratio 3:2
    Sensor Type / Size CMOS, 23.7 x 15.7 mm
    File Formats Still Images: DNG, JPEG, RAW
    Movies: MOV, MPEG-4 AVC/H.264
    Bit Depth 12-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Image Stabilization Sensor-Shift
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Focus Lock AF Area Mode, Manual Focus (M), Single-servo AF (S)
    Autofocus Points Phase Detection: 11
    Viewfinder/Display
    Viewfinder Type Pentaprism
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.92x
    Diopter Adjustment - 2.5 to +1.5 m
    Display Screen 3" Rear Screen   LCD (921,000)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 100-51200
    Shutter Type: Electronic
    Speed: 30 - 1/6000 second
    Remote Control Remote Control F or O-RC1 (Optional)
    Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, Bulb, Manual, Movie, Program, Scene Modes, Sensitivity Priority, Shutter Priority, Shutter/Aperture Priority
    Metering Range: EV 0.0 - EV 22.0
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Cool White, Daylight, Daylight Color, Daylight White, Flash, Kelvin, Manual, Shade, Tungsten, Warm White
    Flash
    Flash Modes Red-eye Reduction
    Second-curtain Sync
    Slow Sync
    TTL Auto
    Built-in Flash Yes
    Guide No. 39.37' (12 m) ISO100
    Max Sync Speed Electronic Shutter: 1 / 180 seconds
    Flash Compensation -2 EV to +1 EV (in 1/3 EV steps)
    Dedicated Flash System P-TTL Remote Firing
    External Flash Connection Hot Shoe, Wireless
    AV Recording
    Video Recording Yes, NTSC/PAL
    File Size 1920 x 1080p (Full HD)
    1280 x 720p (HD)
    640 x 480p (SD)
    Aspect Ratio 16:9
    Frame Rate @ 1920 x 1080: 30 fps, 25 fps, 24 fps
    @ 1280 x 720: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
    @ 640 x 480: 30 fps, 25 fps, 24 fps
    Video Clip Length 1920 x 1080
    25 min.
    1280 x 720
    25 min.
    640 x 480
    25 min.
    Audio Recording With Video, Mono
    Performance
    Continuous Shooting Up to 6 fps
    Self Timer 12 seconds, 2 seconds
    Interval Recording Yes
    Connectivity AV Output
    USB 2.0
    Software System Requirements Windows: XP (SP3), Vista, 7, 8
    Mac: OS X 10.5 or later
    Power
    Battery 1x D-LI109 Rechargeable Lithium-ion Battery Pack, 7.4 VDC, 1050 mAh
    4x AA
    AC Power Adapter K-AC128 (Optional)
    Operating/Storage Temperature Operating
    14 to 104°F (-10 to 40°C)
    Physical
    Dimensions (WxHxD) 5.1 x 3.8 x 2.8" / 13.0 x 9.7 x 7.1 cm
    Weight 22.9 oz / 649 g With li-ion battery and memory card
    Kit Lens
    Focal Length 18 - 135mm
    Comparable 35mm Focal Length: 27.5 - 207 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 38
    Angle of View 76° - 11.9°
    Minimum Focus Distance 1.31' (40 cm)
    Magnification 0.24x
    Elements/Groups 13/11
    Diaphragm Blades 7
    Autofocus Yes
    Filter Thread Front:62 mm
    Dimensions (DxL) Approx. 2.87 x 2.99" (73 x 76 mm)
    Weight 14.29 oz (405 g)
    Packaging Info
    Package Weight 4.5 lb
    Box Dimensions (LxWxH) 10.1 x 7.9 x 5.1"
    Pentax K-50 Demo
    The user manual for the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961 can be downloaded in .pdf format if it did not come with your new dslr cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pentax users keep a unique electronic library for Pentax dslr camerass, where you can use our link to download the user manual for the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961.

    The user manual lists all of the functions of the Pentax K-50 DSLR Camera with 18-135mm Lens (White) 10961, all the basic and advanced features and tells you how to use the dslr cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pentax service.
