User manual Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S

Operating instructions and pdf manual for use - Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S User manual, User manual Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S, Pioneer, XDP-100R, Portable, High-Resolution, Digita


User manual for Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S
  • Manufacturer: Pioneer
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Portable Audio - iPods & Media Players
  • Safety instructions
  • Startup and operation of the ipods & media players
  • Tips for setting up your Pioneer
  • Settings and expert assistance
  • Contact Pioneer service
  • Troubleshooting
  • Warranty information
  • Price: 697 USD

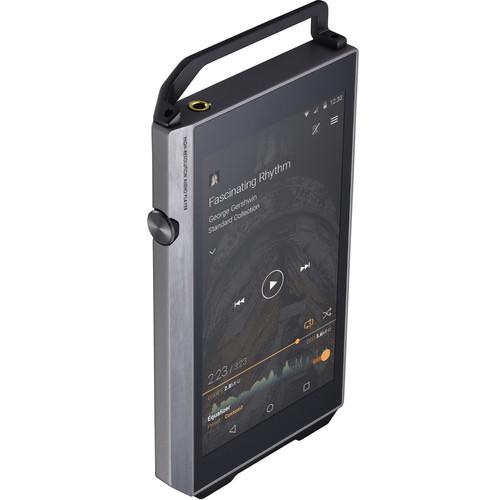

Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S
Click to enlarge image

We recommend checking out our discussion threads on the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S, which address similar problems with connecting and setting up iPods & Media Players Pioneer.



User manual for the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S

The user manual for the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S provides necessary instructions for the proper use of the product TVs & Entertainment - Portable Audio - iPods & Media Players.

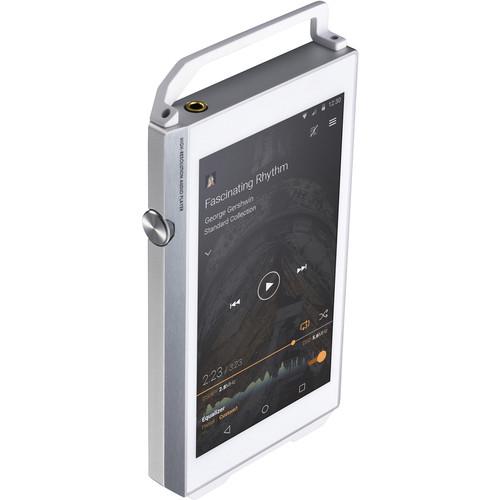

Styled in a silver finish, the XDP-100R by Pioneer is a portable digital audio player that puts high-resolution audio—streaming or otherwise—right in your pocket. The player supports formats up to DSD 11.2 MHz, 384 kHz/24-bit FLAC/WAV/PCM files, and, with firmware update, the high-res lossless MQA codec for streaming.

In addition to its on-board SABRE DAC & headphone amp, this device offers a closed-loop construction (including separated audio and CPU boards) as well as analog circuitry consolidated around the headphone jack in order to eliminate extraneous noise. 32GB of internal storage is provided, though disk space can expand with the insertion of one or two microSD cards (available separately). The unit also features Bluetooth and Wi-Fi.

Turn your attention to the XDP-100R's software and you'll notice that it comes pre-loaded with the X-DAP link app (for transferring your music library onto the XDP-100R) and the OnkyoMusic app (for downloading high-res audio files straight to the player). The device also features Android OS, so you can access Google Play, should you wish to download and utilize other apps—all of which are visible and controllable via its 4.7", 1280 x 780 touchscreen.
If you own a Pioneer ipods & media players and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S:
Specifications
Construction
Touch Screen 4.7" capacitive
1280 x 720 resolution
Built-in Speaker Yes
Circuit Board Separate DAC/AMP circuit board and CPU circuit board
I/O 1x 3.5 mm stereo phone/line-out
1x micro-USB-B/OTG digital out
Sound
THD < 0.006%
S/N Ratio 115 dB over
Frequency Response 20 Hz ~ 80,000 Hz
Storage and Connectivity
Internal Storage 32 GB
Expandable Storage 2x microSD slots (SDXC)
Wi-Fi Connectivity 802.11b/g/n or 802.11ac
Supported Bluetooth Profiles A2DP, AVRCP, HSP, OPP, HID, PAN
Bluetooth Codecs SBC/apt-X (Transmit only)
Processing
Headphone Amp SABRE 9601K
DAC SABRE ES9018K2M
Audio Processor Qualcomm APQ8074 (2.2 GHz Krait 400 Quad-core, Adreno 330 GPU 450 MHz)
Analog Output 3.5 mm Phone/Line-Out Mode: Converts DSD to PCM 192 kHz/24-bit
Digital Output Micro USB-B: Up to 11.2 MHz DoP/Direct Transfer and up to 5.6/2.8 MHz DoP/Direct Transfer/PCM
Up-Sampling 3.5 mm Phone/Line-Out mode: 192 kHz/24-bit
Micro USB-B: 384 kHz/24-bit Real-Time DSD Convert 5.6 MHz
Down-Conversion 3.5 mm Phone/Line-Out mode: Up to 192 kHz/24-bit, 32-bit Integer/Float with 24-bit down-conversion
Micro USB-B: Up to 384 kHz/24-bit, 32-bit Integer/float with 24-bit down-conversion
Software and Features
Included Software OnkyoMusic app
X-DAP Link app for content file transfer (PC to DAP)
Google Play
OS Android
Supported Formats and Codecs
Supported Audio Formats / Codecs DSD, DSF, DSD-IFF, FLAC, ALAC, WAV, AIFF, Ogg-Vorbis, MP3, AAC, MQA (Update)
Sampling Rates 2.8, 5.6, 11.2 MHz @ 1-bit 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
Bit Depth 16- and 24-bit
32-bit float/integer down-convert to 24-bit
Supported Playlist Formats M3U, PLS, WPL
Supported Video Formats H.263, H.264 AVC, HEVC (H.265), MPEG-4 SP, VP8, VP9
Supported Image Formats JPEG, GIF, PNG, BMP, WebP
Power & Other Parameters
Impedance Support 16 to 300 ohms
Audio Output Power 75 mW + 75 mW into 32 ohms
Battery Size 1630 mAh / 3.8 V
Battery Life 16 hours at 96 kHz/24-bit, FLAC, unbalanced playback
Language Support Japanese, English, German, French, Spanish, Italian, Chinese (simplified), Chinese (traditional)
Dimensions & Weight
Dimensions (H x W x D) Without Bumpers: 5 x 3 x 0.5" / 127 x 76.2 x 12.7 mm
With Bumpers: 5.7 x 3 x 0.5" / 144.8 x 76.2 x 12.7 mm
Weight 0.4 lb / 181.4 g
Packaging Info
Package Weight 1.35 lb
Box Dimensions (LxWxH) 7.3 x 5.6 x 2.4"
The user manual for the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S can be downloaded in .pdf format if it did not come with your new ipods & media players, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pioneer users keep a unique electronic library for Pioneer ipods & media playerss, where you can use our link to download the user manual for the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S.

The user manual lists all of the functions of the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S, all the basic and advanced features and tells you how to use the ipods & media players. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pioneer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S. User manuals are also available on the Pioneer website under TVs & Entertainment - Portable Audio - iPods & Media Players.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S

Post new comment to Pioneer XDP-100R Portable High-Resolution Digital XDP-100R-S

Subject: Transferring music from PC
Date: 25.12.2016 13:35:00Author: Gordon
Hi
Need advice !
Installed the X-DAP Link
Not exactly a friendly UI
Bit of a faff to transfer my music files
Which of the three coloured arrows,(blue/orange/purple) is the onboard 32GB storage?
I assume its the first (blue) one
Any hints or tips?
Thanks
Reply
