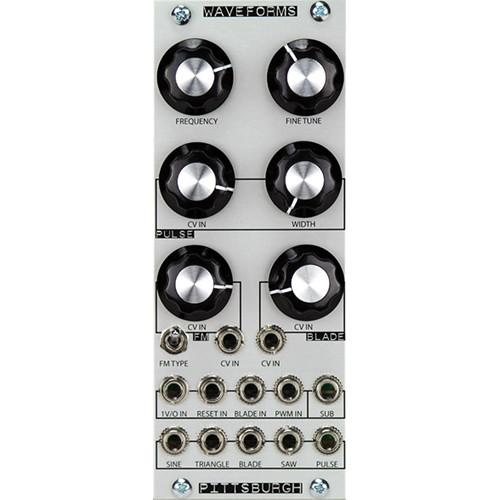

The Waveforms Oscillator from Pittsburgh Modular is a wide-range, high-quality complex voltage-controlled oscillator (VCO) that is designed to be the core of a modern, analog Eurorack modular synthesizer. The Waveforms module offers a full complement of standard waveforms including sine, triangle, saw, and pulse, as well as a sub-octave generator and a unique modulatable blade wave, which generates a saw wave one octave above the core frequency and creates a living, breathing, and evolving waveform that is still capable of tracking 1V per octave.

The oscillator provides 5 octaves of 1V-per-octave tracking and a frequency range starting as low as 7 seconds per cycle, allowing it to double as an LFO. Additional features include oscillator reset for hard sync, attenuated linear or exponential FM input, pulse width, and a pulse-width CV input. The Waveforms module is 10hp wide, 1.4" / 36.5mm deep and requires 25mA of power. The module ships with a ribbon cable.
If you own a Pittsburgh synthesizer modules and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pittsburgh Waveforms - Complex Waveform Oscillator - PMS2024 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pittsburgh Waveforms - Complex Waveform Oscillator - PMS2024:
Specifications
Controls Coarse- and Fine-Tune Frequency Controls: Full-range sweeping coarse tune and limited-range fine-tune knobs
Pulse-Width Modulation CV In: Pulse-width modulation CV-input attenuator
Pulse-Width Modulation Control: Adjusts the width of the Pulse waveform
Patch Points 1V/O In: One volt-per-octave CV input
Reset In: Oscillator reset Gate input
Blade In: Blade-wave manipulation input
PWM In: : Pulse-width modulation CV input
Sub-Wave Out: Sub-oscillator wave output
Sine-Wave Out: Sine-wave output
Triangle-Wave Out: Triangle-wave output
Blade-Wave Out: Blade-wave output
Pulse-Wave Out: Pulse-wave output
Power Usage 25 mA
Size Horizontal Pitch (hp): 10
Depth 1.4" / 36.5 mm
