User manual for Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
- Manufacturer: Polsen
- Basic description and contents of package
- Product classification: Pro Audio - Location Sound - Wireless Systems
- Safety instructions
- Startup and operation of the wireless systems
- Tips for setting up your Polsen
- Settings and expert assistance
- Contact Polsen service
- Troubleshooting
- Warranty information
- Price: 140 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2,
which address similar problems with connecting and setting up Wireless Systems Polsen.
|
User manual for the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2
The user manual for the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

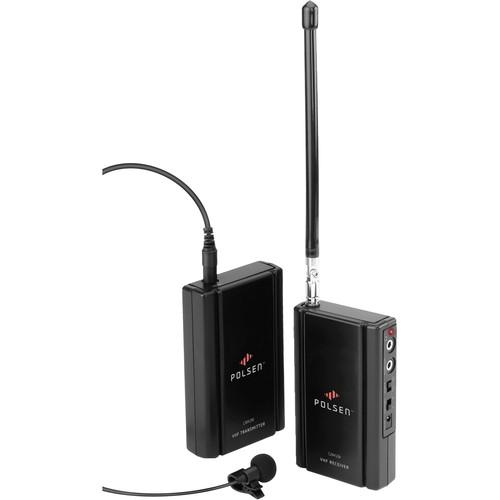

The Polsen CAM-2W is a 2-channel wireless microphone system that is designed for hands-free mobility in a wide variety of applications including video production, electronic news gathering (ENG), electronic field productions (EFP), and classroom and presentation applications. It is a reliable, easy-to-use solution for wireless sound transmission.
The CAM-2W includes an omnidirectional microphone (PL-2W), which is ideal for ENG and EFP video applications since omnidirectional microphones are minimally susceptible to wind and handling noise. The PL-2W also provides flexible placement options and allows for head movement without affecting the sound.
The CAM-2W system was designed with two switchable frequencies to avoid interference while operating at a range of up to 100 feet (300 feet in optimal conditions).
A durable and flexible antenna that can be positioned for the best possible reception is included. Audio can be monitored in real time with the included earphone. A tie clip for wardrobe placement and a windscreen that reduces wind noise and vocal plosives are also included.
The CAM-2W system is a compander-free system for delivering high-quality audio. In most wireless systems, the audio signal is compressed in the transmitter and then expanded in the receiver causing undesirable artifacts such as pumping and breathing. Compander-free systems don't exhibit these artifacts making them a favored solution among filmmakers around the world.
|
If you own a Polsen wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2:
| Operating Frequencies | G2 Band (169.505 and 170.305 MHz) | | Modulation | Frequency modulation (FM) | | Modulation Sensitivity | 6 mV input for full deviation | | Battery | 9 V alkaline (not included) | | Current Consumption | 50 mA | | Battery Life | Approximately 8 hours | | Dimensions | 4.09 × 2.44 × 0.94" (104 × 62 × 24 mm) | | Weight | 2.8 oz (80 g) without battery | | Operating Frequencies | G2 Band (169.505 and 170.305 MHz) | | Reception System | FM super heterodyne | | Reception Sensitivity | 2 µV for 30 dB S/N | | Output Connector | 1/8" (3.5 mm) TRS | | DC Input | 9 V DC (center positive) | | Battery | 9 V alkaline (not included) | | Current Consumption | 50 mA | | Battery Life | Approximately 8 hours | | Dimensions | 4.09 × 2.44 × 0.94" (104 × 62 × 24 mm) | | Weight | 3.5 oz (100 g) without battery | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.843 x 5.591 x 2.205" | |
The user manual for the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2 can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Polsen users keep a unique electronic library
for Polsen wireless systemss,
where you can use our link to download the user manual for the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2.
The user manual lists all of the functions of the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Polsen service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Polsen CAM-2W - Camera-Mountable VHF Wireless System CAM-2W-G2. User manuals are also
available on the Polsen website under Pro Audio - Location Sound - Wireless Systems.
