User manual PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL

Operating instructions and pdf manual for use - PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL User manual, User manual PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL, PreSonus, AudioBox, 44VSL, USB, 2.0, Recording, AUDIOB


User manual for PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL
  • Manufacturer: PreSonus
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your PreSonus
  • Settings and expert assistance
  • Contact PreSonus service
  • Troubleshooting
  • Warranty information
  • Price: 300 USD
We recommend checking out our discussion threads on the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL, which address similar problems with connecting and setting up Audio Interfaces & Systems PreSonus.



User manual for the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL

The user manual for the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

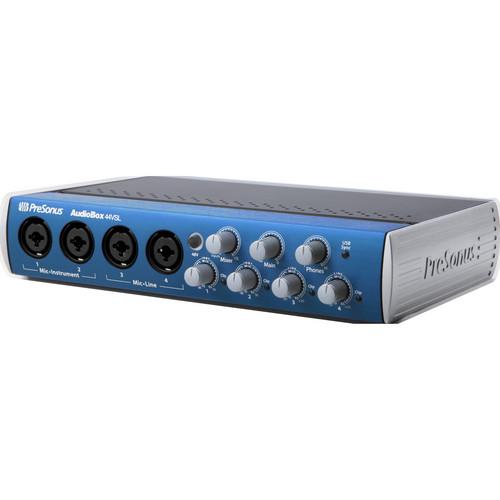

The AudioBox 44VSL from Presonus is a portable 4 input/4 output USB 2.0 audio and MIDI interface that allows for monitoring with low-latency effects. Using the computer's CPU and PreSonus Virtual StudioLive software, the interface provide reverb and delay effects and the same Fat Channel compression, limiting, semi-parametric EQ, and high-pass filter, as the PreSonus StudioLive 16.0.2 digital mixer, all with inaudible latency.

Compact and rugged, the interface offers two front-panel microphone/instrument combo and two microphone/line combo inputs, global phantom power, and six line-level outputs. It features the same high-headroom, Class-A XMAX preamps as the StudioLive mixers, and has 24-bit/96kHz converters with 114dB dynamic range for clear, clean audio.

The preamplifiers offer three key advantages - high voltage, discrete components and Class-A circuitry. The net result is low noise, wide dynamic range, extended frequency response, and most importantly, musicality and transparency. The unit is housed in a ruggedly built metal chassis. Clip lights are provided for all channels.

The interface includes an 8 x 4 software mixer that along with a laptop or other computer running VSL allows you to mix a studio session or a live show featuring, say, a guitar duo with vocals, a small band, a DJ rig with mixer and stereo synthesizer, or a panel discussion, all while monitoring and recording with or without real-time processing.

Seamlessly integrated with the included Studio One Artist DAW and VSL, the AudioBox 44VSL interface works with virtually all Mac and Windows audio-recording software.
If you own a PreSonus audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSLDownload user manual for PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL
(PDF file, 6.34 MB)
Additional parameters of the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL:
Mic Preamps 4
Converters 24-bit
Sample Rates 44.1, 48, 88.4 and 96kHz
Inputs 4 x Combo XLR female
Input Impedance Microphone: 10kΩ
Line: 10kΩ
Instrument: 1MΩ
Maximum Input Level +21dBu, <0.5% THD
Gain Microphone: -15dB to +65dB
Line: -20dB to +20dB
Instrument: -30dB to +50dB
Outputs 6 x 1/4" TRS phone
1 x 1/4" TRS phone Headphone
Output Impedance Line: 51Ω
Maximum Output Level Line: +10dBu, <0.5% THD
Headphone: 120mW/channel @ 60Ω load
MIDI 2 x 5-pin DIN I/O
Dynamic Range 114dB (ADC and DAC) @ 48kHz, A-weighted
THD + N Microphone: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
Line Input: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
Instrument Input: 0.003%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
Line Output: 0.003%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
Headphone: 0.01%, +4dBu, 1kHz, unity gain, 20kHz BW, A-weighted
S/N Ratio Microphone: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
Line Input: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
Instrument Input: 89dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
Line Output: 109dB, 1kHz, 22kHz BW, A-weighted
Headphone: 90dB, 1kHz, maximum gain, 20kHz BW, unweighted
Noise Microphone EIN: -133dB, 20kHz BW, maximum gain, Rs=40Ω, A-weighted
Frequency Response Microphone: 20Hz to 22kHz, +/-0.25dB, unity gain
Line Input: 20Hz to 22kHz, +/-0.25dB, unity gain
Instrument Input: 20Hz to 22kHz, +/-0.25dB, unity gain
Line Output: 20Hz to 22kHz, +/-0.25dB
Headphone: 20Hz to 22kHz, +/-0.5dB, maximum gain
Phantom Power 48V, global switching
Controls Trim
Mains
Phones
Mixer
48V
Power 12 VDC external power supply (included) 1A, center-positive
Compatibility ASIO, Core Audio, WDM, MME and multi-client drivers
System Requirements Mac
Intel Core 1 Solo 1.5GHz processor (Intel Core Duo or Intel Xeon processor recommended)
OS X 10.6 or later (32- and 64-bit)
1GB RAM (2GB or more recommended)
USB 2.0 Port
DVD-ROM drive (required to install Studio One Artist)
Internet connection recommended

PC
Intel Pentium IV 1.6GHz processor or AMD Athlon 64 3000+ (Turion) (2.8GHz or faster recommended)
Windows Vista, Windows 7 (32- and 64-bit)
1GB RAM (2GB or more recommended)
USB 2.0 Port
DVD-ROM drive (required to install Studio One Artist)
Internet connection recommended
Dimensions (WxDxH) 1/2 rack space
Weight 2.6 lb (1.2kg)
Specialties Latency: 2.8mS to 6mS, analog in to out
Packaging Info
Package Weight 4.95 lb
Box Dimensions (LxWxH) 15.9 x 7.9 x 4.3"
The user manual for the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PreSonus users keep a unique electronic library for PreSonus audio interfaces & systemss, where you can use our link to download the user manual for the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL.

The user manual lists all of the functions of the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PreSonus service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PreSonus AudioBox 44VSL - USB 2.0 Recording AUDIOBOX 44 VSL. User manuals are also available on the PreSonus website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
