User manual PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5

Operating instructions and pdf manual for use - PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5 User manual, User manual PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5, PreSonus, Eris, E5, Two-Way, Active, 5.25, Studio, ERIS, E5,


User manual for PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
PreSonus Eris E5 Two-Way Active 5.25
  • Manufacturer: PreSonus
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your PreSonus
  • Settings and expert assistance
  • Contact PreSonus service
  • Troubleshooting
  • Warranty information
  • Price: 150 USD
We recommend checking out our discussion threads on the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5, which address similar problems with connecting and setting up Studio Monitors PreSonus.



User manual for the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5

The user manual for the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5 provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

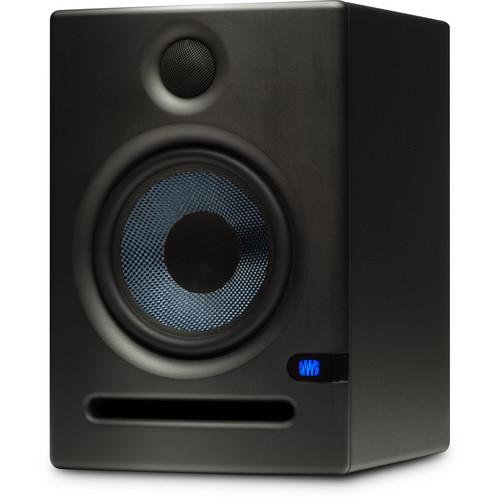

The Eris E5 Two-Way Active 5.25" Studio Monitor from PreSonus delivers an accurate response with tight bass and a clear upper end. The Kevlar low frequency transducers, low-mass silk-dome tweeters and responsive Class AB amplification combine with acoustic-adjustment controls to create a versatile and adaptable listening system.

The E5 begins with a front-ported enclosure made of vinyl-laminated MDF. It features a 5.25" Kevlar low-frequency driver mated with a 45W, Class AB amplifier. For the highs, Eris employs a 1" silk-dome tweeter powered by a 35W, Class AB amplifier. The E5 outputs a clean 102 dB peak SPL. Its frequency response is rated at 64Hz to 22kHz.

The Eris E5 provides a balanced XLR, a balanced ¼" TRS, and an unbalanced RCA line-level input. Once you're plugged in, set the Input Gain and you're ready to go!
If you own a PreSonus studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for PreSonus Eris E5 Two-Way Active 5.25Download user manual for PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5
(PDF file, 3.35 MB)
Additional parameters of the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5:
Specifications
    Inputs 1 x XLR balanced
    1 x 1/4" TRS balanced
    1 x RCA phono unbalanced
    Frequency Response 53 Hz to 22 kHz
    Crossover Frequency 3 kHz
    LF Amplifier 45W
    HF Amplifier 35W
    Maximum SPL 102 dB @ 1 meter
    Low Frequency Driver 5.25" (13.34 cm) Kevlar
    High Frequency Driver 1" (2.54 cm) silk dome
    Input Impedance 10kΩ
    Volume Control A-type taper
    Equalization HF Control: -6, 0, +6 dB; continuously variable
    MF Control: -6, 0, +6 dB; continuously variable
    Low Cut Filter: Flat, 80 Hz, 100 Hz; switchable
    Acoustic Space Control: Flat, -2 dB, -4 dB; switchable
    Protection RF interference
    Output-current limiting
    Over-temperature
    Turn-on/off transient
    Subsonic filter
    External mains fuse
    Enclosure Material Vinyl-laminated MDF
    Power Requirements 100 to 120V or 220 to 240V, 50/60 Hz
    Dimensions (W x D x H) 7 x 7.68 x 10.24" (178 x 195 x 260 mm)
    Weight 10.2 lb (4.63 kg)
    Packaging Info
    Package Weight 11.8 lb
    Box Dimensions (LxWxH) 13.1 x 11.6 x 9.9"
    The user manual for the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5 can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PreSonus users keep a unique electronic library for PreSonus studio monitorss, where you can use our link to download the user manual for the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5.

    The user manual lists all of the functions of the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PreSonus service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PreSonus Eris E5 Two-Way Active 5.25" Studio ERIS E5. User manuals are also available on the PreSonus website under Pro Audio - Recording - Studio Monitors.
