User manual PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE

Operating instructions and pdf manual for use - PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE User manual, User manual PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE, PreSonus, FireStudio, Mobile, 10, x, 6, FireWire


User manual for PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE
  • Manufacturer: PreSonus
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your PreSonus
  • Settings and expert assistance
  • Contact PreSonus service
  • Troubleshooting
  • Warranty information
  • Price: 250 USD
We recommend checking out our discussion threads on the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE, which address similar problems with connecting and setting up Audio Interfaces & Systems PreSonus.



User manual for the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE

The user manual for the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

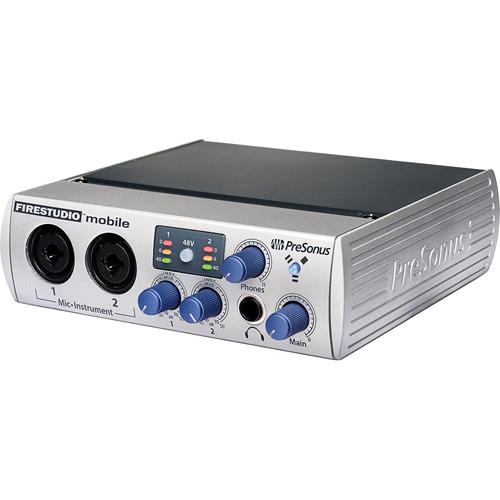

The FireStudio Mobile from Presonus is a compact FireWire computer audio/MIDI interface and recording software system. It attaches to the FireWire port on a Mac or Windows computer and gives you inputs for microphones, instruments, MIDI devices, and digital signals; it provides you with powerful software for recording and mixing. It's an ultra-compact design that delivers premium sound quality at a budget-friendly price.
If you own a PreSonus audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILEDownload user manual for PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE
(PDF file, 3.75 MB)
Additional parameters of the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE:
Inputs 2 x Combo Balanced XLR Microphone & 1/4" TS Instrument Inputs
6 x 1/4" TRS Line-Level
Outputs 2 x 1/4" TRS
1 x Stereo 1/4" Headphone
Phantom Power +48 VDC (+/- 2 VDC)
Connectivity 2 x FireWire 400 IEEE 1394
Sampling Frequency 44.1, 48, 88.2, 96 kHz
24-Bit
Frequency Response Microphone Preamp:
20 Hz to 50 kHz (+0, -0.5 dB)
20 Hz to 150 kHz (+0/-3.0 dB)

Headphone:
10 Hz - 10 kHz

Input Impedance 1.6 kOhm
Output Impedance 51 Ohms
THD + N Unwtd, 1 kHz @ +4 dBu Output, Unity Gain: < 0.008 %
EIN Unwtd, 55 dB Gain, 150 Ohm Input, 20 Hz to 22 kHz: -130 dBu
S/N Ratio (Audio) Unity Gain, unwtd, Ref = +4 dBu, 20 Hz to 22 kHz: > 101 dB
Common Mode Rejection Ratio 1 kHz, 55 dB Gain: > 55 dB
Maximum Input Level Unity Gain, 1 kHz @ 0.5% THD + N: +14 dBu
Power Supply External Switching Supply (12 VDC/1A)

Bus Power from 6-pin FireWire 400 or FireWire 800

System Requirements Mac:
PowerPC G4 1.25GHz or Intel Core Solo 1.5GHz processor (2.5GHz or faster recommended)
OS X 10.5.2 or later
1GB RAM (2GB or more RAM recommended)
IEEE 1394 FireWire 400 Port
DVD-ROM drive
Internal or external 7200 RPM storage drive highly recommended
Internet connection

PC:
Pentium IV 1.6GHz processor or AMD Athlon 64 Turion (2.5GHz or faster recommended)
Windows XP, Vista, or Windows 7
1GB RAM (2GB or more RAM recommended)
IEEE 1394 FireWire 400 Port
DVD-ROM drive
Internal or external 7200 RPM storage drive highly recommended
Internet connection

Dimensions 5.5 x 1.75 x 5.5" (140 x 45 x 140mm)
Weight 4.5 lbs (2kg)
Packaging Info
Package Weight 4.15 lb
Box Dimensions (LxWxH) 12.4 x 7.7 x 4.3"
The user manual for the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PreSonus users keep a unique electronic library for PreSonus audio interfaces & systemss, where you can use our link to download the user manual for the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE.

The user manual lists all of the functions of the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PreSonus service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PreSonus FireStudio Mobile - 10 x 6 FireWire FIRESTUDIO MOBILE. User manuals are also available on the PreSonus website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
