User manual PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2

Operating instructions and pdf manual for use - PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2 User manual, User manual PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2, PreSonus, StudioLive, 16.0.2, Performance, &, STUDIOLIVE


User manual for PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2
  • Manufacturer: PreSonus
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Mixers
  • Safety instructions
  • Startup and operation of the digital mixers
  • Tips for setting up your PreSonus
  • Settings and expert assistance
  • Contact PreSonus service
  • Troubleshooting
  • Warranty information
  • Price: 900 USD
We recommend checking out our discussion threads on the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2, which address similar problems with connecting and setting up Digital Mixers PreSonus.



User manual for the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2

The user manual for the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2 provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

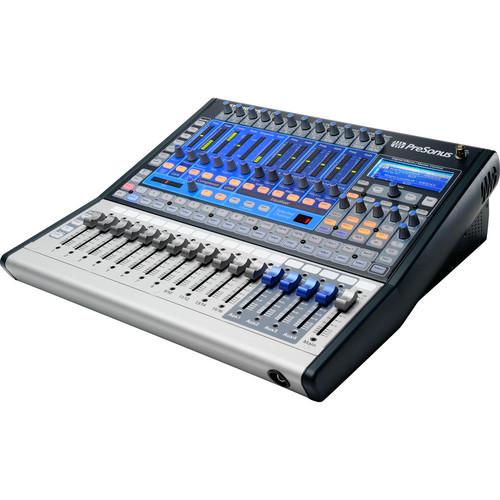

The PreSonus StudioLive 16.0.2 Performance & Recording Digital Mixer is a compact yet powerful digital mixer with a 16 x 16 FireWire interface for direct recording with a Mac or Windows based DAW software. Its small 16 x 15.5" (406.4 x 393.7mm) frame features 16 inputs with 8 mono mic/line balanced inputs and 4 stereo line input channels, all fitted with 60mm precision faders. All mono input channels feature PreSonus' high-headroom, XMAX class-A mic preamplifiers, for maximum gain, low noise floor, and detailed audio quality.
If you own a PreSonus digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2Download user manual for PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2
(PDF file, 7.08 MB)
Additional parameters of the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2:
System Requirements Mac:
Intel Core Solo 1.5GHz processor (2.5GHz or faster recommended)
OS X 10.5.2 or later (32- and 64-bit)
1GB RAM (2GB or more RAM recommended)
IEEE 1394 FireWire 400 Port
DVD-ROM drive
Internal or external 7200 RPM storage drive highly recommended
Internet connection

PC:
Pentium IV 1.6GHz processor or AMD Athlon 64 Turion (2.5GHz or faster recommended)
Windows XP, Vista, or Windows 7 (32- and 64-bit)
1GB RAM (2GB or more RAM recommended)
IEEE 1394 FireWire 400 Port
DVD-ROM drive
Internal or external 7200 RPM storage drive highly recommended
Internet connection

Apple iPhone or iPod touch (for QMix)
iPhone or iPod touch running iOS 4 or higher
Preamp
Type XLR Female, Balanced
Frequency Response Frequency Response to Direct Output (at unity gain): 20Hz - 40kHz, 0 / -0.5dBu
Frequency Response to Main Output (at unity gain): 20Hz - 20kHz, ± 0.5 dBu
Input Impedance 1k Ω
THD THD to Direct Output (1 kHz at unity gain): < 0.005%, +4 dBu, 20Hz - 20kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain): 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN EIN to Direct Output: +125dB unwtd, +130dB A-wtd
Signal-to-Noise Ratio Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -97dB Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -94dB
Common Mode Rejection +65dB (1 kHz at unity gain)
Gain Control Gain Control Range (± 1 dB): -16 dB to +67 dB
Max Input Signal (unity gain) +16dBu
Phantom Power +48V DC (± 2 VDC)
Line Input
Connector Type Balanced: 1/4" TRS Female, Balanced Mono
Unbalanced: RCA Female, unbalanced (stereo pair)
Balanced Audio Frequency Response to Direct Outputs (at unity gain): 10Hz - 40kHz, 0 / -0.5dBu
Frequency Response to Main Outputs (at unity gain): 20Hz - 20kHz, 0/-0.5dBu
Input Impedance: 10k Ω
THD to Direct Output (1 kHz at unity gain): <0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain): <0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -105dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -94dB
Gain Control Range (± 1 dB): -20dB to +20dB
Maximum Input level (unity gain): +22 dBu
Unbalanced Audio Maximum Input Level: +22 dBu
Connector Type Main: XLR Male, balanced (stereo pair); 1/4" TRS Female, balanced (stereo pair)
Aux: 1/4" TRS Female, balanced (mono)
Monitor: 1/4" TRS Female, balanced (stereo pair)
Output Level Main: +24dBu
Aux: +18dBu
Monitor: +18dBu
Output Impedance Main: 10k Ω
Aux: 51 Ω
Monitor: 51 Ω
Crosstalk Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): -87dBu
Gate Threshold Range: -84 dB to 0 dB
Attack Time: Adaptive (0.2 - 2.5 ms)
Release Time: 70 ms
Expander Attenuation Range: 2:1
Compressor Threshold Range: -56 dB to 0 dB
Ratio: 1:1 to 14:1
Response Time (Attack/Release): 0.2 ms / 1.0 s ("Tight") to 180 ms/1.0 s ("Smooth")
Auto Attack and Release: Attack = 10ms, Release = 150ms
Curve Types: hard and soft knee
EQ Section Type: 2nd - order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass): 36 to 465 Hz, ± 15dB
Mid: 26Hz to 3.5kHz, ±15 dB
High (High-pass or Bandpass): 1.4 kHz to 18 kHz, ±15dB
Digital ADC Dynamic Range (A-wtd, 48 kHz): 118 dB
DAC Dynamic Range (A-wtd, 48 kHz): 118 dB
FireWire: S400, 400 Mb/s
Internal Processing: 32-bit, floating point
Sampling Rate: 44.1, 48 kHz
A/D/A Bit Depth: 24 bits
Reference Level for 0 dBFS: -18 dBu
Clock Jitter: < 20 ps RMS (20 Hz - 20 kHz)
Jitter Attenuation: > 60 dB (1 ns in ≈ 1 ps out)
Power Connector: IEC
Input-Voltage Range: 90 to 240V AC (factory-configured for country of destination)
Power Requirements (continuous): 100W
Dimensions (LxWxH) 16 x 15.5 x 5.5" (406.4 x 393.7 x 139.7mm)
Weight 20 lb (9.07kg)
Packaging Info
Package Weight 28.0 lb
Box Dimensions (LxWxH) 24.0 x 22.25 x 11.5"
The user manual for the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2 can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PreSonus users keep a unique electronic library for PreSonus digital mixerss, where you can use our link to download the user manual for the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2.

The user manual lists all of the functions of the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PreSonus service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PreSonus StudioLive 16.0.2 Performance & STUDIOLIVE 16.0.2. User manuals are also available on the PreSonus website under Pro Audio - Recording - Digital Mixers.
