User manual Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331

Operating instructions and pdf manual for use - Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331 User manual, User manual Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331, Pulsar, 4.5x, Digisight, LRF, N850, Digital, Night, Vi


User manual for Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331

Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331
  • Manufacturer: Pulsar
  • Basic description and contents of package
  • Product classification: Optics - Night & Thermal Vision - Night Vision Riflescopes
  • Safety instructions
  • Startup and operation of the night vision riflescopes
  • Tips for setting up your Pulsar
  • Settings and expert assistance
  • Contact Pulsar service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331, which address similar problems with connecting and setting up Night Vision Riflescopes Pulsar.



User manual for the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331

The user manual for the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Night Vision Riflescopes.

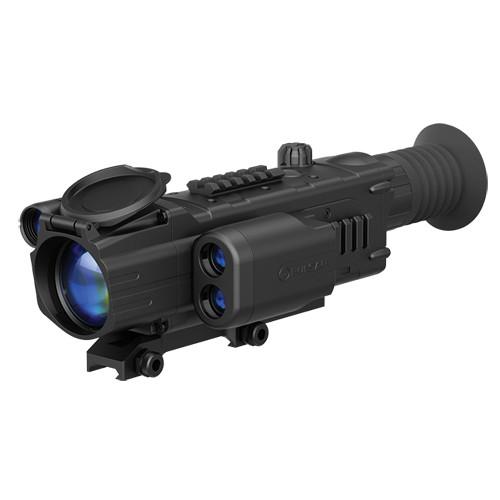

See clearly during twilight or nighttime with the 4.5x Digisight LRF N850 Digital Night Vision Riflescope from Pulsar. This digital night vision sight offers a 4.5x magnification, up to 9x with a 2x digital zoom, along with a near-IR high-sensitivity 1/3" CCD sensor to provide high quality imaging during low-light situations. It also features a 50mm f/1.0 objective lens and an eye relief of 67mm for comfortable viewing. The images are presented on a 640 x 480 OLED display and with the help of a 780nm built-in IR illuminator subject can be more easily seen in the dark. Also, it comes pre-loaded with 13 different reticles for a variety of situations.

Other features included on this model include analog video output as well as a wireless remote control. A rangefinder with a 109 yard range is also integrated into the scope and there are mounting holes on the base for attaching a variety of different mount types. Additionally, it can run off of either 4 AA batteries or an external power pack.
If you own a Pulsar night vision riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331:
Image Sensor 1/3" CCD
Signal Format CCIR
Display 640 x 480 OLED
Magnification 4.5x (9x with 2x digital zoom)
Objective Lens 50mm f/1.0
Field of View 5° at 109 yd (100 m)
2.6 yd (2.4 m) at 109 yd (100 m)
Eye Relief 67 mm
Exit Pupil Diameter 6 mm
Resolution ≥55 lp/mm
Diopter Adjustment ±4
Close Focus Distance 6 yd (5.5 m)
Click Adjustment Value H/V Value: 13 mm /13 mm @ 100 m
H/V Range: 1040 mm / 1300 mm @ 100 m
IR Wavelength 780 nm
IR Illuminator 125 mW
Laser Safety Class 1
Measuring Range 437 yd (400 m)
Accuracy ±1.1 yd (±1 m)
Battery 4 x AA batteries (4-6.3V)
External Power Supply 9-15 VDC, 3 W max power consumption
Battery Life IR Off: 4 hours
IR On: 2.5-3.5 hours
With EPS3 Battery Pack: 9 hours
With EPS5 Battery Pack: 20 hours
Frequency 2.4 GHz
Remote Control Battery: 1 x 3V CR2032
Battery Life: 2 years
Maximum Recoil 6000 J
12 caliber
Operating Temperature -13 to 122°F (-24 to 50°C)
Dimensions 13.4 x 4.4 x 3.7" (340 x 112 x 94 mm)
Weight 38.8 oz (1.1 kg) with batteries
35.3 oz (1.0 kg) without batteries
The user manual for the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331 can be downloaded in .pdf format if it did not come with your new night vision riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pulsar users keep a unique electronic library for Pulsar night vision riflescopess, where you can use our link to download the user manual for the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331.

The user manual lists all of the functions of the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331, all the basic and advanced features and tells you how to use the night vision riflescopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pulsar service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pulsar 4.5x Digisight LRF N850 Digital Night Vision PL76331. User manuals are also available on the Pulsar website under Optics - Night & Thermal Vision - Night Vision Riflescopes.
