User manual Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315

Operating instructions and pdf manual for use - Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315 User manual, User manual Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315, Pulsar, 4.5x50, N770, Digisight, Digital, Night, Vision, P


User manual for Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315

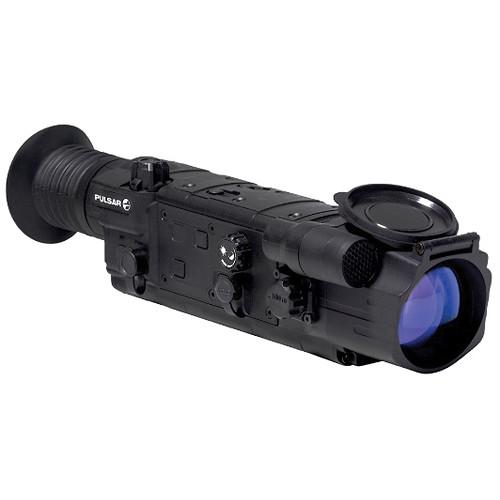

Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315
  • Manufacturer: Pulsar
  • Basic description and contents of package
  • Product classification: Optics - Night & Thermal Vision - Night Vision Riflescopes
  • Safety instructions
  • Startup and operation of the night vision riflescopes
  • Tips for setting up your Pulsar
  • Settings and expert assistance
  • Contact Pulsar service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315, which address similar problems with connecting and setting up Night Vision Riflescopes Pulsar.



User manual for the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315

The user manual for the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Night Vision Riflescopes.

Pulsar designed the 4.5x50 N770 Digisight Digital Night Vision Riflescope features a 4.5x optical magnification, enhanced by a 6.75x digital zoom to bring your targets in from medium to medium-long range. This magnification capability, combined with a large 5lens system and IR camera makes it capable of a maximum detection range of 490 yards. The built-in variable-power 915nm IR laser provides pin-point illumination where you need it. A German-style reticle features three non-illuminated posts with a center aiming dot that draws your eye to the center, without obstructing your targets.
If you own a Pulsar night vision riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315:
Specifications
    Night Vision
    Image Sensor 500 x 582 camera
    Detection Range 490 yd (450 m)
    Display 640 x 480 MicroOLED
    0.31" (7.9 mm) diagonal
    Infrared Illuminator IR laser
    915 nm peak wavelength
    75/100/125 mW power
    5.5° beam divergence
    Optics
    Magnification 4.5x optical
    6.75x digital zoom
    Lens System 50 mm, f/1.2
    Viewing Angle 5°, horizontal
    Field of View 26' @ 100' (8.7 m @ 100 m)
    Minimum Focus Distance 18' (5.5 m)
    Eye Relief 2.6" (6.7 cm)
    Exit Pupil 6 mm
    Dioptric Correction -5/+3
    Windage/Elevation Adjustment ±13 MOA
    Mount Picatinny/Weaver
    Reticle Partially-illuminated German
    Selectable red or green aiming dot
    General
    Video In/Out In: None
    Out: RCA port
    Battery 4 x AA batteries
    Runtime With IR: 3.5 hr, max
    Without IR: 4 hr, max
    Weatherproofing IP44-rated, dust and weather resistant
    Impact Resistance 6000 J
    Temperature Ranges 4 to 122°F (-20 to 50°C)
    Dimensions 13.4 x 24.1 x 23.9" (34.0 x 9.5 x 9.4 cm)
    Weight 35.3 oz (1000.7 g)
    The user manual for the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315 can be downloaded in .pdf format if it did not come with your new night vision riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pulsar users keep a unique electronic library for Pulsar night vision riflescopess, where you can use our link to download the user manual for the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315.

    The user manual lists all of the functions of the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315, all the basic and advanced features and tells you how to use the night vision riflescopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pulsar service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pulsar 4.5x50 N770 Digisight Digital Night Vision PL76315. User manuals are also available on the Pulsar website under Optics - Night & Thermal Vision - Night Vision Riflescopes.
