User manual QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750

Operating instructions and pdf manual for use - QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750 User manual, User manual QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750, QSC, ISA-750, Rackmount, Stereo, Power, Amplifier, 450


User manual for QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750

QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750
  • Manufacturer: QSC
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Standard Amplifiers
  • Safety instructions
  • Startup and operation of the standard amplifiers
  • Tips for setting up your QSC
  • Settings and expert assistance
  • Contact QSC service
  • Troubleshooting
  • Warranty information
  • Price: 780 USD
We recommend checking out our discussion threads on the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750, which address similar problems with connecting and setting up Standard Amplifiers QSC.



User manual for the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750

The user manual for the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Standard Amplifiers.

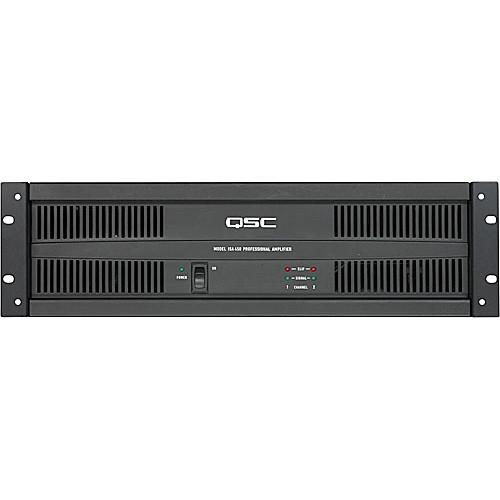

The QSC ISA-750 is a 3RU rackmount power amplifier designed specifically for sound contractors as a low impedance solution rated for 2-ohm operation at 1200 watts per side, or 450 watts at 8 ohms. The versatile loading options, feature set and protection circuitry, in addition to the built-in HD-15 DataPortV2 DSP interface capability, ensures a high-value, cost-effective solution for budget-minded installations.
If you own a QSC standard amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750:
Power Rating Stereo @ 2 ohms: 1200W per channel
Stereo @ 8 ohms: 450W per channel
Bridged @ 8 ohms: 1500W
Damping Factor >200 @ 8 ohms
Input Sensitivity 1.07Vrms
Input Impedance 10 kOhm/20 kOhm (unbalanced/balanced)
Gain 35dB
Frequency Response 20Hz to 20kHz, +/-1dB
Signal-to-Noise Ratio 100dB (20 Hz - 20 kHz)
Total Harmonic Distortion (THD) <0.03%, 4 and 8 Ohms, 20 Hz - 20 kHz, 10 dB below rated power
Input Connections 2 x 3-pin XLR Female, Balanced
2 x 3-pin Detachable EuroBlock
1 x HD-15 DataPortV2
Output Connectors 2 x Covered Barrier Strips
Controls Front Panel 1 x Power Switch
Controls (Rear) 1 x 10-Position DIP Switch Set
2 x Ch.1, 2 Gain Knobs
Indicators 2 x Red Clip LED
2 x Green Signal LED
1 x Green Power LED
Cooling Continuously variable speed fan, back-to-front air flow
Power Consumption 0.6A at idle
4.0A at 1/8 Power, 8 ohms
9.2A at 1/8 Power, 2 ohms
Dimensions 19 x 5.25 x 15.9" (483 x 133 x 400mm)
Weight 47 lb (21 kg)
Specialties Stable into reactive or mismatched loads
Rear Panel Controls
Comprehensive Protection Circuitry
Packaging Info
Package Weight 56.6 lb
Box Dimensions (LxWxH) 24.25 x 22.0 x 8.5"
The user manual for the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750 can be downloaded in .pdf format if it did not come with your new standard amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other QSC users keep a unique electronic library for QSC standard amplifierss, where you can use our link to download the user manual for the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750.

The user manual lists all of the functions of the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750, all the basic and advanced features and tells you how to use the standard amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from QSC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the QSC ISA-750 - Rackmount Stereo Power Amplifier - 450 ISA750. User manuals are also available on the QSC website under Pro Audio - Installation Sound - Standard Amplifiers.
