User manual for the QSC TouchMix-16 Compact Digital Mixer TOUCHMIX-16
The user manual for the QSC TouchMix-16 Compact Digital Mixer TOUCHMIX-16 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

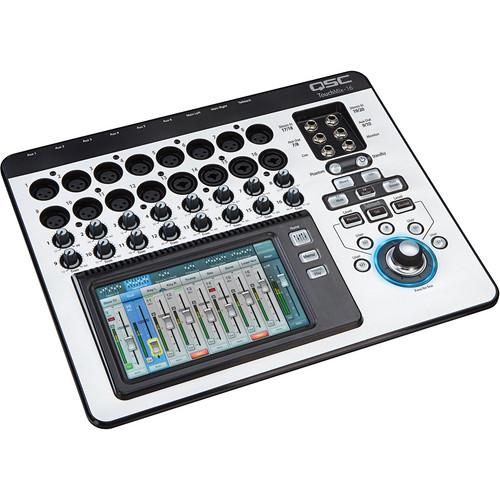

The TouchMix-16 Compact Digital Mixer with Touchscreen from QSC is a 20-input digital mixer that features 16 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-16's DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.
The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.
|
If you own a QSC digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the QSC TouchMix-16 Compact Digital Mixer TOUCHMIX-16 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the QSC TouchMix-16 Compact Digital Mixer TOUCHMIX-16:
| Display | 6.1 x 3.5" (156 x 90 mm) color TFT, touch sensing | | Input | 20x Total
4x Combo XLR/TRS
12x XLR
2x Stereo 1/4" (6.3 mm) TRS
1x XLR talkback | | Output | 2x Main XLR, line level
6x Aux XLR, line level
2x Stereo Aux TRS (line or ear monitors, 16 Ω minimum impedance)
1x Stereo monitor TRS (line or headphone, 16 Ω minimum impedance)
1x Stereo cue TRS (line or headphone, 16 Ω minimum impedance) | | Processing | Mic & Line Input Processing:
4-band parametric EQ with Hi/Low shelving option
Variable 24 dB/octave HPF & LPF
Gate
Compressor
2-Track (USB) & FX Return Processing:
2-band shelving EQ
Variable 24 db/octave HPF
Gate
Compressor
Output Channel Processing:
Main Output & Auxes 1 to 6: 1/3 octave graphic EQ, variable HPF & LPF, 4-band variable notch filter, limiter
Auxes 7/8, 9/10: 4-band parametric EQ, limiter | | Recording | 20 tracks, requires USB 3.0 Hard Drive, minimum 7800 RPM | | Groups | 8 DCA groups (with mutes)
8 Mute groups | | Cue | Input priority cue
AFL
PFL
Solo in place | | Effects | Reverb, echo, delay, chorus
1x Pitch Correct (assignable to any mono input channel)
50x factory presets
50x user presets | | Preset | Mixer Presets: Factory & user mixer presets including all mixer parameters may be stored internally or loaded to / from USB
Channel Preset: User channel presets may be stored internally or loaded to / from USB | | Control | External Control: iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions | | Wi-Fi | USB Wi-Fi adapter included | | Line Voltage | 100 V AC - 240 V AC, 50 - 60 Hz | | Sampling Frequency | 44.1/48 kHz | | Internal Processing | 32-bit floating point | | Frequency Response | 20 Hz to 20 kHz, +/-0.5 dB, any input to any output | | Dynamic Range | 105 dB | | EIN | -128 dBu | | Output Noise | Residual Output Noise: -86 dBu | | Crosstalk | -80 dB | | Signal to Noise Ratio | -94 dB | | Maximum Input Level | +16 dB (Mic inputs)
+22 dB (Line inputs) | | Phantom Power | 48 V, individually switchable per channel | | Dimensions (HxWxD) | 3.5 x 14.2 x 11.7" (89 x 360 x 297 mm) | | Weight | 5.9 lb (2.98 kg) | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 15.039 x 5.0 x 4.409" | |
