User manual Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4

Operating instructions and pdf manual for use - Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4 User manual, User manual Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4, Quested, AP2800-4, Channel, Class, D, Subwoofer, A


User manual for Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4

Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4
  • Manufacturer: Quested
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Quested
  • Settings and expert assistance
  • Contact Quested service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4, which address similar problems with connecting and setting up Power Amplifiers Quested.



User manual for the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4

The user manual for the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

The Quested AP2800-4 Channel Class D Subwoofer Amplifier (2800W/CH at 4Ω) is a 2RU 19" rackmountable amplifier designed for powering passive subwoofers in recording studios and film production facilities. The amplifier is rated for 2800W per channel at 4Ω and 1400W per channel at 8Ω.

For I/O, the amplifier features balanced 3-pin XLR input connectors with advanced sidechain limiting and 4-pole Speakon outputs for connecting to subwoofers. The amplifier is capable of powering a wide range of subwoofers in a range of professional applications.

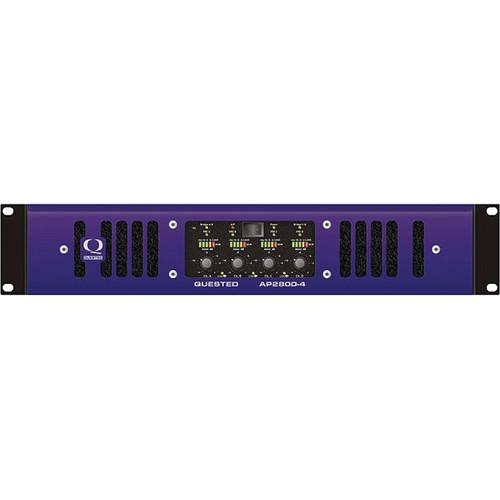

Although not essential for the amplifier's operation, the unit is designed to work with Quested's SBC800 800-Watt LFE/Sub-Bass Controller to optimize low frequency response in a recording studio or film production facility. The front panel of the unit features a power switch and gain knobs for channels A, B, C, and D.
If you own a Quested power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4:
Specifications
    Channels 4
    Design Class D
    Connectors 4x XLR-3F inputs (A,B,C,D)
    4x 4-pole Speakon output connectors (A,B,C,D)
    Power 1400W per channel at 8 Ohms
    2800W per channel at 4 Ohms
    THD < 0.08% at 1,000 Hz
    < 0.15% at 20 to 20,000 Hz
    Rack Unit Space 2 RU
    Dimensions (W x H x D) 19.00 x 3.46 x 19.00" (482 x 88 x 428 mm)
    Weight 26.0 lb (11.8 kg)
    The user manual for the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Quested users keep a unique electronic library for Quested power amplifierss, where you can use our link to download the user manual for the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4.

    The user manual lists all of the functions of the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Quested service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Quested AP2800-4 Channel Class D Subwoofer Amplifier AP2800-4. User manuals are also available on the Quested website under Pro Audio - Live Sound - Power Amplifiers.
