User manual Radial Engineering The Vocal Chain-500 Series Kit

Operating instructions and pdf manual for use - Radial Engineering The Vocal Chain-500 Series Kit User manual, User manual Radial Engineering The Vocal Chain-500 Series Kit, Radial, Engineering, The, Vocal, Chain-500, Series, Kit,


User manual for Radial Engineering The Vocal Chain-500 Series Kit

Radial Engineering The Vocal Chain-500 Series Kit
  • Manufacturer: Radial Engineering
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Microphone Preamps
  • Safety instructions
  • Startup and operation of the microphone preamps
  • Tips for setting up your Radial Engineering
  • Settings and expert assistance
  • Contact Radial Engineering service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Radial Engineering The Vocal Chain-500 Series Kit, which address similar problems with connecting and setting up Microphone Preamps Radial Engineering.



User manual for the Radial Engineering The Vocal Chain-500 Series Kit

The user manual for the Radial Engineering The Vocal Chain-500 Series Kit provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

This B&H Kit includes the Radial Engineering Workhouse Cube 3-Module Desktop Power Rack for 500 Series Modules as well as a 500-Series microphone preamplifier module, a 500-Series compressor limiter module, and a 500-Series equalizer module. The three modules are designed to be installed into the three available slots on the 500-Series Workhouse Cube rack. The rack provides power to the modules and allows you to build a signal chain for recording vocals.

The back of the rack features balanced 3-pin XLR inputs and outputs, as well as 1/4" TRS inputs and outputs for connecting the modules together.
If you own a Radial Engineering microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Radial Engineering The Vocal Chain-500 Series Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Radial Engineering The Vocal Chain-500 Series Kit:
Specifications

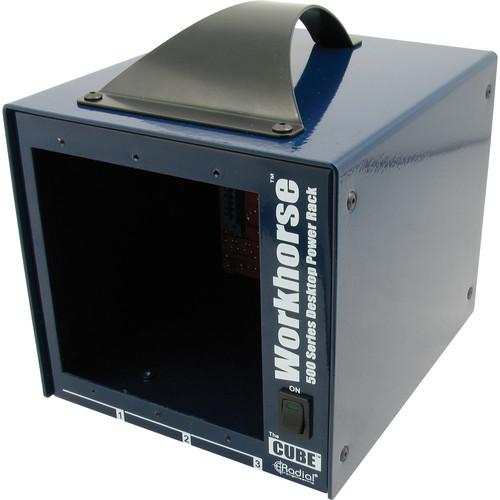

    • Radial Engineering Workhorse Cube 3-Module Desktop Power Rack for 500 Series Radial Modules
      Circuit Type Connection buss from modules to connectors
      Format Desktop
      Number of Slots 3
      Input Connectors 3 x balanced XLR male, 3 x ¼" TRS
      Output Connectors 3 x balanced XLR male, 3 x ¼" TRS
      Compatibility Adheres to the Whos-Doc and VPR alliance
      Electrical
      Current Available: 500 mA
      Average: 166 mA per slot
      Card Slot Impedance: Module dependent
      Connection Ground: Chassis
      PSU: Locking 4-pin XLR female on cable
      Wiring XLR Pin: AES Standard: pin-1 ground, pin-2 (+), pin-3 (-)
      Power Supply External 100 to 240 VAC with 48 V phantom on all channels
      Mechanical
      Operating Conditions For indoor use at temperatures from 41 to 104°F (5 to 40°C)
      Dimensions 7.50 x 6.25 x 7.25" (19.05 x 15.88 x 18.42 cm) (W x H x L)
      Weight 5.4 lb (2.5 kg)
      Packaging Info
      Box Dimensions (LxWxH) 12.3 x 9.4 x 9.1"
    • Radial Engineering PowerPre Microphone Preamplifier
      Microphone Inputs
      Circuit Type 100% discrete, transformer-coupled output
      Microphone Input AccuState input fully variable gain control
      Current Draw 130 mA (maximum draw)
      Frequency Response 20 Hz to 20 kHz +0/-1 dB
      Input Impedance 2.2 kΩ (1.5 kΩ with pad)
      Gain Mic Preamp Gain: 55 dB
      Maximum Gain 70 dB when used with Workhorse
      Maximum Output 22 dBu
      Output Impedance 750 at 1 kHz
      Output Type Transformer isolated
      Common Mode Rejection >75 dB
      Equivalent Input Noise -122 dBu at maximum gain
      Dynamic Range >97 dB
      Total Harmonic Distortion 0.03% at mid gain with 10 dBu output
      Intermodulation Distortion 0.012% at 50 dB gain with 10 dBu output
      Instrument Inputs
      Input Impedance 150 kΩ, unbalanced, when used with Workhorse
      Gain Instrument Preamp Gain: 55 dB, unbalanced, when used with Workhorse
      Equivalent Input Noise -95 dBu, unbalanced, when used with Workhorse
      Total Harmonic Distortion 0.05% at mid gain with 10 dB output
      Control Panel
      Meter 10-segment peak indicator with hold
      Pad -15 dB
      Polarity Inverts pins 2 and 3 at XLR input, when used with Workhorse
      General
      High-Pass Filter 150 Hz cut off, -3 dB at 100 Hz
      VOX Control: 3-position preset EQ
      Phantom Power 48 VDC: 10 mA (as supplied by 500 frame)
      Configuration XLR: AES spec: pin-1 ground, pin-2 (+), pin-3 (-)
      Lift Ground Lift (Rear Panel): Lifts ground on front panel XLR input only
      Mechanical
      Compliance API & WHOS-Doc
      Weight 1.5 lb (0.7 kg)
      Packaging Info
      Box Dimensions (LxWxH) 8.9 x 6.7 x 1.4"
    • Radial Engineering Komit Compressor Limiter
      Circuit Type Feed forward with true RMS sidechain
      Power Requirement 72 mA, ± 16 VDC
      Compression Ratio Normal: 1:1 to 10:1
      Brickwall: 1:1 to 25:1
      Limiter Range: 4 to 21 dBu
      Frequency Response 20 Hz to 20 kHz, -2 dB at 20 Hz
      Maximum Output 22 dBu
      Maximum Gain Make-Up: 20 dB
      THD + N 0.025% at 1 kHz
      Intermodulation Distortion <0.1% at 80 Hz / 3 kHz
      Input Impedance 9.6 kΩ
      Output Impedance 140 Ω
      Threshold -10 dBu or +4 dBu
      Maximum Gain Key input to detector
      Compliance WHOS-Doc (Radial Workhorse 500 Rack)
      API (VPR Alliance)
      Size Standard 500 series format
      Weight 1.5 lb (0.7 kg)
      Packaging Info
      Box Dimensions (LxWxH) 9.0 x 6.7 x 2.0"
    • Joemeek meQ 500 Meequalizer 4-Band 500-Series EQ Module
      Input Impedance 15 kΩ
      Common Mode Rejection 70 dB
      Equivalent Input Noise -97 dBu (Unweighted, EQ Off)
      Distortion 0.001% (+4 dBu output, 1 kHz)
      Frequency Response 10 Hz to 70 kHz (-3 dB)
      Boost and Cut ±15 dB (variable)
      Filter Q / Hi-Q Value: 0.9 (1.5 octaves) / 4.3 (0.3 octaves)
      Maximum Input Level 28 dBu
      Maximum Output 28 dBu (10 k load)
      Nominal Output Level 4 dBu (Electronically balanced)
      Output Impedance 100 Ω
      Signal to Noise Ratio 80 dB (Typical, unweighted, EQ On)
      LED Peak LED Threshold: 16 dBu
      Input / Output Connectors XLR: Pin 2 +, pin 3 -, pin 1 ground
      Current Requirements 90 mA (maximum) per rail
      Compliance VPI Alliance, WHOS-Doc
      Dimensions Standard 500-series rack format
      Weight 14.1 oz (400 g)
      Packaging Info
      Box Dimensions (LxWxH) 10.2 x 7.7 x 2.7"
    The user manual for the Radial Engineering The Vocal Chain-500 Series Kit can be downloaded in .pdf format if it did not come with your new microphone preamps, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Radial Engineering users keep a unique electronic library for Radial Engineering microphone preampss, where you can use our link to download the user manual for the Radial Engineering The Vocal Chain-500 Series Kit.

    The user manual lists all of the functions of the Radial Engineering The Vocal Chain-500 Series Kit, all the basic and advanced features and tells you how to use the microphone preamps. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Radial Engineering service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Radial Engineering The Vocal Chain-500 Series Kit. User manuals are also available on the Radial Engineering website under Pro Audio - Recording - Microphone Preamps.
