User manual for the Radial Engineering Vintage Sound Vocal Chain - 500 Series Kit

The user manual for the Radial Engineering Vintage Sound Vocal Chain - 500 Series Kit provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

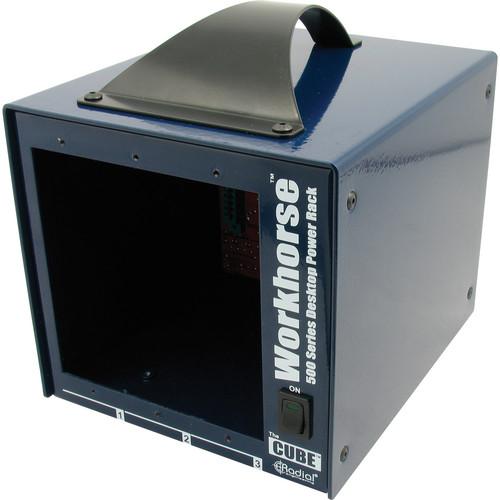

This B&H Kit includes the Radial Engineering Workhouse Cube 3-Module Desktop Power Rack for 500 Series Modules as well as a 500 Series microphone preamplifier module, a 500 Series DI/preamplifier/compressor module, and a 500 Series equalizer module. The three modules are designed to be installed into the three available slots on the 500 Series Workhouse Cube rack. The rack provides power to the modules and allows you to build a signal chain for recording vintage-style vocals.

The back of the rack features balanced 3-pin XLR inputs and outputs, as well as 1/4" TRS inputs and outputs for connecting the modules together.
If you own a Radial Engineering microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Radial Engineering Vintage Sound Vocal Chain - 500 Series Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Radial Engineering Vintage Sound Vocal Chain - 500 Series Kit:
Specifications
    • Radial Engineering Workhorse Cube 3-Module Desktop Power Rack for 500 Series Radial Modules
      Circuit Type Connection buss from modules to connectors
      Format Desktop
      Number of Slots 3
      Input Connectors 3 x balanced XLR male, 3 x ¼" TRS
      Output Connectors 3 x balanced XLR male, 3 x ¼" TRS
      Compatibility Adheres to the Whos-Doc and VPR alliance
      Electrical
      Current Available: 500 mA
      Average: 166 mA per slot
      Card Slot Impedance: Module dependent
      Connection Ground: Chassis
      PSU: Locking 4-pin XLR female on cable
      Wiring XLR Pin: AES Standard: pin-1 ground, pin-2 (+), pin-3 (-)
      Power Supply External 100 to 240 VAC with 48 V phantom on all channels
      Mechanical
      Operating Conditions For indoor use at temperatures from 41 to 104°F (5 to 40°C)
      Dimensions 7.50 x 6.25 x 7.25" (19.05 x 15.88 x 18.42 cm) (W x H x L)
      Weight 5.4 lb (2.5 kg)
      Packaging Info
      Box Dimensions (LxWxH) 12.3 x 9.4 x 9.1"
    • Heritage Audio '73 Junior API 500 Series Microphone Preamplifier Module
      Input Impedance Microphone
      HI: 1200 Ω minimum
      LO: 300 Ω minimum

      Line: 10 kΩ bridging, Carnhill transformer balanced and floating
      DI: Greater than 2 MΩ, unbalanced
      Output Impedance Less than 75 Ω,
      Transformer balanced and floating to drive a load of 600 Ω
      Maximum Output Greater than +26 dBm into 600 Ω
      THD Less than 0.025% at 1,000 Hz
      Less than 0.05% at 100 Hz
      Frequency Response 20 Hz (+0.3 dB) to 20,000 Hz (-0.2 dB)
      Maximum Gain Slightly greater than 80 dB
      Noise Less than -100 dBm
      Power Consumption 88 mA per rail at ±16 VDC
      Dimensions (W x D x H) 1.50 x 6.89 x 5.32" (3.81 x 17.5 x 13.5 cm)
      Weight 1.3 lb (0.6 kg)
      Packaging Info
      Box Dimensions (LxWxH) 10.5 x 8.3 x 4.1"
    • Rupert Neve Designs 517 - DI/Preamp/Compressor with Variphase (500 Series Module)
      Number of Channels Single
      Inputs 1 x XLR (on chassis)
      1 x 1/4" TRS Instrument (on module)
      Outputs 1 x XLR (on chassis)
      1 x 1/4" TRS Passive Thru (on module)
      Maximum Output +23 dBu, 20 Hz to 40 kHz
      Frequency Response 10 Hz to 160 kHz, -0.2/-3.0 dB main output, no load
      Noise Measured at main output, 22Hz to 22kHz unweighted, 150Ω termination
      >-100 dBu, gain at unity
      >-62 dBu, gain @ 66 dB
      EIN: > -128 dBu
      Noise Factor: 1.5dB
      Gain Range Microphone: 66 dB in 6 dB steps
      Instrument: 30 dB
      THD + N Main Output: >0.001%, @ 1 kHz, +20 dBu output
      Main Output: >0.002%, @ 20 Hz, +20 dBu output
      Silk Engaged: > 0.2% second harmonic
      Crosstalk >-90 dB @ 15 kHz, channel to channel
      Phantom Power +48VDC, +/-1%
      Power Requirements From chassis
      Dimensions Single rack space 500 Series module
      Packaging Info
      Box Dimensions (LxWxH) 10.1 x 7.8 x 3.1"
    • Solid State Logic SSL E Series EQ Module for API 500 Series Rack
      Packaging Info
      Box Dimensions (LxWxH) 11.0 x 7.3 x 2.8"
