User manual Rane MA 3 Amplifier MA 3

Operating instructions and pdf manual for use - Rane MA 3 Amplifier MA 3 User manual, User manual Rane MA 3 Amplifier MA 3, Rane, MA, 3, Amplifier, MA, 3, Video


User manual for Rane MA 3 Amplifier MA 3

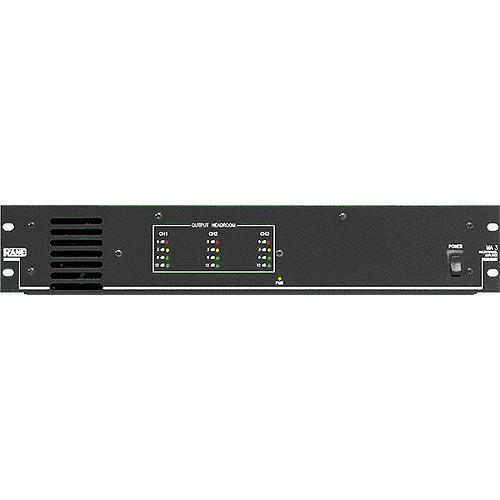

Rane  MA 3 Amplifier MA 3
  • Manufacturer: Rane
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Standard Amplifiers
  • Safety instructions
  • Startup and operation of the standard amplifiers
  • Tips for setting up your Rane
  • Settings and expert assistance
  • Contact Rane service
  • Troubleshooting
  • Warranty information
  • Price: 599 USD
We recommend checking out our discussion threads on the Rane MA 3 Amplifier MA 3, which address similar problems with connecting and setting up Standard Amplifiers Rane.



User manual for the Rane MA 3 Amplifier MA 3

The user manual for the Rane MA 3 Amplifier MA 3 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Standard Amplifiers.

The Rane MA 3 is a three-channel amplifier designed to operate in commercial environments, such as paging, foreground music and background music distribution. Up to three optional 40 watt, 70.7 volt or 100 volt constant-voltage audio transformers may be installed inside the amplifier, eliminating the need for external wiring or transformer mounting.
If you own a Rane standard amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rane MA 3 Amplifier MA 3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Rane MA 3 Amplifier MA 3:
Power Rating Each channel delivers 60 watts of continuous average power into 4 ohms, and 40 watts into 8 ohms (all channels driven)
Damping Factor 80 (minimum) into 8 ohms @ 1kHz
Input Sensitivity Off to 0dBu
Input Impedance 20k ohm each leg
Gain 27dB
Frequency Response 20Hz to 20kHz
Signal-to-Noise Ratio 90dBr, A weighted
Total Harmonic Distortion (THD) 0.05% - 1kHz, 40W, 8 ohms
Input Connections 3 x Euroblock
Output Connectors 3 x Euroblock
Controls Front Panel Power switch
Controls (Rear) 3 x Rotary level control
Fan speed switch
Indicators 1 x 4 LED level metering per channel
Cooling Two speed fan, sealed tunnel
Power Consumption 33.6W @ idle
Dimensions 19" x 9" x 3 1/2"
Weight 30 lbs
Specialties Three independent amplifier channels to suit a wide range of applications
Packaging Info
Package Weight 24.0 lb
Box Dimensions (LxWxH) 23.0 x 16.0 x 11.0"
The user manual for the Rane MA 3 Amplifier MA 3 can be downloaded in .pdf format if it did not come with your new standard amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rane users keep a unique electronic library for Rane standard amplifierss, where you can use our link to download the user manual for the Rane MA 3 Amplifier MA 3.

The user manual lists all of the functions of the Rane MA 3 Amplifier MA 3, all the basic and advanced features and tells you how to use the standard amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rane service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rane MA 3 Amplifier MA 3. User manuals are also available on the Rane website under Pro Audio - Installation Sound - Standard Amplifiers.
