User manual Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S

Operating instructions and pdf manual for use - Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S User manual, User manual Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S, Rane, MLM82S, 8-Channel, Microphone, Line, Mixer, MLM, 82S,


User manual for Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S
  • Manufacturer: Rane
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your Rane
  • Settings and expert assistance
  • Contact Rane service
  • Troubleshooting
  • Warranty information
  • Price: 439 USD
We recommend checking out our discussion threads on the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S, which address similar problems with connecting and setting up Analog Recording Mixers Rane.



User manual for the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S

The user manual for the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

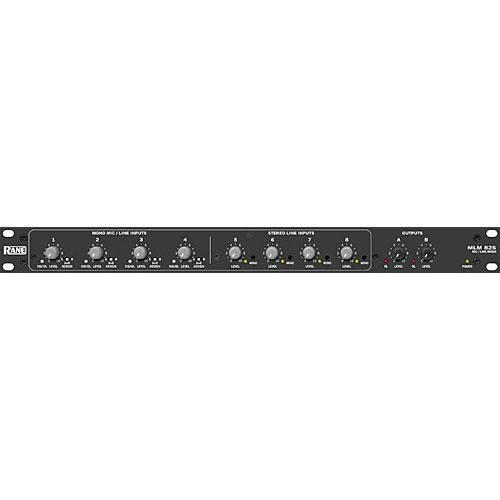

The Rane MLM82S Mic/Line Mixer is convenient, as it's cost effective and flexible. The mixer features 4 balanced XLR Mic / Line level (switchable) inputs and 4 stereo paired 1/4" TRS phone balanced line inputs. The Mixers stereo inputs (ch 5-8) feature mono switches for mono operation. The stereo inputs can be assigned to either A or B outputs (left/right) for isolating and routing channels to specific destinations. The A/B stereo outputs consist of, standard stereo paired 1/4" TRS phone jacks. Channels 1 through 4 are capable of +15VDC phantom power.
If you own a Rane analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82SDownload user manual for Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S
(PDF file, 0.86 MB)
Additional parameters of the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S:
Inputs Active Balanced
Mic/Line: XLR female (ch 1-4)
Stereo Paired Line: 1/4" TRS Phone (ch 5-8)
Output Active Balanced
Stereo Paired (L/R) XLR male
Monitor/Headphone Out No
Impedance Mic/Line Inputs: 1k / 96k
Stereo Line Inputs: 20 kohms
Output Impedance: 200/100 ohms
Gain Mic Gain Range: off to +60
Line Gain Range: off to +20
Stereo Line Gain Range: off to +12
Output Gain Range: off to +6
THD & Noise Mic/Line Inputs: 0.02dB Gain=40 dB, +4@ 1kHz, 80Hz BW
Stereo Line Inputs: 0.007 +4dBu at 1kHz, 80kHz BW
Frequency Response Mic/Line Inputs: 30Hz - 35kHz -3dB
Stereo Line Inputs: 10Hz - 35kHz -3dB
Metering Signal/Overload LED
Power LED
Output Overload LED
Controls Rotary Potentiometers
Mono Mic/Line Channels 1-4
Stereo Line Inputs 5-8
A/B Outputs
A/B Assign Switches
Mono Mic/Line Inputs 1-4
Mono Switches
Stereo Line Inputs 5-8
Mic/Line Switches (rear)
Mono Mic/Line Inputs 1-4
Phantom Power switch (rear)
Phantom Power +15VDC
Power 18VAC w/center tap 600mA current
Dimensions (HxWxD) 1.75 x 19 x 5.3" (4.4 x 48.3 x 13.3cm)
Weight 4 lbs (3kg)
Packaging Info
Package Weight 5.8 lb
Box Dimensions (LxWxH) 20.0 x 13.6 x 4.2"
The user manual for the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rane users keep a unique electronic library for Rane analog recording mixerss, where you can use our link to download the user manual for the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S.

The user manual lists all of the functions of the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rane service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rane MLM82S 8-Channel Microphone and Line Mixer MLM 82S. User manuals are also available on the Rane website under Pro Audio - Recording - Analog Recording Mixers.
