User manual for the RDL ST-VP2 Automatic Ducking Module ST-VP2

The user manual for the RDL ST-VP2 Automatic Ducking Module ST-VP2 provides necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.

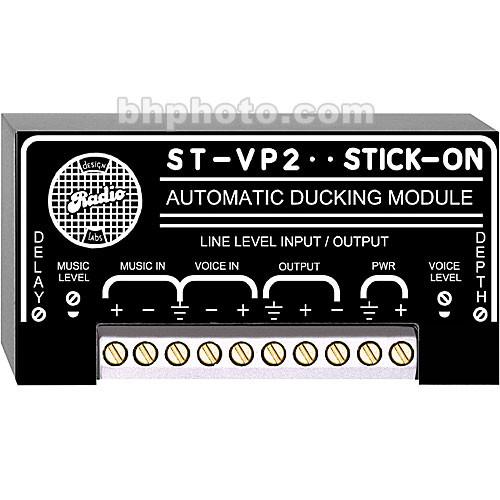

The ST-VP2 Automatic Ducking Module from RDL is a device designed to cut out music when a page is played over your audio system and automatically fade the music back into play when the page is finished. Use of the unit requires a line-level music source from a receiver, satellite decoder, tape, or CD source. The line-level voice source may be provided from a telephone paging system at line level or from a microphone that has been preamplifed to line level.

LEDs facilitate setup of the unit and also provide visual cues related to the correct operating levels of each of the (2) inputs. The music input includes an AGC compressor that maintains a consistent level of audio from varying music sources. This design feature ensures that the volume level does not change randomly and that voice-overs are not masked during paging.
If you own a RDL dynamics processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the RDL ST-VP2 Automatic Ducking Module ST-VP2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RDL ST-VP2 Automatic Ducking Module ST-VP2:
Construction Plastic, metal
Finish Black
Input Inputs: (2) balanced line level (or unbalanced)
Input impedance: 20KΩ
Input signal range: -20 dBu to +18 dBu
Output 0dBu balanced (into 600Ω)
Gain Adjustable using multi-turn potentiometer
THD & Noise < 0.02% (20Hz to 20kHz, no compression)
Frequency Response 25Hz to 20kHz (+/- 1dB)
Noise < -70dB
Indicators (1) LED indicating proper music level
(1) LED indicating proper voice level
AGC Action 18dB range
6dB compression at normal input level
Attack Time 25 ms
Release Time 2.5 seconds
Voice Trigger Level 24dB below operating level
Music Fade Depth Adjustable 0dB to -25dB, or off
Music Recovery Delay Adjustable 2 to 4 seconds
Power Ground-referenced, 24 to 33VDC @ 35mA
Dimensions Not specified by manufacturer
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 5.0 x 3.0 x 3.0"
