User manual Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406

Operating instructions and pdf manual for use - Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406 User manual, User manual Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406, Rear, View, Safety, RVS-091406, Wireless, Backup,


User manual for Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406
  • Manufacturer: Rear View Safety
  • Basic description and contents of package
  • Product classification: Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras
  • Safety instructions
  • Startup and operation of the back-up cameras
  • Tips for setting up your Rear View Safety
  • Settings and expert assistance
  • Contact Rear View Safety service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD
We recommend checking out our discussion threads on the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406, which address similar problems with connecting and setting up Back-Up Cameras Rear View Safety.



User manual for the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406

The user manual for the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406 provides necessary instructions for the proper use of the product Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.

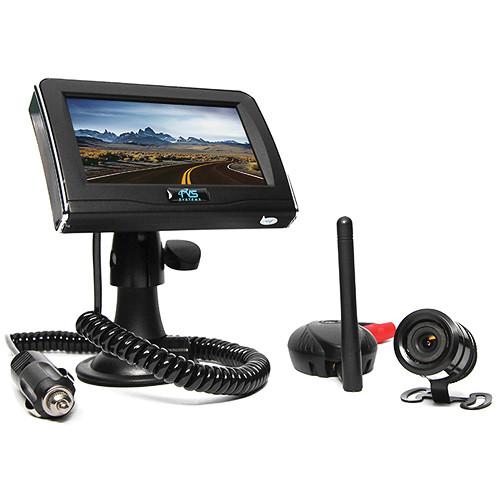

The RVS-091406 Wireless Backup Camera System with Cigarette Lighter Adapter from Rear View Safety includes a 4.3" TFT LCD monitor and a weatherproof color camera with IR LEDs. The display features a resolution of 1440 x 234 and an aspect ratio of 16:9. The monitor connects directly to the cigarette lighter socket of your car using a cigarette adapter and comes with a suction cup for ease of mounting.
If you own a Rear View Safety back-up cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406:
Specifications
    Monitor
    Panel Type TFT LCD
    Screen Size 4.3" (10.9 cm)
    Dot Resolution H x V: 1440 x 234
    Display Format 16:9
    Brightness Display: 350 cd/m²
    Viewing Angle 90° minimum
    Video Input 1-channel
    Video Source 1 Vpp, 75 ohms
    Video System Auto NTSC / PAL
    Sync System Internal
    Impact Rating 5G
    Power Supply 12 to 24 VDC (±10%)
    Power Consumption 5 W
    Operating Temperature 50 to 149°F (10 to 65°C)
    Dimensions 5.0 x 4.0 x 1.0" (13.0 x 10.2 x 2.5 cm)
    Weight 14.1 oz / 400.0 g
    Camera
    Resolution 420 TVL
    PAL (H x V): 500 x 582
    NTSC (H x V): 510 x 492
    Lens 2.1 mm
    Viewing Angle 130°
    Picture Elements 250,000
    Illumination 0 lux (IR on)
    Gamma Correction r=0.45 to 1.0
    Sync System Internal
    Number of IR LEDs and Range LEDs: 9
    Range: 30' (9 m)
    Power Source 12 to 24 VDC (±10%)
    S/N Ratio >48 dB
    Iris Electronic: 1/50, 1/60 to 1/100,000 sec
    IR Switch Control ACDS automatic control
    Video Output 1 Vpp, 75 ohms
    Vibration/Impact Rating 10G / 100G
    Operating Temperature 14 to 122°F (-10 to 50°C)
    Storage Temperature 77 to 140°F (-25 to 60°C)
    Operating Humidity Storage/Operating: RH 95% maximum
    IP Rating IP68
    Dimensions (Ø x H) 1.2 x 1.5" (3.0 x 3.9 cm)
    System
    Wireless Range 70' (21 m)
    Impact Rating 10G
    Packaging Info
    Package Weight 1.65 lb
    Box Dimensions (LxWxH) 9.6 x 7.6 x 3.2"
    The user manual for the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406 can be downloaded in .pdf format if it did not come with your new back-up cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rear View Safety users keep a unique electronic library for Rear View Safety back-up camerass, where you can use our link to download the user manual for the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406.

    The user manual lists all of the functions of the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406, all the basic and advanced features and tells you how to use the back-up cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rear View Safety service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rear View Safety RVS-091406 Wireless Backup Camera RVS-091406. User manuals are also available on the Rear View Safety website under Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.
