User manual Ricoh GR II Digital Camera 175843

Operating instructions and pdf manual for use - Ricoh GR II Digital Camera 175843 User manual, User manual Ricoh GR II Digital Camera 175843, Ricoh, GR, II, Digital, Camera, 175843, Video


User manual for Ricoh GR II Digital Camera 175843

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Ricoh  GR II Digital Camera 175843
  • Manufacturer: Ricoh
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Point & Shoot Cameras
  • Safety instructions
  • Startup and operation of the point & shoot cameras
  • Tips for setting up your Ricoh
  • Settings and expert assistance
  • Contact Ricoh service
  • Troubleshooting
  • Warranty information
  • Price: 559 USD

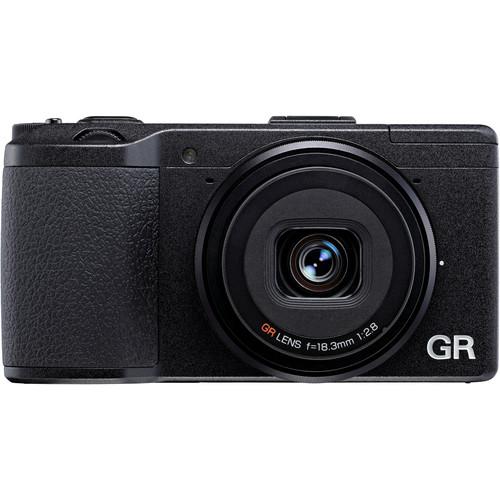

Ricoh  GR II Digital Camera 175843 Ricoh  GR II Digital Camera 175843
Click to enlarge image

We recommend checking out our discussion threads on the Ricoh GR II Digital Camera 175843, which address similar problems with connecting and setting up Point & Shoot Cameras Ricoh.



User manual for the Ricoh GR II Digital Camera 175843

The user manual for the Ricoh GR II Digital Camera 175843 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Point & Shoot Cameras.

The first GR-series camera to feature built-in Wi-Fi and NFC connectivity, the GR II Digital Camera from Ricoh continues the legacy of its predecessor with a large 16.2 MP APS-C CMOS sensor, providing high-resolution images with low noise at up to ISO 25600. By omitting the optical low-pass filter, this sensor is able to squeeze out sharper images with rich colors and when combined with the GR ENGINE V it operates quickly and efficiently in creating images. On top of this is a Ricoh GR 18.3mm f/2.8 lens, equivalent to 28mm in 35mm terms, which will assist in creating sharp images in all lighting conditions.

Benefitting from the GR ENGINE V is the High-Speed AF system, locking focus in just 0.2 seconds. The camera will also start up in just 1 second and offers continuous shooting at 4 fps. Full HD 1080p video recording is possible at up to 30 fps with autofocus. And, it has wireless flash control with the built-in flash unit which allows users to remotely operate their AF360FGZII and AF540FGZII flashes as slave units.

The GR is designed to be compact with a portable magnesium alloy body. It maintains a classic GR styling with a solid hand grip for comfort and physical control buttons for natural operation. This includes a dedicated AF button and aperture preview button. The camera can also capture in either JPEG or DNG RAW images for full control over post-processing.
If you own a Ricoh point & shoot cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ricoh GR II Digital Camera 175843 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ricoh GR II Digital Camera 175843:
Imaging
Pixels Actual: 16.9 Megapixel
Effective: 16.2 Megapixel
Sensor APS-C CMOS
Bit Depth 12-bit
File Formats Still Images: DNG, JPEG
Movies: MPEG-4 AVC/H.264
Audio: WAV
Max Resolution 16 MP: 4928 x 3264
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image Stabilization None
Color Spaces sRGB, Adobe RGB
Optics
Lens 7 elements in 5 groups
2 Aspherical
EFL: 18.3mm (35 mm equivalent: 28mm)
Aperture: f/2.8 to f/16
Filter Thread 49mm

with optional GH-3 Hood & Adapter

Zoom None
Focus Range Normal: 11.76" (29.87 cm) - Infinity
Macro: 3.9" (9.91 cm) - Infinity
Exposure Control
ISO Sensitivity Auto, 100-25600
Shutter Type: Electronic & Mechanical
Speed: 1/4000 - 30 seconds
Exposure Metering Center-weighted, Multi, Spot
Exposure Modes Modes: Aperture Priority, Auto, Bulb, Manual, Movie, My Settings, Program, Shutter Priority, Shutter/Aperture Priority, Time
Metering Range: EV 1.8 - EV 17.8
Compensation: -4 EV to +4 EV (in 1/3 EV steps)
White Balance Modes Auto, CTE, Cloudy, Color Temperature, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (Warm White), Incandescent, Incandescent 2, Manual, Multi-P AUTO, Outdoors, Shade
Burst Rate Up to 4 fps
Interval Recording Yes
Flash
Flash Modes Auto
Auto/Red-eye Reduction
Flash On
Flash On w/ Red-eye Reduction
Manual
Slow Sync
Slow Sync/Red-eye Reduction
Wireless
Built-in Flash Yes
Maximum Effective Flash Range 3.3 - 9.8' (1.01 - 2.99 m)
External Flash Connection Hot Shoe
Memory
Built-in Memory 54 MB
Memory Card Type SD
SDHC
SDXC
Recording
Video Recording Yes
Resolution 1920 x 1080p: 30 fps, 25 fps, 24 fps
1280 x 720p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
640 x 480p: 30 fps, 25 fps, 24 fps
Video
Video Clip Length Up to 4 GB or 25 Minutes
Audio Recording Built-in Mic: With Video, Mono
Viewfinder/Display
Viewfinder Type None
Screen 3.0" LCD (1,230,000 pixels)
Screen Coverage 100%
Connectivity/System Requirements
Connectivity AV / USB Multi, HDMI D (Micro)
Wi-Fi Yes, 802.11b/g/n built-in
GPS No
Environmental
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Waterproofing None
Power
Battery 1x DB-65 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh
AC Power Adapter AC-5C AC Adapter (Optional)
Physical
Dimensions (WxHxD) 4.6 x 2.5 x 1.4" / 11.7 x 6.3 x 3.6 cm
Weight 7.80 oz / 221 g without battery or memory card
Packaging Info
Package Weight 1.45 lb
Box Dimensions (LxWxH) 7.0 x 5.5 x 3.8"
The user manual for the Ricoh GR II Digital Camera 175843 can be downloaded in .pdf format if it did not come with your new point & shoot cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ricoh users keep a unique electronic library for Ricoh point & shoot camerass, where you can use our link to download the user manual for the Ricoh GR II Digital Camera 175843.

The user manual lists all of the functions of the Ricoh GR II Digital Camera 175843, all the basic and advanced features and tells you how to use the point & shoot cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ricoh service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ricoh GR II Digital Camera 175843. User manuals are also available on the Ricoh website under Photography - Digital Cameras - Point & Shoot Cameras.
