User manual for the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC

The user manual for the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

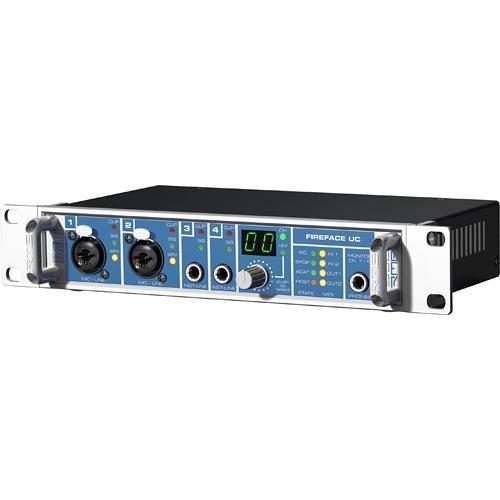

The Fireface UC from RME is a compact USB 2.0 audio and MIDI interface for Mac and Windows computers. It offers the highest number of inputs and outputs (18 x 18) of any compact USB audio interface, and its low latency capabilities out perform the most advanced FireWire 400 interfaces available. It features on-board DSP and deep integration with the included TotalMix software, which gives you massive power for signal routing and an incredibly flexible stand-alone operational mode.
If you own a RME audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUCDownload user manual for RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC
(PDF file, 1.07 MB)
Additional parameters of the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC:
Inputs Analog:
6 x 1/4" TRS (4 x Line, 2 x Line/Instrument)
2 x XLR/TRS Combo Connectors (2 x Mic/Line)
All servo-balanced

Digital:
1 x ADAT optical or S/PDIF optical
1 x S/PDIF coaxial (AES/EBU compatible)

Outputs Analog:
6 x 1/4" TRS, servo-balanced, DC-coupled signal path
1 x 1/4" TRS Unbalanced (Headphones)

Digital:
1 x ADAT optical or S/PDIF optical
1 x S/PDIF coaxial (AES/EBU compatible)

MIDI 2 x MIDI I/O via breakout cable (4 x 5-pin DIN jacks), for 32 channels low jitter hi-speed MIDI
Connectivity USB 2.0 (Compatible with standard USB)
Drivers Windows:
XP (from SP2), Vista, Vista 64, 7: Full ASIO multi-client operation of WDM and ASIO 2.0. WDM (DirectSound) with stereo and multi-Channel support

Mac:
OS X (10.5 or higher) Intel: Core Audio, Core MIDI

Dynamic Range Analog:
110 dB RMS unweighted, 113 dBA

Digital:
110 dB RMS unweighted, 113 dBA (unmuted)

Audio THD Analog:
< -100 dB (< 0.001 %)

Digital:
-100 dB (0.001 %)

Audio THD + Noise Analog:
< -98 dB (< 0.0012 %)

Digital:
-96 dB (0.0015 %)

Crosstalk > 110 dB
Sample Rate Internally:
32, 44.1, 48, 64, 88.2 kHz, 96 kHz, 128, 176.4, 192 kHz

Externally:
28 kHz - 200 kHz

Frequency Response AD/DA: -0.1 dB: 5 Hz - 20.4 kHz (sf 44.1 kHz)
AD/DA: -0.5 dB: 1 Hz - 43.3 kHz (sf 96 kHz)
AD/DA: -1 dB: 1 Hz - 80 kHz (sf 192 kHz)
Power Supply External power supply (included)
Internal switching PSU, 100 - 240 V AC, 2 A, 24 Watts

Cannot be powered by USB port (no bus power)

Current at 12 Volt operating voltage: 910 mA (11 Watts)

Power Consumption 13 Watts (typical)
Dimensions With included rack ears:
10.5 x 1.73 x 6.5" (265 x 44 x 165mm)

Without rack ears/handles:
8.6 x 1.73 x 6.1" (218 x 44 x 155mm)

Weight 3.3 lbs (1.5 kg)
Packaging Info
Package Weight 4.95 lb
Box Dimensions (LxWxH) 13.7 x 7.6 x 3.5"
The user manual for the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other RME users keep a unique electronic library for RME audio interfaces & systemss, where you can use our link to download the user manual for the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC.

The user manual lists all of the functions of the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from RME service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the RME Fireface UC - 36 Channel USB Audio/MIDI Interface FFUC. User manuals are also available on the RME website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
