RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDAT
  • Manufacturer: RME
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your RME
  • Settings and expert assistance
  • Contact RME service
  • Troubleshooting
  • Warranty information
  • Price: 949 USD
We recommend checking out our discussion threads on the RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDAT, which address similar problems with connecting and setting up Audio Interfaces & Systems RME.



User manual for the RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDAT

The user manual for the RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDAT provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

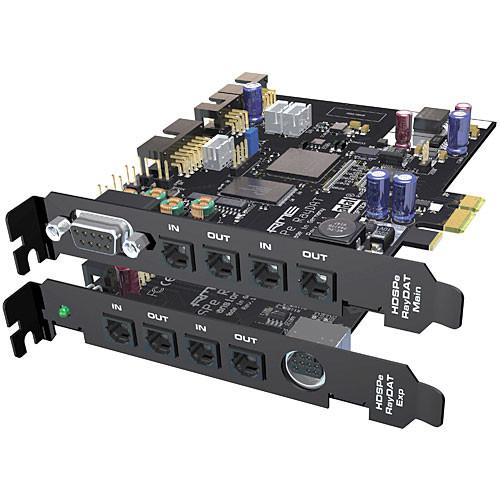

The HDSPe RayDAT from RME is a PCI express card system for Mac and Windows computers that's capable of handling 36 inputs and 36 outputs simultaneously. It provides 4 optical ADAT inputs and outputs, which support S/MUX technology making high-resolution 192 kHz recording and playback possible. It also features simultaneous operation of S/PDIF and AES/EBU ports, and two MIDI inputs and outputs on included breakout cables.
If you own a RME audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDAT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDATDownload user manual for RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDAT
(PDF file, 0.69 MB)
Additional parameters of the RME HDSPe RayDAT - 36 Channel Digital Audio & HDSP RAYDAT:
Card Type PCI Express
Inputs 4 x Optical ADAT (TOSLINK)
1 x Stereo S/PDIF (via 9-pin breakout cable)
1 x Stereo AES/EBU (via 9-pin breakout cable)
2 x MIDI In (via 9-pin breakout cable)
Outputs 4 x Optical ADAT (TOSLINK)
1 x Stereo S/PDIF (via 9-pin breakout cable)
1 x Stereo AES/EBU (via 9-pin breakout cable)
2 x MIDI Out (via 9-pin breakout cable)
Digital Connections AES/EBU:
2 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
High-sensitivity input stage (< 0.3 Vpp)
S/PDIF compatible (IEC 60958)
Accepts consumer and professional format, copy protection will be ignored
Lock range: 28 kHz - 200 kHz
Jitter suppression: > 30 dB (2.4 kHz)
Jitter when synced to input signal: < 1 ns

S/PDIF:
2 x RCA, transformer-balanced, according to IEC 60958
High-sensitivity input stage (< 0.3 Vpp)
AES/EBU compatible (AES3-1992)
Accepts Consumer and Professional format, copy protection will be ignored
Lock range: 28 kHz - 200 kHz
Jitter suppression: > 30 dB (2.4 kHz)
Jitter when synced to input signal: < 3 ns

ADAT Optical:
4 x TOSLINK, format according to Alesis specification
Standard: 32 channels 24 bit, up to 48 kHz
Double Speed (S/MUX): 16 channels 24 bit 96 kHz
Quad Speed (S/MUX4): 8 channels 24 bit 192 kHz
Bitclock PLL ensures perfect synchronization even in varispeed operation
Lock range: 31.5 kHz - 50 kHz
Jitter suppression: > 30 dB (2.4 kHz)
Jitter when synced to input signal: < 1 ns

Sample Rates Internal:
32, 44.1, 48, 64, 88.2, 96, 176.4, and 192 kHz

External:
28 - 200 kHz

Buffer Size 0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms
System Requirements Windows 2000 SP4 or higher

Mac OS X Intel (10.4.8 or higher)

PCI Express Interface: one free PCI Express slot, 1 Lane, version 1.1

Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 11.6 x 6.8 x 3.9"
