User manual for the Rolls ADB2 Active Direct Box ADB2
The user manual for the Rolls ADB2 Active Direct Box ADB2 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Direct Boxes.

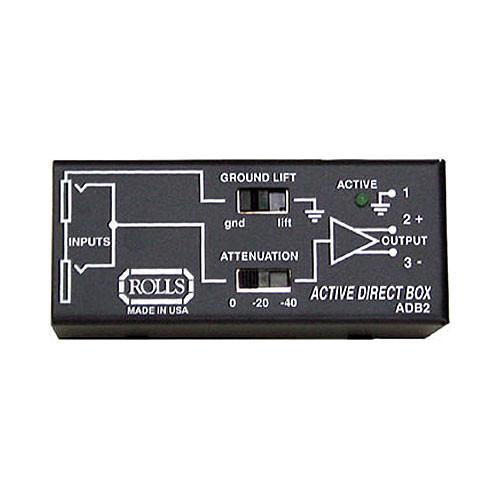

The ADB2 is designed for sending unbalanced signals (up to +40dB) to a mixing console or other professional input device. The unit has no transformer, so stray field pickup is nonexistent. The unit is powered by standard microphone phantom power from 9 - 48VDC and uses discrete low-noise differential drivers to make it very quiet. The unit has two 1/4" TS phone input jacks wired in parallel, a male XLR output jack, a ground lift switch and a three-position attenuator switch.
|
If you own a Rolls direct boxes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Rolls ADB2 Active Direct Box ADB2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Rolls ADB2 Active Direct Box ADB2:
| Input Connections | 2 x 1/4" TS phone (unbalanced) | | Output Connectors | 1 x XLR | | Input Level | -10 to +40dB | | Output Level | -10 to +2dB | | Frequency Response | 1Hz to 50kHz | | Noise | S/N: 100dB | | Power | 9 to 48V phantom power | | Dimensions (WxDxH) | 5" x 3 1/2" x 2" | | Weight | Not specified by manufacturer | | Specialties | Two 1/4" TS unbalanced input jacks wired together in parallel for connection to line or instrument level signals | | Package Weight | 0.54 lb | | Box Dimensions (LxWxH) | 8.5 x 5.0 x 2.5" | |
