User manual Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064

Operating instructions and pdf manual for use - Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064 User manual, User manual Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064, Samson, MDR1064, 10, Channel, Audio, Mixer, SAMDR1064,


User manual for Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064
  • Manufacturer: Samson
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Samson
  • Settings and expert assistance
  • Contact Samson service
  • Troubleshooting
  • Warranty information
  • Price: 115 USD
We recommend checking out our discussion threads on the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064, which address similar problems with connecting and setting up Sound Reinforcement Mixers Samson.



User manual for the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064

The user manual for the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

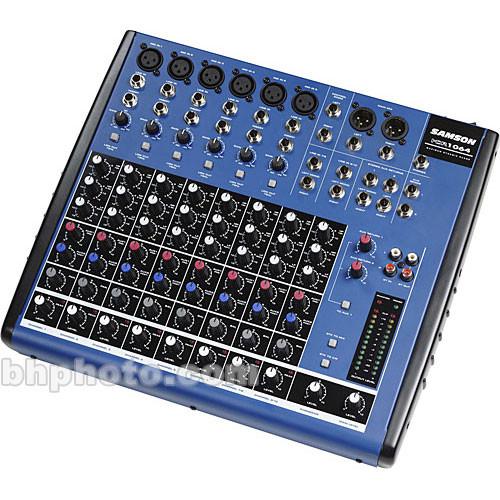

The Samson MDR1064 is a compact 10-channel audio mixer with a loaded feature set and an affordable price. The MDR1064 provides 6 mono channels with XLR mic and 1/4" phone line connectors. Channels 7/8 and 9/10 are stereo paired with 1/4" phone line connections. Additional features include 3 band EQ section on each input. The MDR1064 is an ideal choice for light sound reinforcement, project studio recording and video editing.
If you own a Samson sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064Download user manual for Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064
(PDF file, 2.9 MB)
Additional parameters of the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064:
Specifications
    Total # Of Inputs 10
    Mic/Line Inputs 6 Microphone: 3-pin Balanced XLR
    10 Line: 1/4" TRS Phone
    Stereo Line Inputs Channels 7/8 and 9/10: 1/4" Phone Line
    In-Line Inputs/Returns No
    AUX Sends 2 - 1/4" Phone
    AUX Returns 2 L/R 1/4" Phone
    Inserts Mono Inputs 1 - 6: 1/4" TRS Phone
    BUS (Group) Outputs Stereo output only
    2 Trk Master I/O Main Mix: L/R 3-pin XLR
    Main Mix: L/R 1/4" TRS Phone
    2T In: L/R RCA Phono
    2T Out: L/R RCA Phono
    ALT I/O No
    Monitor Outputs CR (Control Room): L/R 1/4" Phone
    EQ Section High Shelf - 12kHz +/- 15dB
    Mid Peaking - 2.5kHz +/-15dB
    Low Shelf - 80Hz +/- 15dB
    Low Cut Filter - 75Hz, 18dB/oct.
    Solo/Mute No
    Channel Level Control Rotary Controls
    Trim/Gain Control Rotary Controls
    Phantom Power +48V
    Metering 12 Point LED Meters
    Frequency Response 10Hz to 45kHz
    Dynamic Range not specified by manufacturer
    Signal-to-Noise Ratio 105dB
    Total Harmonic Distortion (THD) 0.005% @ 4dBu 1kHz +
    Power Supply USA/Canada 108 - 132V, 60Hz
    Dimensions 12.2 x 12.5 x 2.8" (310 x 318 x 70mm) (WxDxH)
    Weight 6.8 lbs (3.1 kg)
    Packaging Info
    Package Weight 10.0 lb
    Box Dimensions (LxWxH) 19.5 x 15.0 x 5.0"
    The user manual for the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064 can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samson users keep a unique electronic library for Samson sound reinforcement mixerss, where you can use our link to download the user manual for the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064.

    The user manual lists all of the functions of the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samson MDR1064 - 10 Channel Audio Mixer SAMDR1064. User manuals are also available on the Samson website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
